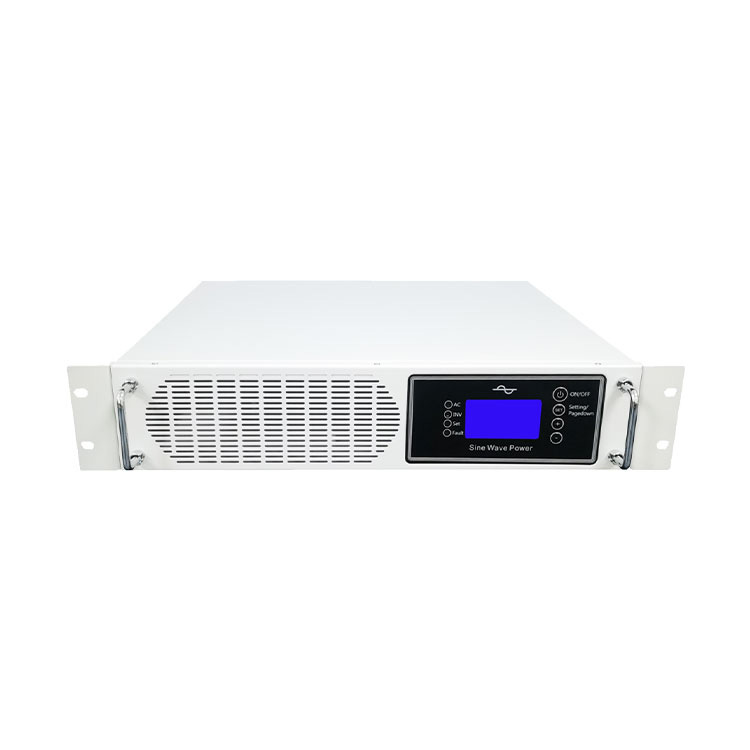

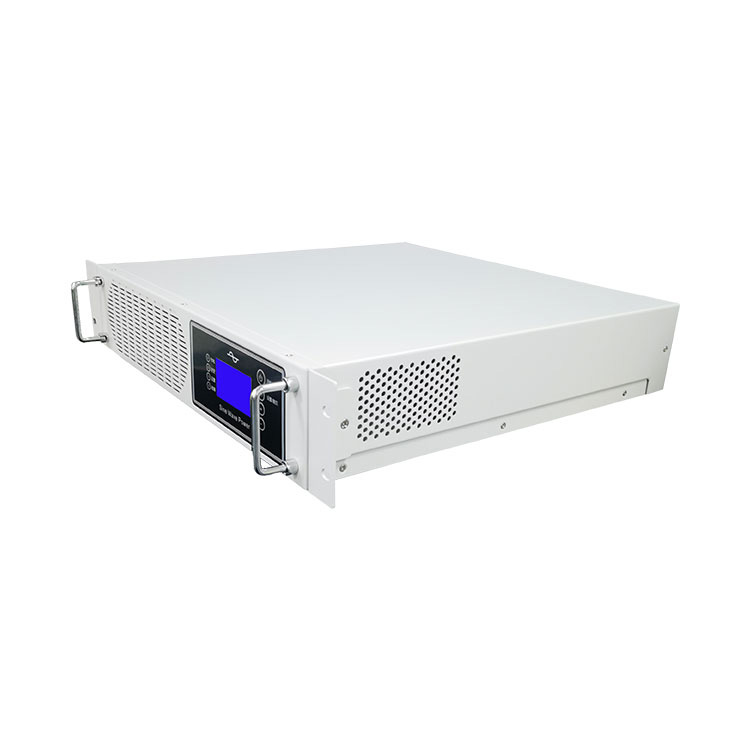

EVSPOWER 2KVA Single-Phase Modular Telecom Inverter 48V 220V Pure Sine Wave DC AC Power Inverter Rack Industrial Use 95%

1 / 5

EVSPOWER 2KVA Single-Phase Modular Telecom Inverter 48V 220V Pure Sine Wave DC AC Power Inverter Rack Industrial Use 95%

Send Inquiry

Product Description

2KVA Single-Phase Modular Telecom Inverter 48V 220V Pure Sine Wave DC AC Power Inverter Rack Industrial Use 95%

Key Features & Highlights

1High Energy Utilization System

The 48v to 220v Inverter features an efficiency of 0.95, ensuring the optimal use of input power to generate output power, making it highly efficient and cost-effective.

2Customizable LCD/LED Display

The versatile and user-friendly 48v pure sine wave inverter 50Hz 1KVA inverter is equipped with an LCD/LED display, which provides real-time information such as output voltage, current, and frequency, allowing users to monitor and adjust accordingly.

3Single Phase, 50Hz/60Hz Output

Suitable for a wide range of applications, the inverter operates on a single phase, offering output frequency options of 50Hz and 60Hz, catering to various power demands and regions.

448V Battery Compatibility

Designed to work with 48v batteries, the inverter is compatible with various types of 48v battery systems, making it a versatile choice for various industrial settings.

5Noise Level Control

With a noise level of <60dB, the inverter operates quietly, ensuring minimal disturbance during operation, making it ideal for use in quiet environments or residential spaces where noise levels need to be maintained.

Working noise is low and the efficiency is high, Power factor: 0.9

LED + LCD Display

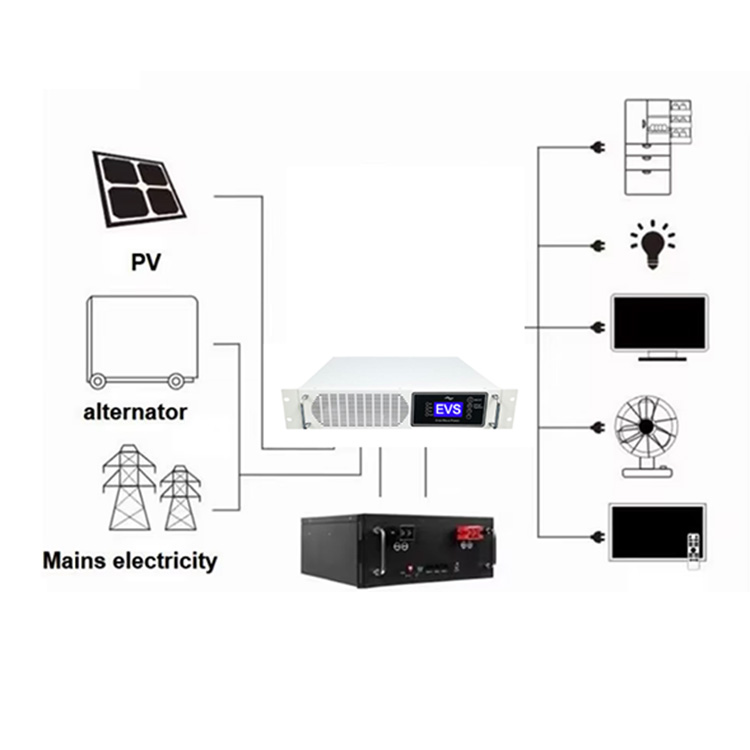

Multi-functional charging support (Mains or generator charging)

Pure sine wave output, UPS transfer time <5ms

Anti-interference design, Strong ability of resist concussion

Good load ability: Inductive, capacitive load and Hybrid load

Isolation circuit design

RS485 / WIFI

The service life can reach a decade

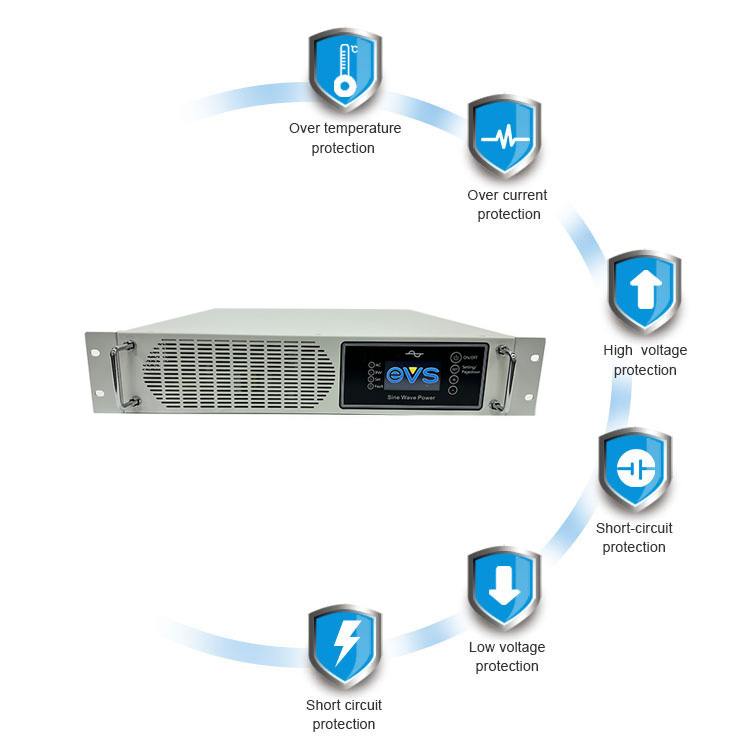

Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Input polarity reverse/Overload

Product Specifications

Model (A3)	1000	2000	3000	4000	5000	6000	8000	10000	12000
Rate capacity(VA)	1KW/1.25KVA	2KW/2.5KVA	3KW/3.75KVA	4KW/5KVA	5KW/6.25KVA	6KW/7.5KVA	8KW/10KVA	10KW/12.5KVA	12KW/15KVA
DC input
Input voltage	DC24V; DC48V; DC110V; DC220V;
Range voltage	DC20-32V; DC30-48V; DC90-144V; DC180-288V;
Communication input
Rated AC input voltage	AC220V/AC110V (mains power/generator)
AC input range	170-280Vac (UPS mode) factory default; 90-280Vac (APL electrical mode)
AC input frequency	50HZ/60HZ (optional in the backend)
UPS conversion time	<5ms (UPS mode) factory default; <13ms (electrical appliance mode)
AC Output
AC output voltage	220/230/240Vac±3% optional
AC output frequency	50±1HZ/60±1HZ (optional in the backend)
Output waveform	Pure sine wave (full voltage range)
Waveform distortion rate	≤3% (linear load)
Inverter peak efficiency	95%
Dynamic response	(0~100%)≤5%
Power factor	>0.9
Size(mm)	2U/19inch 48241488			2U/19inch 48244588			3U/19inch 482445132
Weight (kg)	9	9	10	12	12	12	14	15	16
Communication method	Standard configuration: RS485 (communication modes such as RS232/WIFI/GPRS/CAN can be customized)
protection grade	IP20 / Customizable

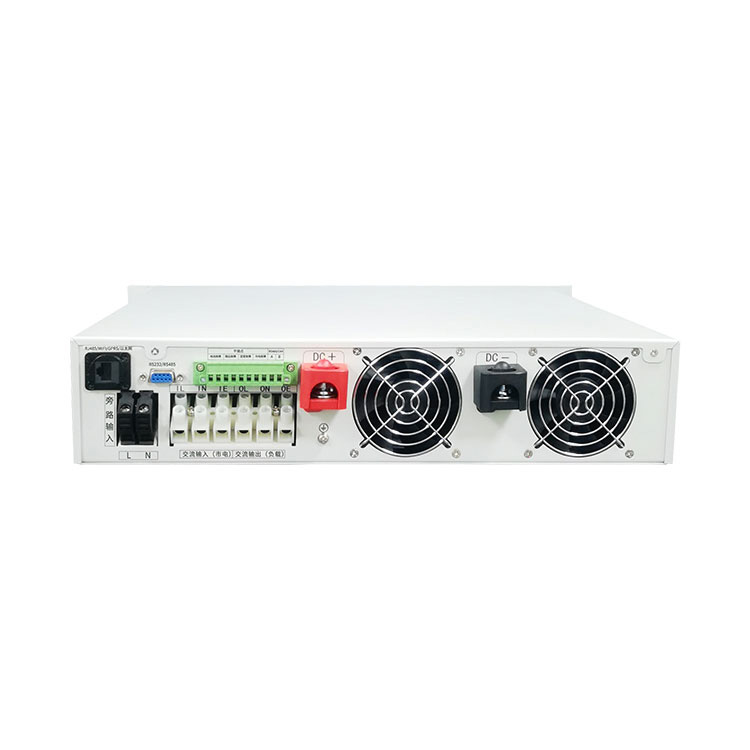

Standard configuration instructions	1 AC input, 1 DC input, 1 AC output, RS485 interface
Optional Unit	1: Fault dry contact; 2: External switch box; 3: External display box; 4: RS232; 5: WIFI module; 6: GPRS module; 7: Ethernet module; 8: CAN communication; 9: Bypass input;
Others	DC24V/48V/110V/220V models are standard products, while DC12/36/60/72/96/192/240V models are customized products

2KVA Single-Phase Modular Telecom Inverter 48V 220V Pure Sine Wave DC AC Power Inverter Rack Industrial Use 95%

Hot Sale

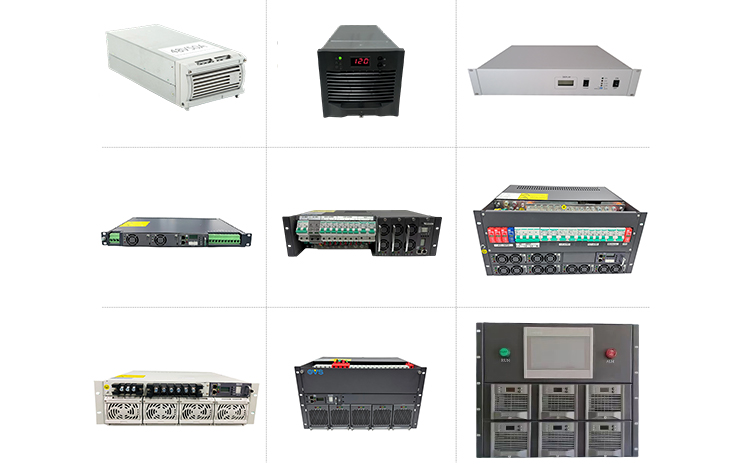

Hot Sale Inverter

Product Details

2KVA Single-Phase Modular Telecom Inverter 48V 220V Pure Sine Wave DC AC Power Inverter Rack Industrial Use 95%

Frequently Asked Questions

Q1: What is the peak efficiency of this pure sine wave inverter?

A1: The inverter features a peak efficiency of up to 95%, ensuring the optimal use of input power and reducing energy costs in industrial applications.

Q2: Which battery input voltages are standard and customizable?

A2: Standard models support DC 24V, 48V, 110V, and 220V battery systems. Customized products can be ordered for DC 12V, 36V, 60V, 72V, 96V, 192V, and 240V configurations.

Q3: How fast does the inverter switch during power conversion?

A3: The inverter features an ultra-fast UPS conversion time of less than 5ms under the factory default UPS mode, and less than 13ms under the electrical appliance mode.

Q4: What communication options are supported by the system?

A4: The standard configuration includes an RS485 interface. Customized communication modules including RS232, WIFI, GPRS, Ethernet, and CAN are also available.

Q5: What protective mechanisms are built into the device?

A5: Comprehensive protection is included: Battery Low Alarm, Battery Shut Down, Over Voltage, Over Temperature, Output Short Circuit, Input Polarity Reverse, and Overload protection.

Q6: Is this inverter suitable for noise-sensitive settings?

A6: Yes, the working noise level is controlled below 60dB, allowing for quiet operation and minimal disturbance in quiet industrial or residential environments.
