The 48v pure sine wave inverter features an efficiency of 0.95, ensuring the optimal use of input power to generate output power, making it highly efficient and cost-effective.

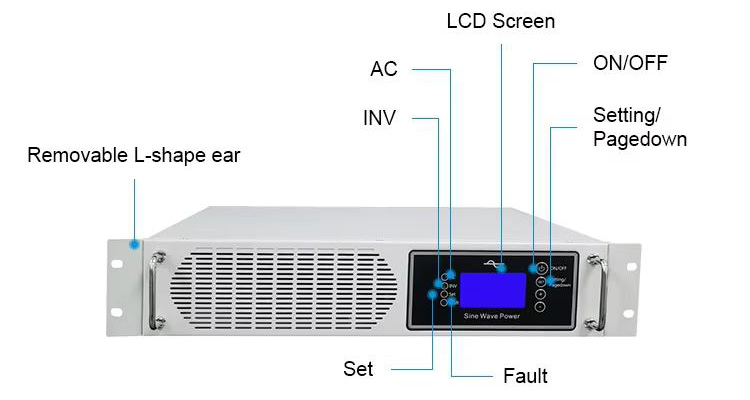

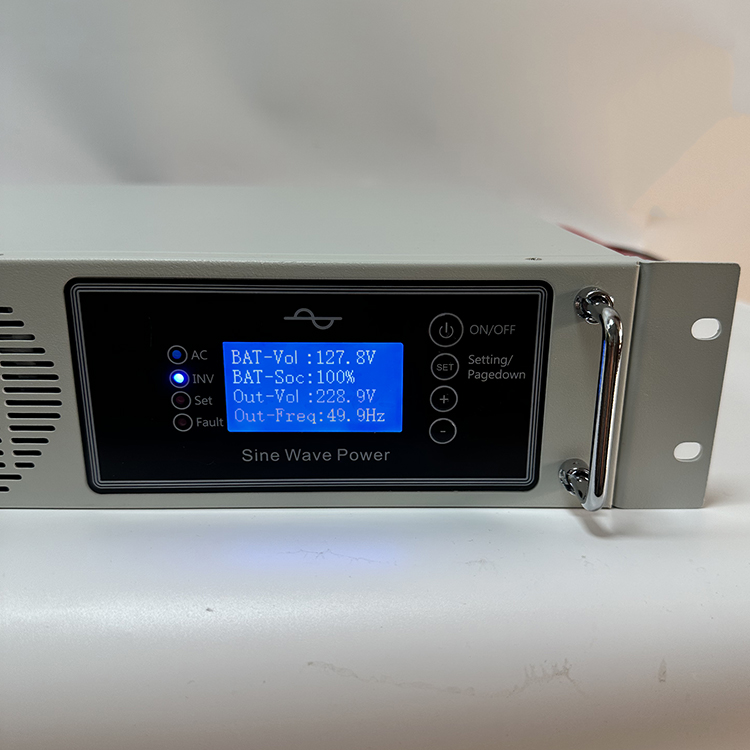

The versatile and user-friendly 48v pure sine wave inverter 50Hz 1KVA inverter is equipped with an LCD/LED display, which provides real-time information such as output voltage, current, and frequency, allowing users to monitor and adjust accordingly.
Suitable for a wide range of applications, the inverter operates on a single phase, offering output frequency options of 50Hz and 60Hz, catering to various power demands and regions.
Designed to work with 48v batteries, the inverter is compatible with various types of 48v battery systems, making it a versatile choice for various industrial settings.
With a noise level of <60dB, the inverter operates quietly, ensuring minimal disturbance during operation, making it ideal for use in quiet environments or residential spaces where noise levels need to be maintained.
| Model (EVS-A3) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Rate capacity(VA) | 1KW/1.25KVA | 2KW/2.5KVA | 3KW/3.75KVA | 4KW/5KVA | 5KW/6.25KVA | 6KW/7.5KVA | 8KW/10KVA | 10KW/12.5KVA | 12KW/15KVA |
| DC input | |||||||||
| Input voltage | DC24V; DC48V; DC110V; DC220V; | ||||||||
| Range voltage | DC20-32V; DC30-48V; DC90-144V; DC180-288V; | ||||||||
| Communication input | |||||||||
| Rated AC input voltage | AC220V/AC110V (mains power/generator) | ||||||||
| AC input range | 170-280Vac (UPS mode) factory default; 90-280Vac (APL electrical mode) | ||||||||
| AC input frequency | 50HZ/60HZ (optional in the backend) | ||||||||
| UPS conversion time | <5ms (UPS mode) factory default; <13ms (electrical appliance mode) | ||||||||
| AC Output | |||||||||
| AC output voltage | 220/230/240Vac±3% optional | ||||||||
| AC output frequency | 50±1HZ/60±1HZ (optional in the backend) | ||||||||
| Output waveform | Pure sine wave (full voltage range) | ||||||||
| Waveform distortion rate | ≤3% (linear load) | ||||||||
| Inverter peak efficiency | 95% | ||||||||
| Dynamic response | (0~100%)≤5% | ||||||||
| Power factor | >0.9 | ||||||||

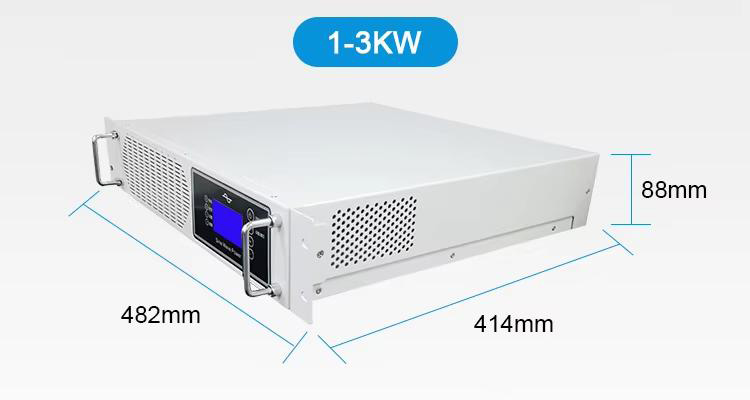

| Size(mm) | 2U/19inch 482*414*88 |
2U/19inch 482*445*88 |
3U/19inch 482*445*132 |
||||||
| Weight (kg) | 9 | 9 | 10 | 12 | 12 | 12 | 14 | 15 | 16 |
| Communication method | Standard configuration: RS485 (communication modes such as RS232/WIFI/GPRS/CAN can be customized) | ||||||||
| protection grade | IP20 / Customizable | ||||||||

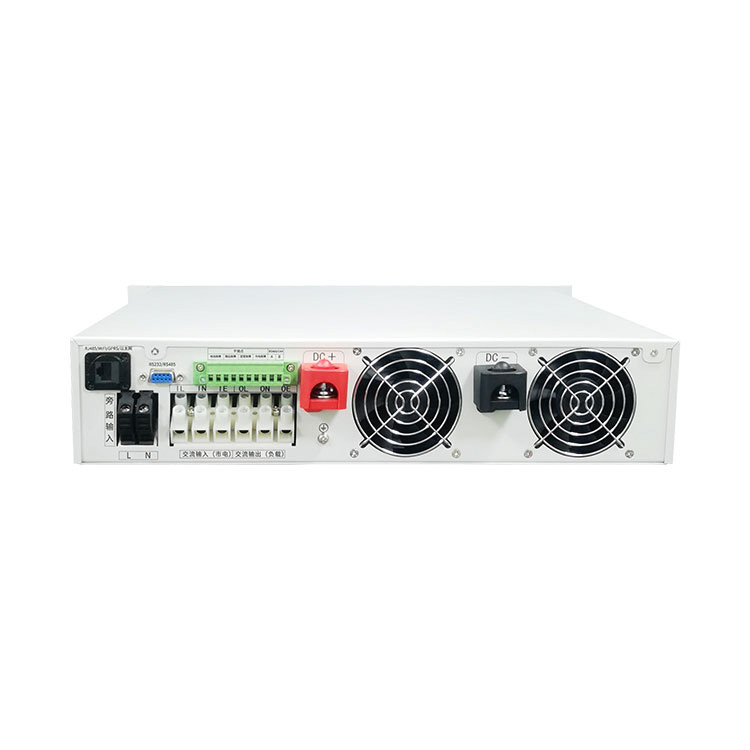

| Standard configuration instructions | 1 AC input, 1 DC input, 1 AC output, RS485 interface | ||||||||
| Optional Unit | 1: Fault dry contact; 2: External switch box; 3: External display box; 4: RS232; 5: WIFI module; 6: GPRS module; 7: Ethernet module; 8: CAN communication; 9: Bypass input; | ||||||||
| Others | DC24V/48V/110V/220V models are standard products, while DC12/36/60/72/96/192/240V models are customized products | ||||||||
This inverter delivers a high energy utilization peak efficiency of 95%, ensuring minimal energy loss and optimized operations for off-grid setup configurations.
Standard input configurations include DC24V, DC48V, DC110V, and DC220V. In addition, customized product configurations are available for DC12V, DC36V, DC60V, DC72V, DC96V, DC192V, and DC240V.
In default UPS mode, the conversion transfer time is under 5ms, ensuring connected electrical appliances remain powered without interruption during source transitions.

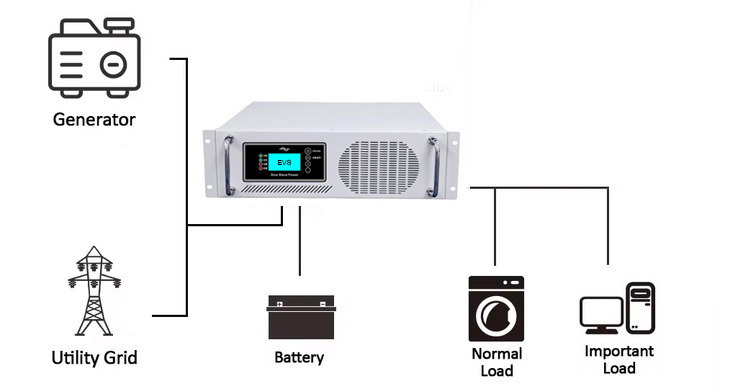

Yes, the inverter is engineered with multi-functional charging support, allowing power input routing from either utility mains power or generator units.

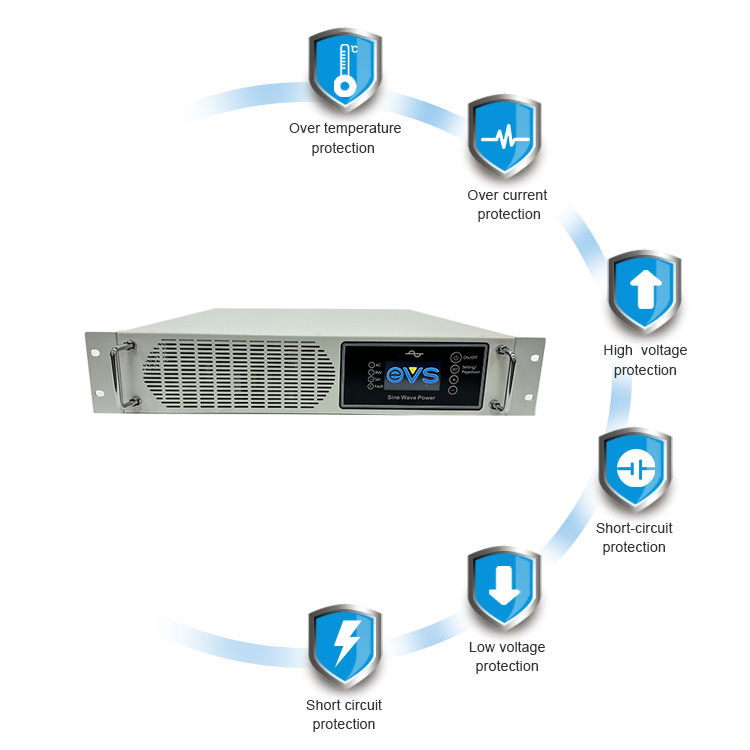

The design features comprehensive safety shut-offs including battery low level alarm, overvoltage shutdown, output short-circuit defense, over-temperature protection, and input polarity reverse defenses.
The unit outputs a clean, pure sine wave shape with less than 3% distortion under linear loads, ensuring compatibility with complex inductive, capacitive, and hybrid loads.
