| Inverter Model | EVS-A3-50110R |
| DC Input | |
| Rated Input Voltage(Vdc) | 108V |
| Rated Input Current (A) | 45.5A |
| DC Input Range (Vac) | 90-144V |
| AC Bypass Input | |
| Bypass Voltage Range (Vac) | 170V-280V(±5V) |
| Rated Input Current(A) | 22.7A |
| Input Frequency | 50Hz/60Hz (Background optional) |
| AC Output | |
| Capacity(VA) | 5KVA |
| Rated output Capacity(W) | 5000W |
| Power Factor(PF) | 0.99 |
| Output Voltage and Frequency | 220Vac 50Hz/60Hz |
| Output Current(A) | 22.7A |
| Voltage Accuracy(V) | 220/230/240VAC ±3% |
| Frequency Accuracy(Hz) | 50±1% or 60±1% (Background optional) |
| Waveform | Pure Sine Wave |
| Standby power consumption | 30W |
| THD | ≤3%(Linear load) |
| Dynamic Response Time | ≤5%((Load 0←→100%) |
| Overload Capability | ≥101%, 60s; ≥120%, 10s; ≥140%, 3s; Overload shutdown output does not turn off the power; it can automatically recover 30 seconds after the load drops below 100%. |
| Peak power (surge capability) | 3 seconds 2 times rated power |
| Inverter efficiency | 94% |
| Inverter ←→ Bypass(ms) | ≤5ms |
| General | |
| Dielectric Strength(Input & Output) | 1500Vac, 1 minutes |
| Noise(1m) | ≤40dB |
| Ambient Temp. | -40℃ ~ +50℃ |
| Humidity | 0~90%, No condensation |
| LCD Display | Battery voltage, battery level, input voltage, output voltage, output frequency, input frequency, load ratio, output status |
| Inverter Status | Battery voltage, battery level, input voltage, output voltage, output frequency, input frequency, load ratio, Output status, Battery Under & Over Vol, Output Over load |
| Protection | Input under Voltage, Input over Voltage, Output Overload, Short Circuit, Battery Overvoltage Protection, Battery Undervoltage Protection |

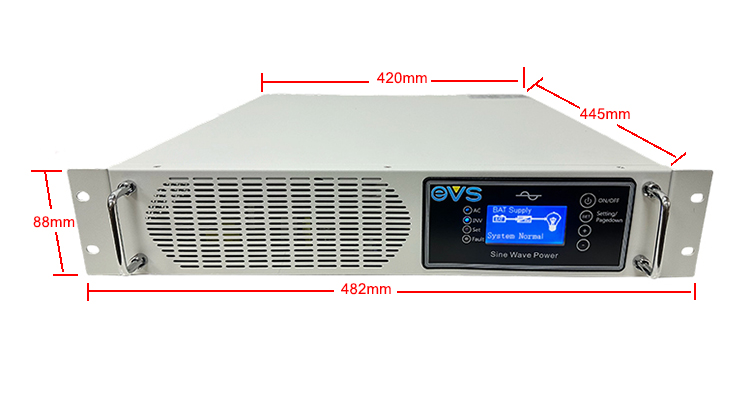

| Dimensions(W×D×H)(mm) | Standard 19” Rack mount, 482X445X88mm |
