The power system comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:
1AC input distribution: AC distribution cabinets.
2Rectification: red insulation diodes.
3DC output distribution: diodectifiers an chain, insulation status detector, switching branches (connected to the switching bus), and control branches (connected to the control bus).

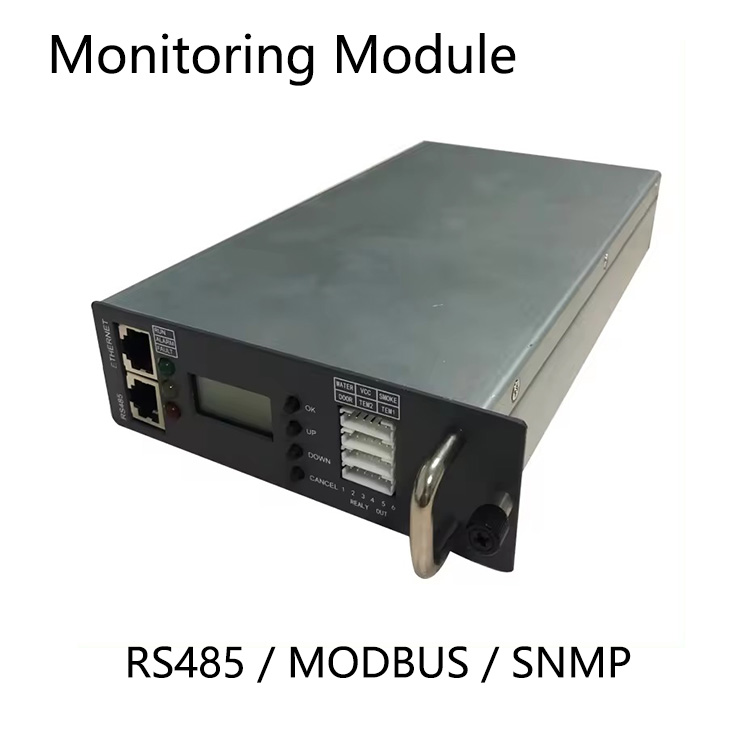

4Monitoring system: power control unit (PCU) and power distribution monitoring box.
Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency
45
50
65
Hz
-
Power Factor
-
-
-
-
≥0.98@220VAC@117V / 20A

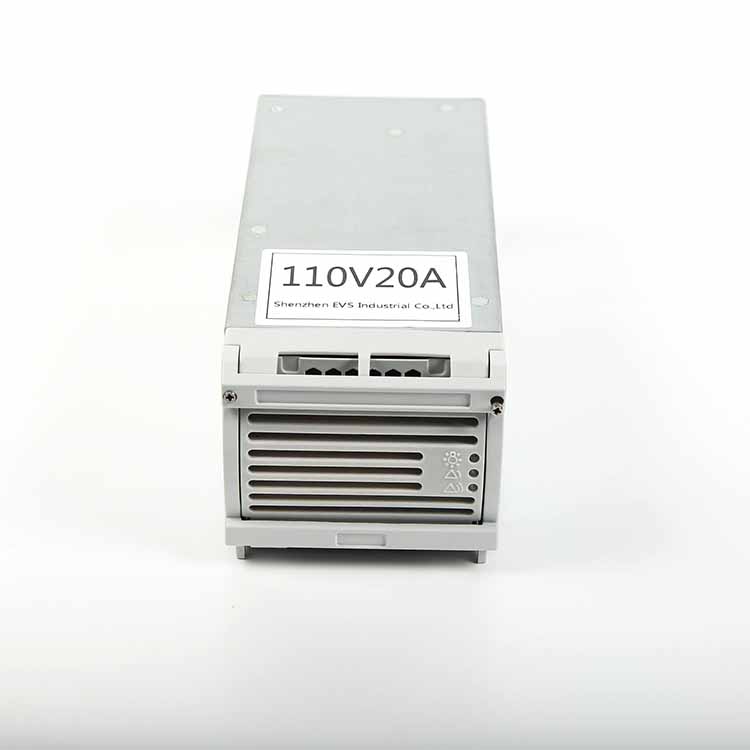

110v dc power supply performance index output
Parameter
Min.
Rated
Max.
Unit
Note
Output voltage range
-
117
-
Vdc
117VDC, 99~143V adjustable
Output current range (max.current)
0
-
20
A
Input 170 ~ 285VAC, when input voltage is below 170VAC, output at derating manner.
Current Sharing
-
±5%
-
-
-
Output Protection
-
-
-
-
Over voltage protection, Under voltage protection, Over temperature protection, Hot-swappable Internal failure isolated diode, Short circuit protection
