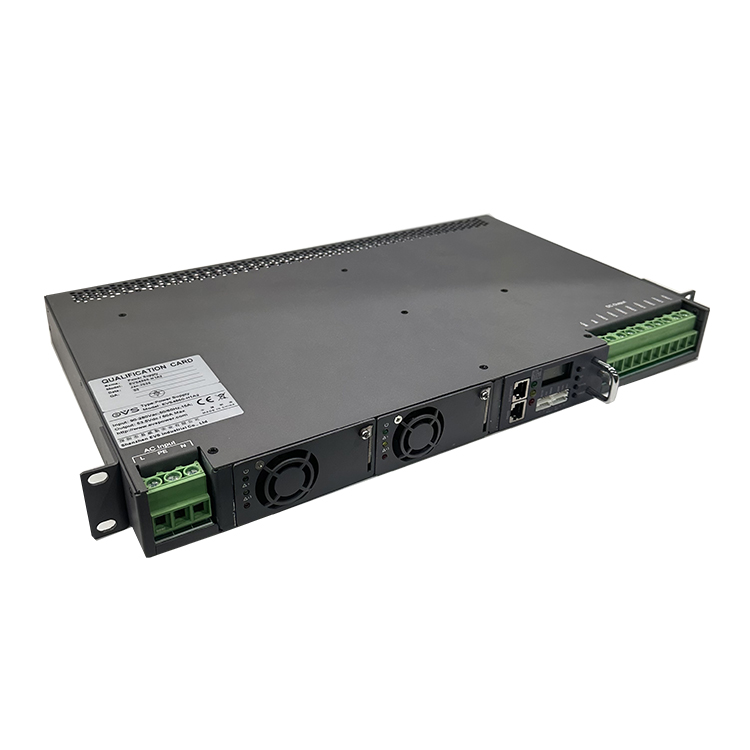

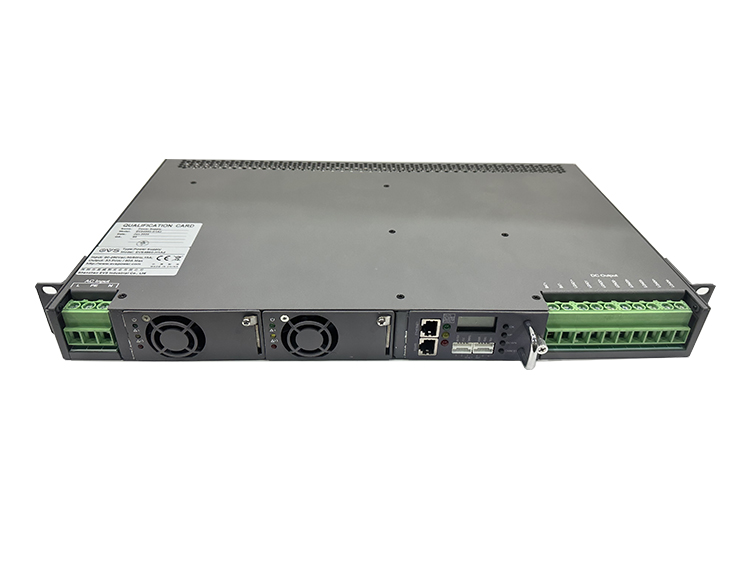

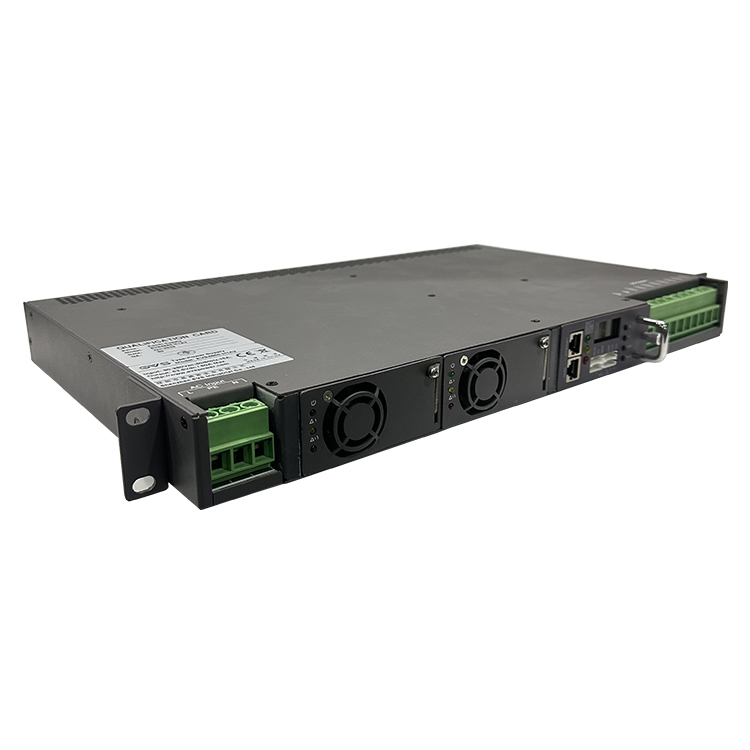

Rack Mount Telecom Power Supply
110V 220V AC to 48V DC Output with Battery Charge Capability
This high-performance power supply is optimized for telecommunication and industrial systems. With an output voltage of 48V and output current range of 0-30A, it features advanced input over/under-voltage protection, output over-current protection, and output over-voltage protection. Engineered as a complete 48V AC to DC power system, it integrates chargers, batteries, and high-efficiency power modules.
The power module series offers a highly reliable power supply solution that can be configured for single-phase or fully redundant applications. Designed for universal AC to DC conversion, it is suitable for global deployments across a wide range of fields:
Telecom power system 48V DC rectifier power supply integrated with Modbus SNMP communication.
Hot-swappable and Plug-and-Play architecture for seamless maintenance.
N+1 redundancy configuration; each module is rated at 30A @ 48VDC.
Integrated AC/DC distribution system for comprehensive input/output protection.
RS485, Modbus, and SNMP communication interfaces for remote configuration and management.
Compact design, support for module sleep modes, and energy-saving operation.

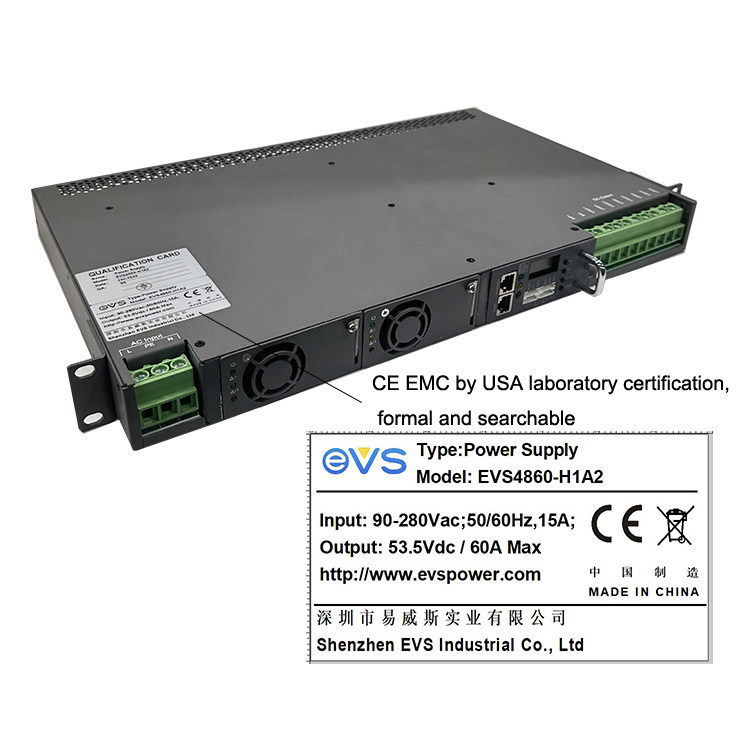

High efficiency with low EMI; certified for CE Safety and EMC compliance.
High system power factor greater than 0.98.
Complete protection: input under/over-voltage, output voltage protection, output current limiting, output short-circuit, and over-temperature safety controls.
Compact sizing module for efficient rack integration.
| AC DC Power System Technical Specifications | ||
|---|---|---|
| AC Input | Input Parameter | Single phase 110Vac, 50Hz |
| Frequency Range | 50Hz (Range: 45Hz ~ 66Hz) | |
| Voltage Range | 90V ~ 175VAC (110V input derating) | |
| DC Output | Rated Current | 40A |
| Rated Power | 2000W | |
| Rated Voltage | 110V/220V | |
| Equalized Charge Voltage | 56.4V (42-58Vdc adjustable) | |
| Float Voltage | 53.5V (42-58Vdc adjustable) | |
| Output Accuracy | ≤1% | |
| Output Ripple Voltage | ≤200mV <0-20MHz> | |
| Power Factor (PF) | 0.99 @ 220VAC / 20A | |
| Leakage Current | ≤1.5mA | |
| Indicator Units | LCD Display Parameters | Input/output voltage, Frequency, output current, Environment, Rate |
| Power Status Indicators | Utility power status, Output status, Under-voltage, Over-voltage | |
| Current Sharing | ±5% from true average current between modules | |
| Load Regulation | 2% | |
| Line Regulation | 1% | |
| Dimension | 19 inches standard configuration | |
What are the primary applications for this 48V DC power system?
The system is designed for telecommunications, fiber optic networks, mobile communications, satellite ground stations, computer networks, and utility power distribution environments.
How does the N+1 redundancy benefit my installation?
The system supports N+1 redundancy where each individual rectifier module operates at 30A @ 48VDC. If one module requires service, the remaining modules dynamically share the load without system interruption.
What remote communication capabilities are built into the power supply?
It comes equipped with Modbus, SNMP, and RS485 interfaces, allowing remote operators to monitor input/output status, current, voltage levels, and alarm warnings in real time.
What voltage range limits apply to the AC input?
The input accepts single-phase AC current. The nominal voltage rating is 110Vac at 50Hz, with a supported operating range of 90V to 175VAC. Input derating applies under 110V parameters.
Does this power supply feature hot-swappable module replacement?
Yes. The system utilizes hot-swappable, Plug-and-Play modules, allowing modules to be inserted or removed without powering down the entire telecommunication stack.
What safety protections are integrated to safeguard connected loads?
The system features comprehensive automatic protection mechanisms, including input under/over-voltage shutdown, output over-voltage clamping, current limitation, short-circuit protection, and over-temperature safety controls.
