EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:
| 220v ac to 12v dc converter integration | |||||
|---|---|---|---|---|---|
| Optional | Rectifier | Module number | Distribution | Monitoring module | Remark |
| Configuration | 30A | 1-2pcs | AC distribution: AC220V input, Load output: 10A-60A |
Monitor | Specific index refer to module specification |
The converter has a wide input voltage range of 90~280V AC (with active power factor compensation factor >0.98). The output is rated at 12V DC with a maximum current of 60A (configured as 12V 30A * 2 modules).
It includes multiple safety mechanisms: input over/under voltage protection, output over voltage protection, output over current protection, and output short circuit protection.
By utilizing advanced zero current/voltage switching technology, this rectifier module achieves a high conversion efficiency of up to 92%.

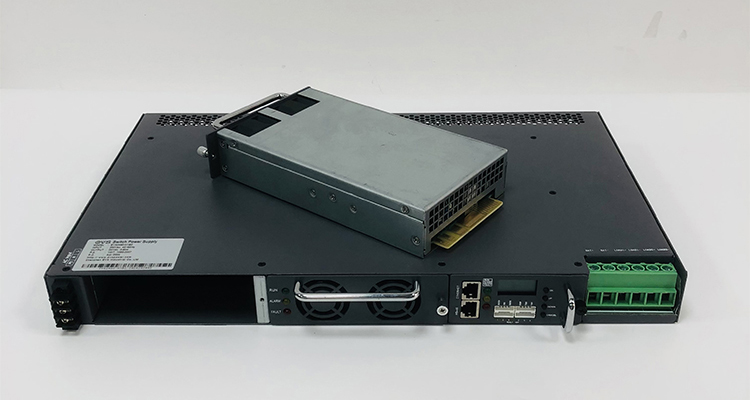

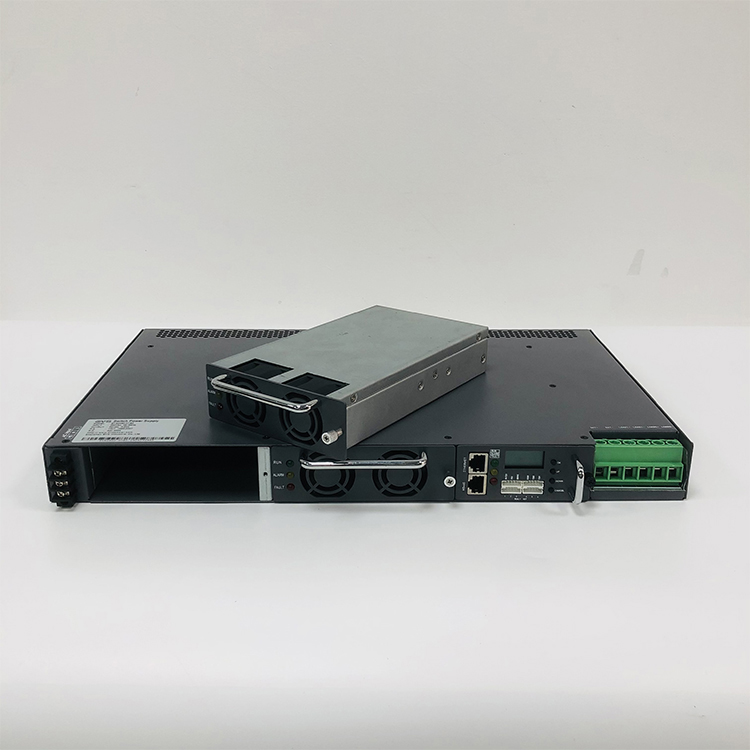

Yes, the power supply module is hot-swappable, allowing for easy installation and maintenance without disrupting the system power.
It has a wide operating temperature range from -25°C to +55°C, making it highly reliable for telecommunications, medical, networking, utility, and various industrial applications.

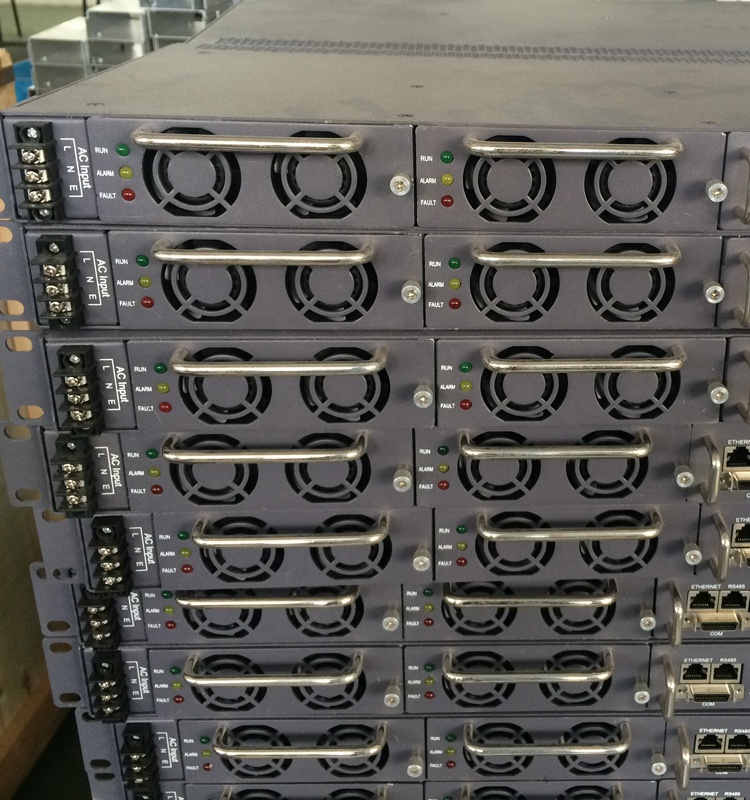

The EVS Series™ features an embedded mounting design standard for 1U Rack Mount installations, optimizing space for server cabinets and industrial enclosures.
