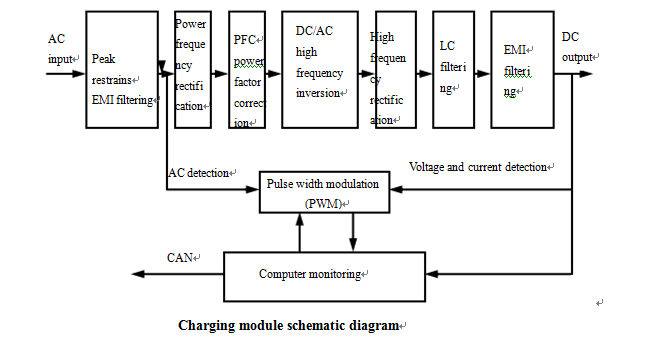

Output Overvoltage Protection: To prevent damage caused by outputting overvoltage to electrical consumers, an overvoltage protection circuit is integrated. If output overvoltage occurs, the module locks up automatically, the relative module fault indication light turns on, and the faulty module ceases operation automatically without affecting the normal operation of the entire system. The protection point is factory-set to 320V±5% for rated output 220V machines, and 160V±5% for rated output 110V machines.
Output Current Limiting Protection: The output current cannot increase infinitely. The maximum value of the output current of each module is limited to 105% of the rated output current, within which the output current value of the module is continuously adjustable. If the load exceeds the module's output capability, the module will decrease the output voltage.
Output Short-Circuit Protection: Upon output short-circuiting, the module drops the output voltage to 0 immediately and limits the short-circuit current to below 15% of the current limit point to protect the module. The system will not be damaged under a long-term short-circuit state, and will automatically return to normal operation after debugging.

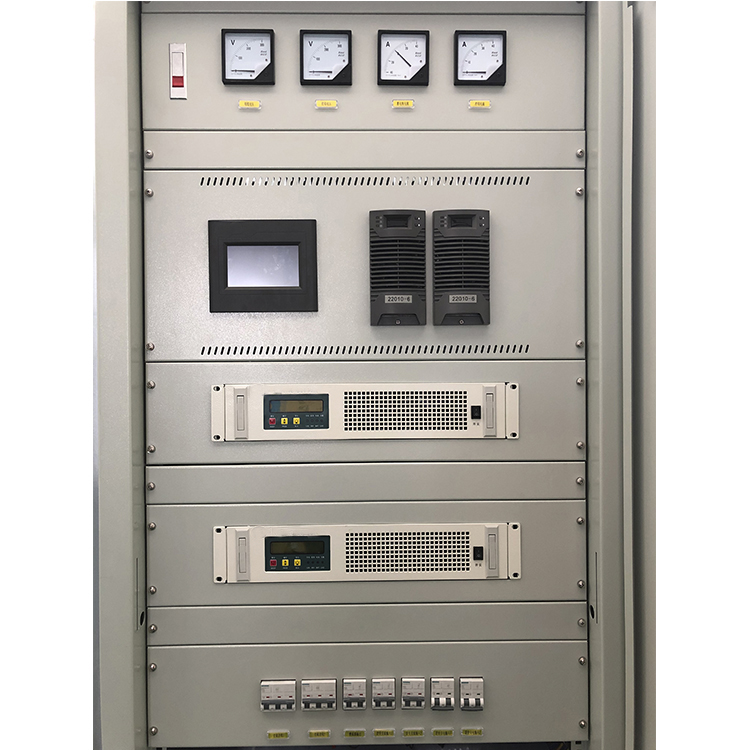

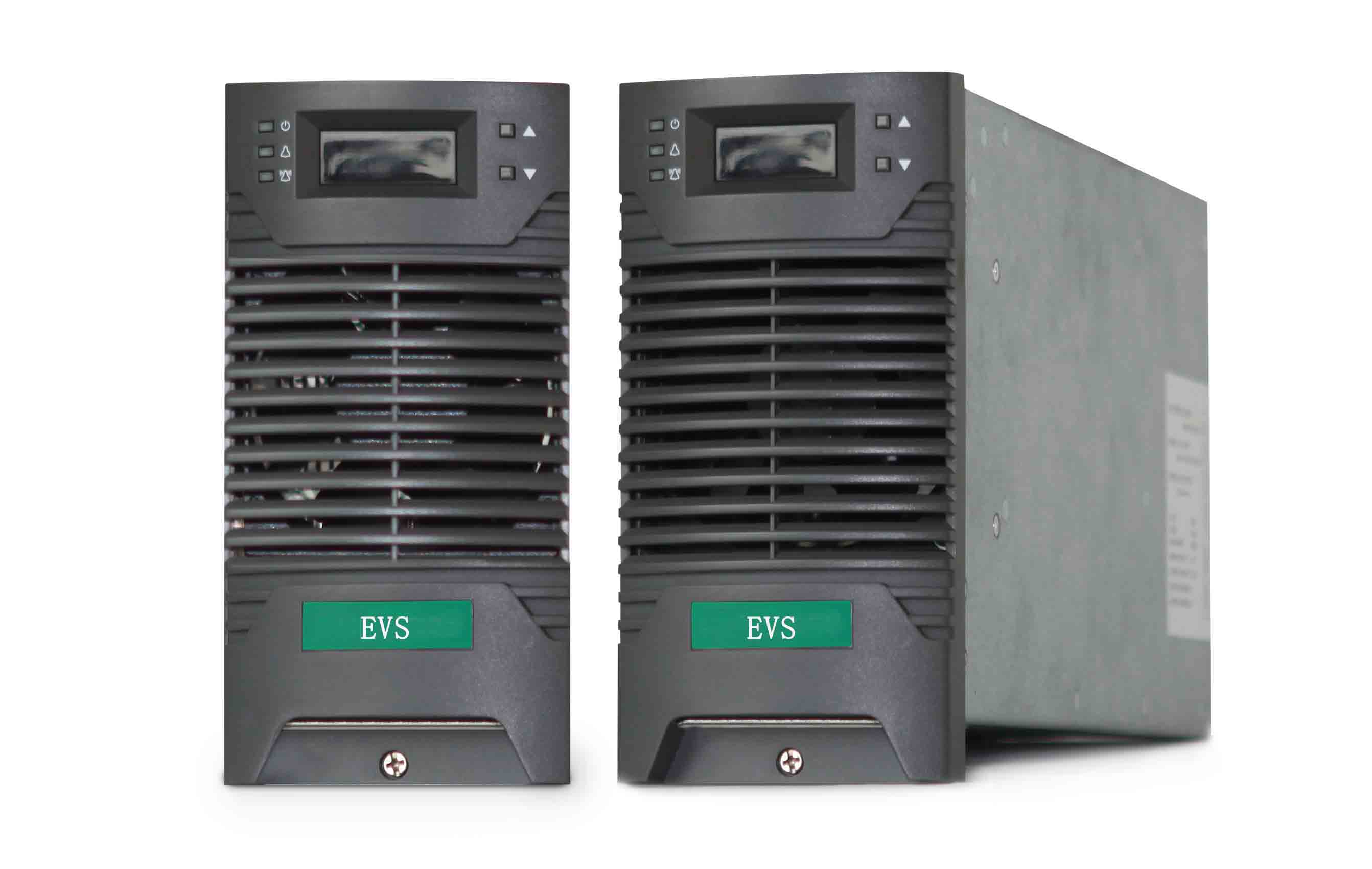

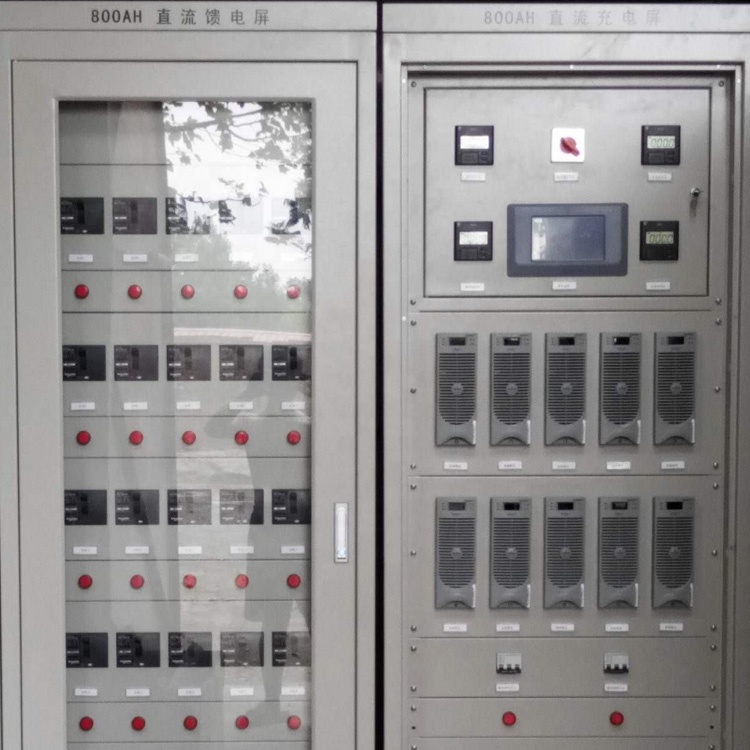

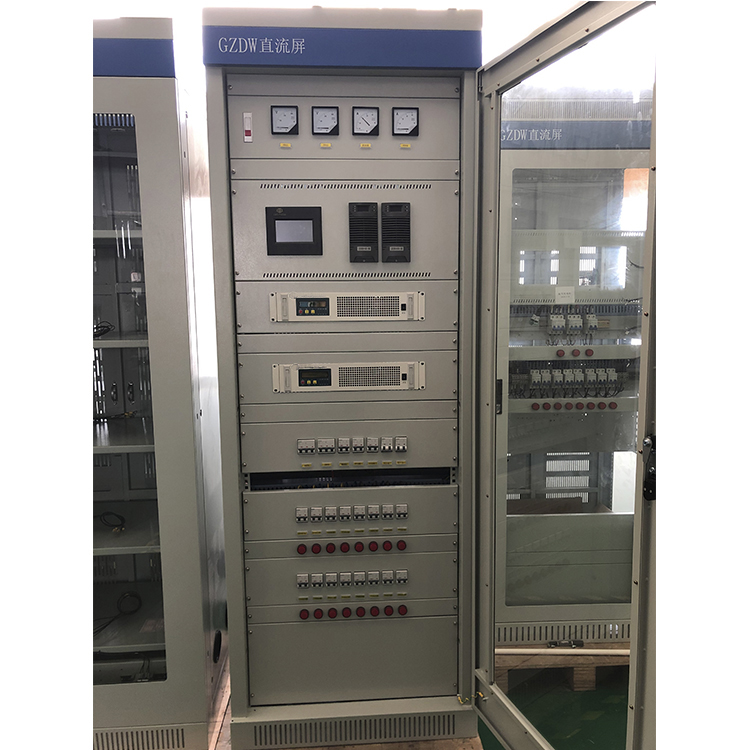

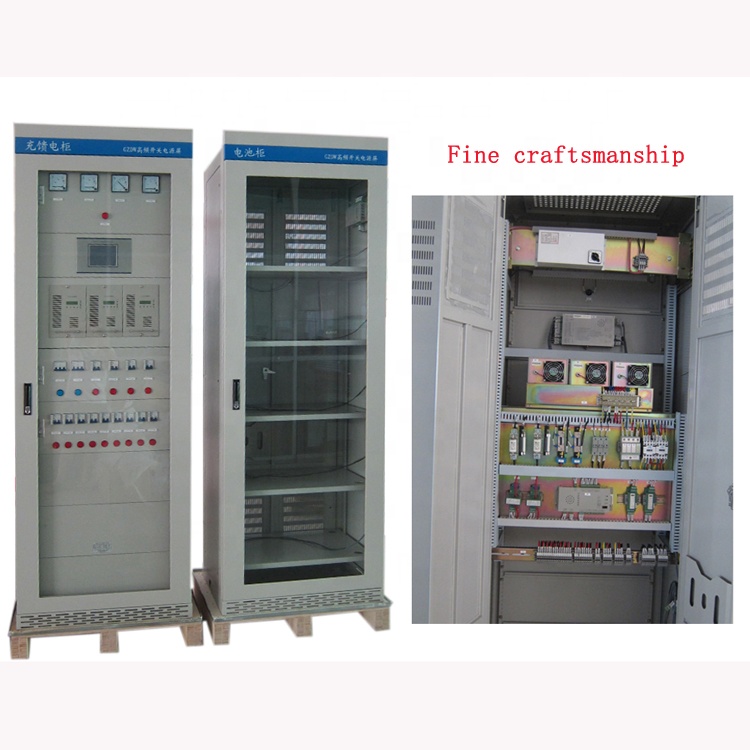

The 220V Rectifier electric power monitoring system features the following specifications:
| Item | Index | Test Condition | ||
|---|---|---|---|---|
| Min Value | Typical Value | Max Value | ||
| Input voltage range (VAC) | 300 | 380 | 485 | Output 240VDC, full load |
| Output adjustable range (VDC) | 176 | 230 | 300 | Input 380VAC, full load |
| Stabilized voltage precision | - | 0.01% | 0.5% | Output 198~286VDC, 20~100% load, input 300~485VAC |
| Stabilized current precision | - | 0.08% | 0.5% | Output 198~286VDC, 20~100% load, input 300~485VAC |
| Dynamic response | 100uS | 150uS | 200uS | Rated output 20~75% load jumps |
| Charging efficiency | 90% | 92% | 93% | Output 240V, 5A, 10A, 20A |
| Maximum audible noise (dB) | - | 45 | 50 | Full load, environmental noise 40dB |
| Storage temperature (°C) | -40 | 25 | 60 | - |
| Working environment temperature (°C) | -10 | 25 | 45 | Output 240V, 5A, 10A, 20A |
| Broadband noise (mV) | 18 | 25 | 40 | Rated input and output, resistive load |
| Peak-to-peak noise (mV) | 100 | 300 | 400 | Rated input and output, resistive load |
| Un-equalizing current degree of parallel machine | ±0.5% | ±2% | ±5% | Rated input and output, monitor equilibrium flow |
| Start-up delay (s) | 3 | 5 | 8 | - |
| Ripple factor | 0.01% ~ 0.1% | 0~20MHz bandwidth | ||
| Dielectric strength | 2000VAC 50Hz | Time is 1 minute, leak current is 10mA | ||
| Load grade | Grade I (100%) rated output current works continuously | In the range of float charging voltage | ||
| Automatic current limiting characteristic | The output current exceeds 110% of rated current | For constant power protection, output current shall not increase, DC voltage drops | ||
| Input overvoltage/low-voltage protection | Protection activates below 313±10Vac or above 485±10Vac. No DC output, yellow indicator on. | Restores automatically at 335±10Vac ~ 460±15Vac. | ||
| Input phase loss protection | Power output is limited during phase loss. Output is 5A when voltage is 260V. | Works automatically after fault clearance. | ||
| Output overvoltage protection | Output stops automatically if voltage exceeds 293±6VDC to protect equipment. | Does not recover automatically. Restart module manually. | ||
| Output low-voltage alarm | Alarm activates when output is below 198±1Vdc. DC output continues, yellow indicator on. | Alarm clears after voltage recovery. | ||
| Output short circuit retraction function | Output current does not exceed 40% of rated current under short circuit. | Works automatically after fault clearance. | ||
| Over-temperature protection | Activates if internal temperature exceeds set limits. No voltage output, yellow indicator on. | Restores automatically after temperature returns to normal. | ||
