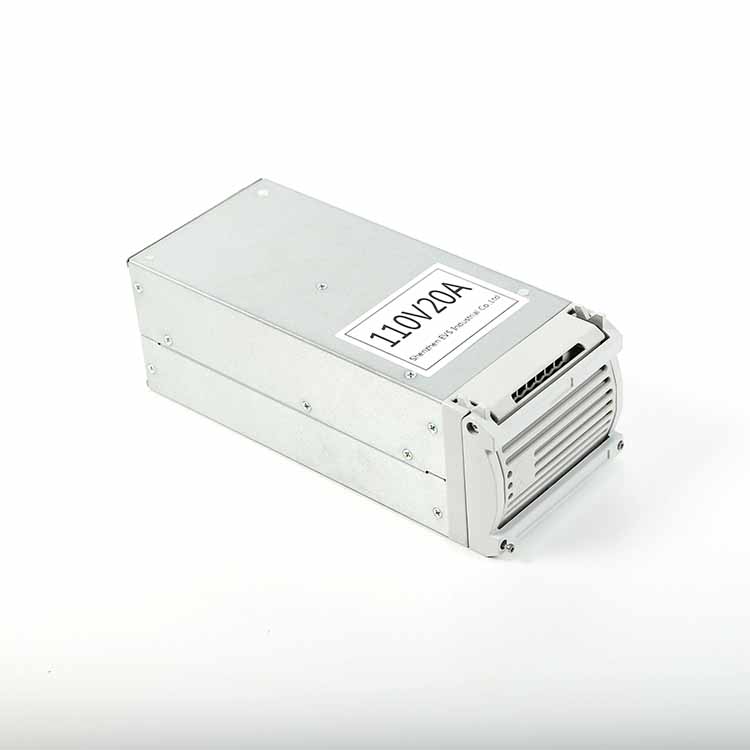

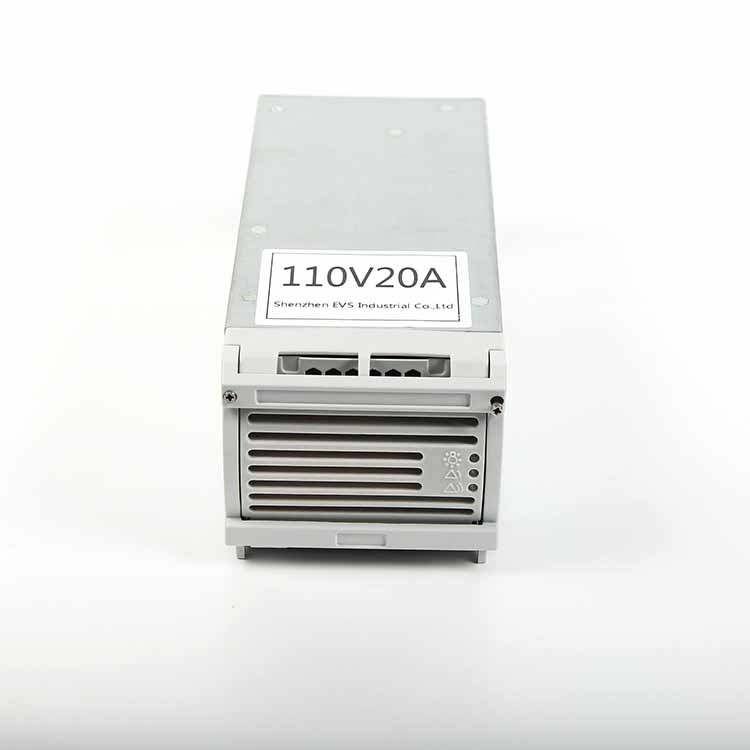

3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
1 / 5
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply
3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply

3KW Industrial AC DC Rectifier System 230V AC 110V DC Converter 20A Output Current Single 92% Efficiency Switching Power Supply

Send Inquiry

Product Description

Our Products
Features with the following specifications:
The power system comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:
  • AC input distribution: AC distribution cabinets.
  • Rectification: Red insulation diodes.
  • DC output distribution: Diodectifiers an chain, insulation status detector, switching branches (connected to the switching bus), and control branches (connected to the control bus).
  • Monitoring system: Power control unit (PCU) and power distribution monitoring box.

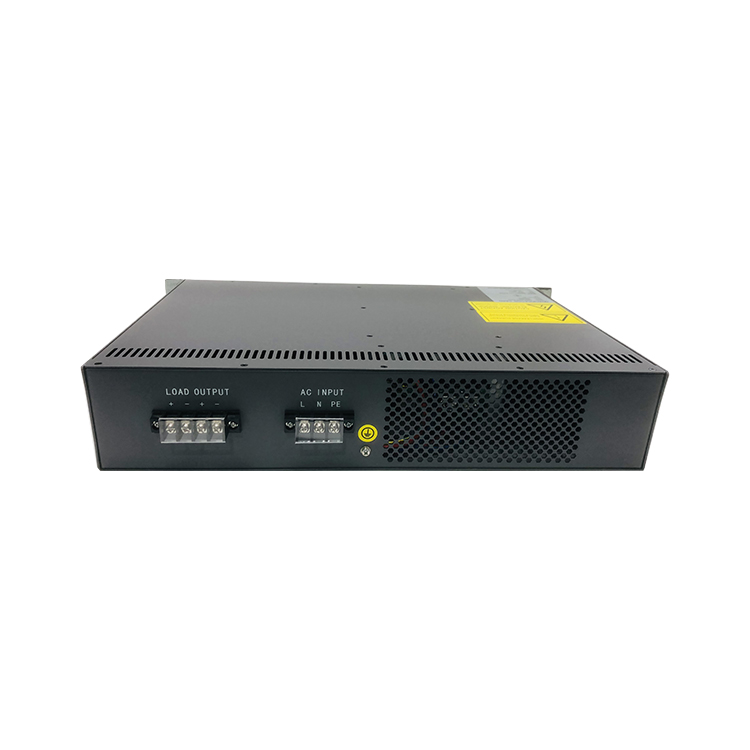

Modular Rack Rectifier System
Input Voltage: 220VAC
Output Voltage: 110Vdc 20A / 220V 10A
Output Power: 2900W (176VAC~264VAC Input) / 1200W (90VAC~175VAC Input)

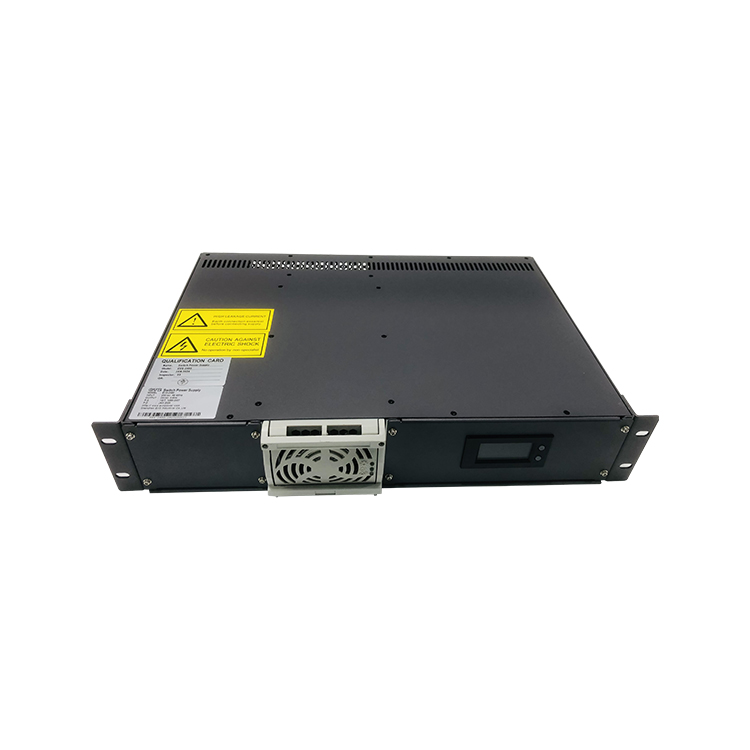

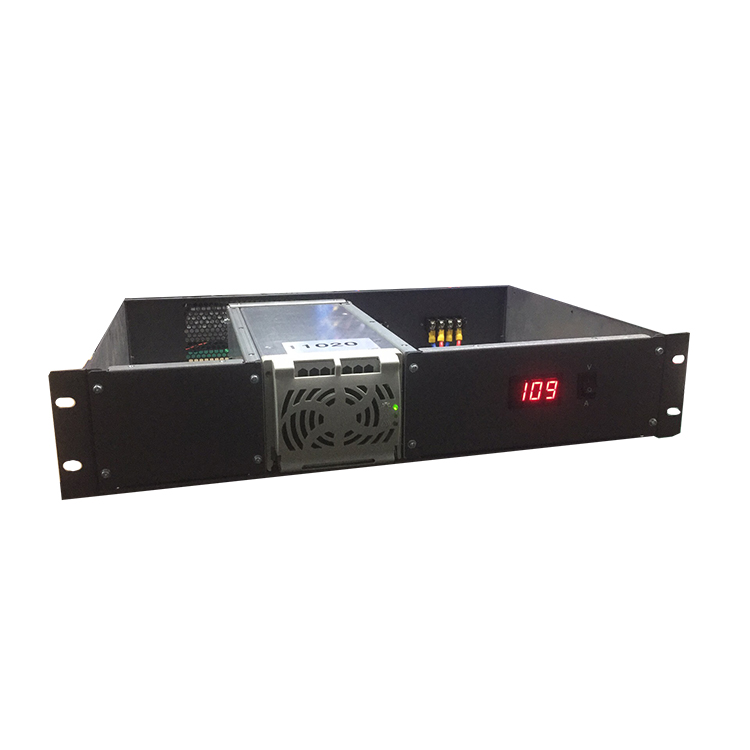

Modular rack rectifier system front view
Modular rack rectifier system details
230V AC 110V DC Converter Performance Index Input
Parameter Min. Rated Max. Unit Note
Rated working voltage range - 110/220 - Vac -
Input voltage range 90 220 264 Vac Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency 45 50 65 Hz -
Power Factor - - - - ≥0.98@220VAC@117V / 20A
230V AC 110V DC Converter Performance Index Output
Parameter Min. Rated Max. Unit Note
Output voltage range - 117 - Vdc 117VDC, 99~143V adjustable
Output current range (max. current) 0 - 20 A Input 170 ~ 285VAC; when the input voltage is below 170VAC, output at derating manner.
Current Sharing - ±5% - - -
Output Protection - - - - Over voltage protection, Under voltage protection, Over temperature protection, Hot-swappable, Internal failure isolated diode, Short circuit protection
