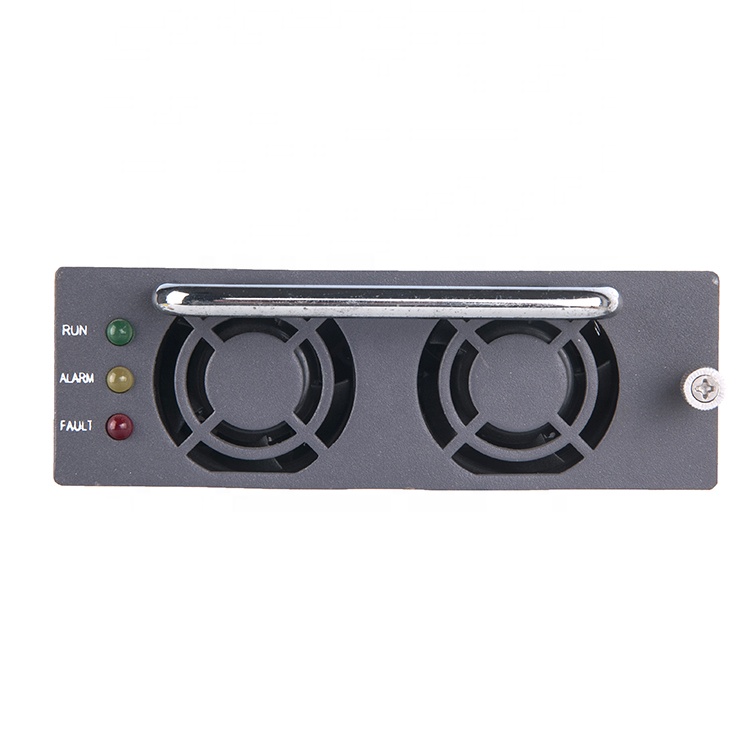

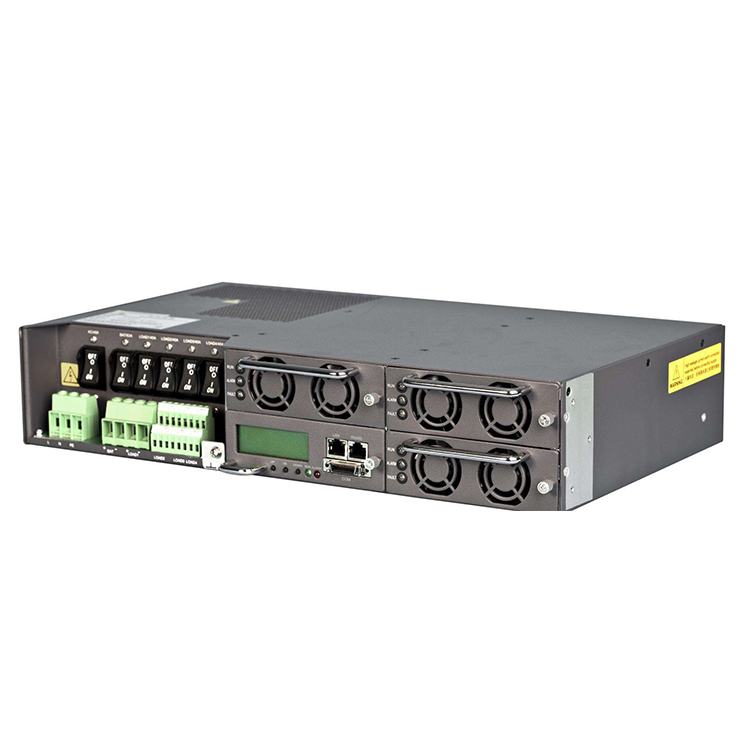

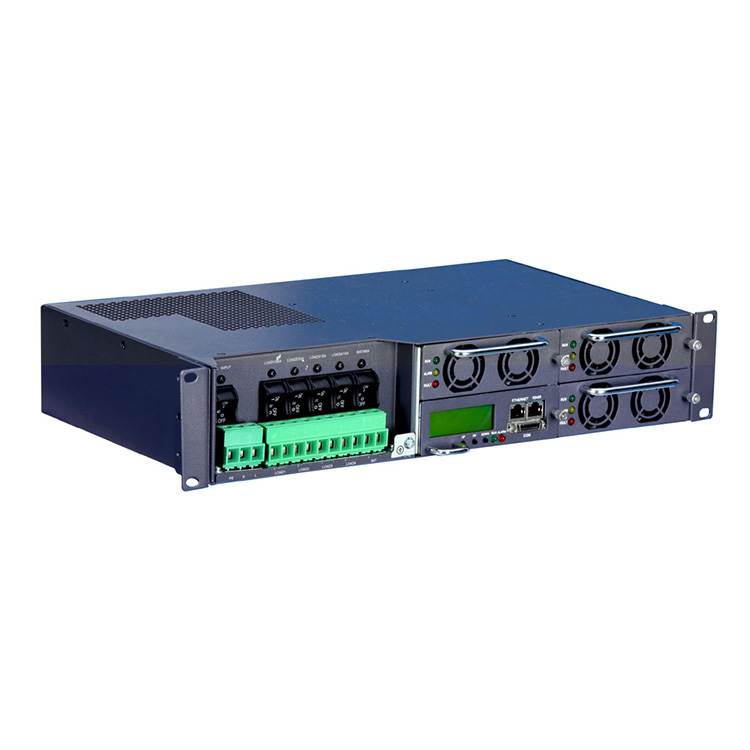

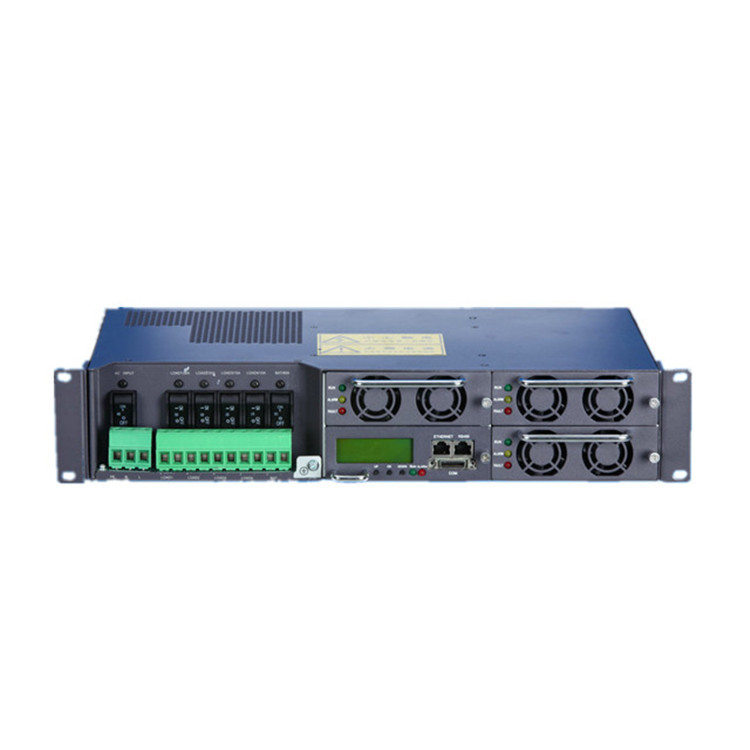

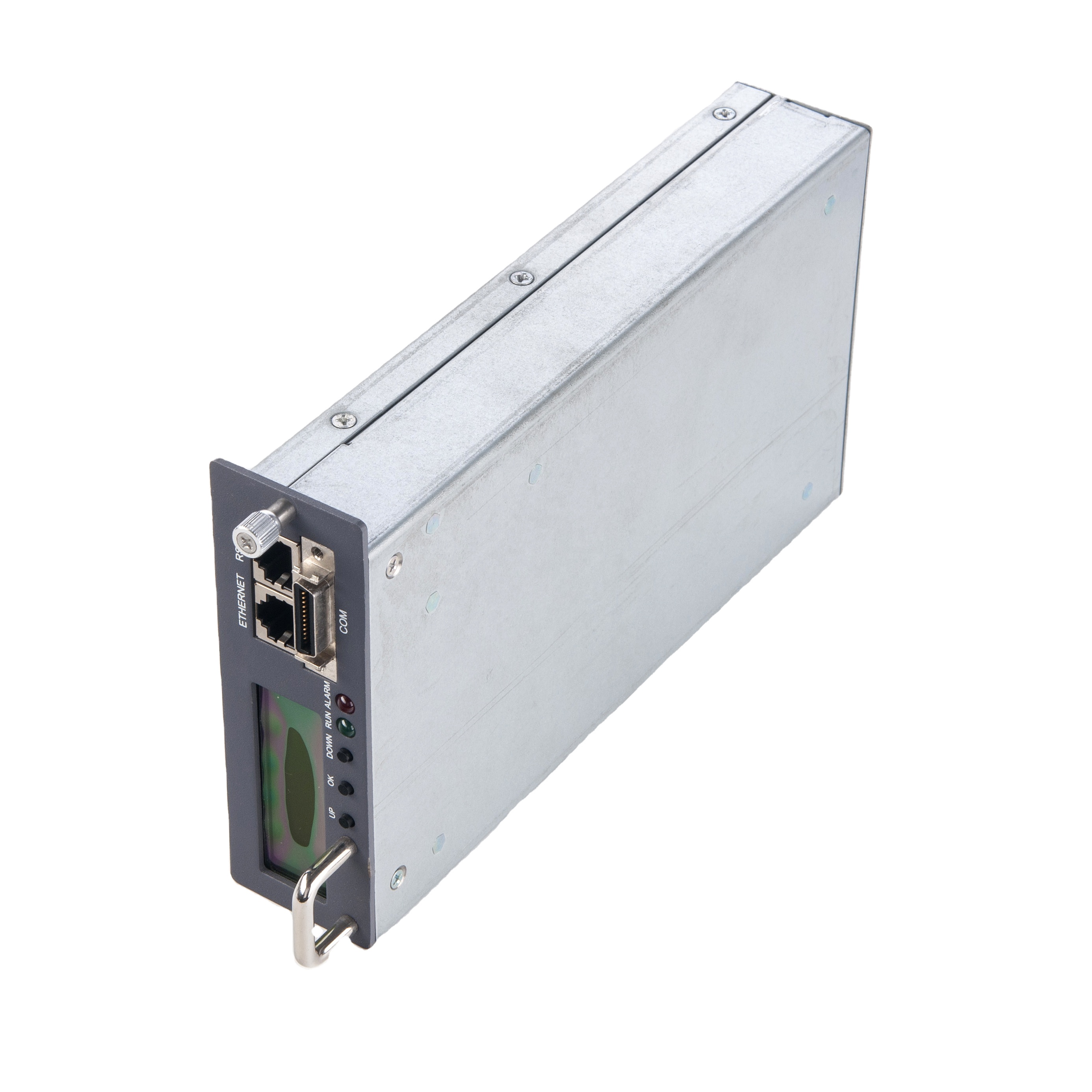

Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
1 / 5
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V
Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V

Single Output 48V 3000W Rack Mount Power Supply 48VDC AC-DC Rectifier 2U 100A Current 220V/110V/230V Input Industrial Use 48V

Send Inquiry

Product Description

Our products

48v rack mount power supply features with the following specifications:

  • Rectifier module adopts active power factor compensation technology, power factor up to 0.99.
  • AC input voltage of normal operating range as wide as 90 ~ 290V.
  • Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.
  • Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.

48v rack mount power supply input

Parameter Min. Rated Max. Unit Note
Rated working voltage range - 220 - Vac -
Input voltage range 90 220 290 Vac Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency 43 50 67 Hz -
Battery input 40 53.5 60 Vdc Battery pack’s positive and negative in parallel with DC output of rectifier module

48v rack mount power supply output

Parameter Min. Rated Max. Unit Note
Output voltage range 42 48 58 Vdc -
Output current range 0 - 100 A input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.

Product Presentation

Rack Mount Power Supply Hot Sale
Rack Mount Power Supply Why Choose Us
Rack Mount Power Supply Production

FAQ

Q1. Why choose us?
We offer you the best quality products and service. Win to win business is our first principle.
Q2. Are you a factory or trading company?
Yes, we are a manufacturer and supply OEM/ODM service.
Q3. Can you open mould as customer request?
Yes, we can.
Q4. How about your After sales-service?
1. Guarantee time: one year.
2. Spare parts: 0.3% spare parts will be shipped with your order.
3. Return policy: we can exchange goods if there is a quality problem.
Q5. What are the Payment & Logistics options?
1. Payment terms: L/C, T/T, Western Union, MoneyGram, Paypal.
2. Shipping terms: Ship, DHL, UPS, FEDEX, TNT, EMS.
3. Sample order delivered within 24 hours, order lead time within 3 days.
Q6. What can you get from us?
1. Excellent products (unique design, strict quality control).
2. Great service (OEM, ODM, after-sales services, fast delivery).
3. Professional business consultation.
