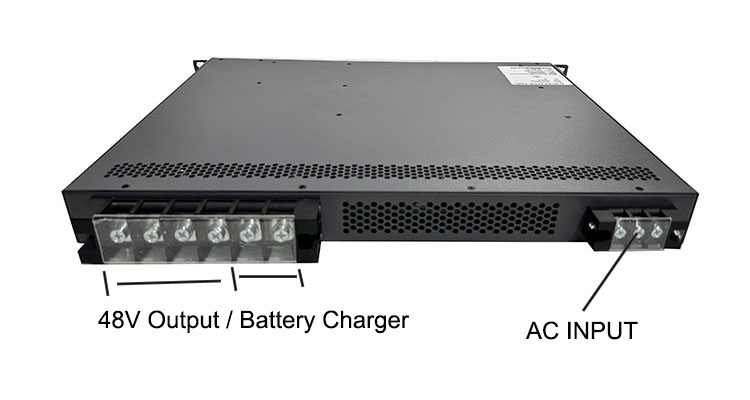

48v 100a battery charger
This model of power supply is for communication. Output voltage -48V, Output current 100A; Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.
48v 100a battery charger index
EVS Series™ uninterrupted 48v 100a battery charger
EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:
EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.
| 48v 100a battery charger technical | ||
| AC Input | Input | Single phase 220Vac, 50hz |
| Frequency | 50HZ, Range: 45Hz~66Hz | |
| Voltage Range | 90V~290VAC | |
| DC output | Rated current(A) | 100A |
| Max Output Current | 0~100A | |
| Rated power(W) | 6000W | |
| Rated voltage(V) | 220V | |
| Equ- charge (V) | 56.4V (42-58Vdc adjustable) | |
| Float voltage(V) | 53.5V (42-58Vdc adjustable) | |
| Output Accuracy(V) | ≤1% | |
| Output ripple voltage | ≤200mV <0-20mHZ> | |
| PF | 0.99@220VAC/30A | |
| Leakage current | ≤1.5mA | |

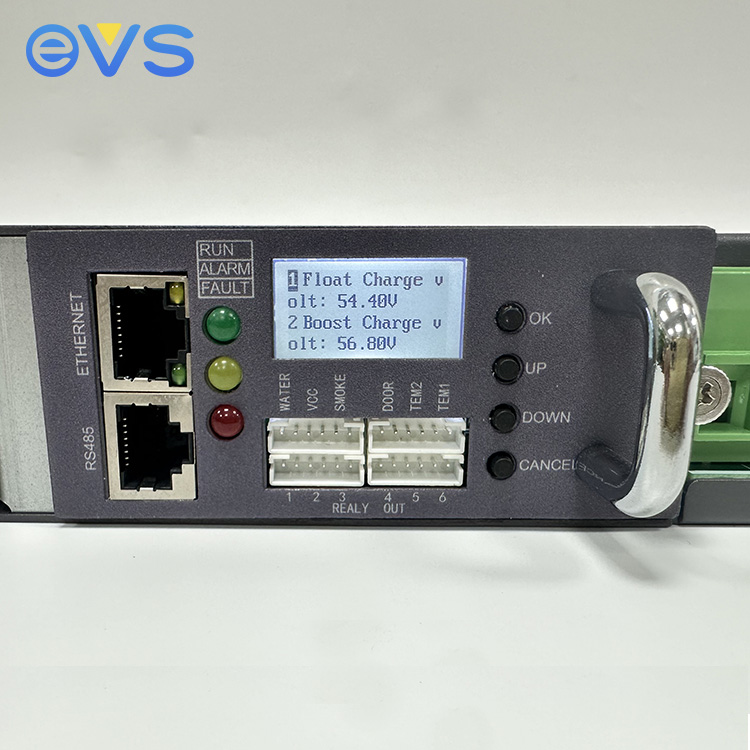

| Indicator | LCD display | Input/output voltage, Frequency, output current, Environment, Rate |
| Power status | City power, Output, Under voltage, overload voltage | |
| Current Sharing | ±5% from true average current between modules | |
| Load regulation | 2% | |
| Line regulation | 1% | |

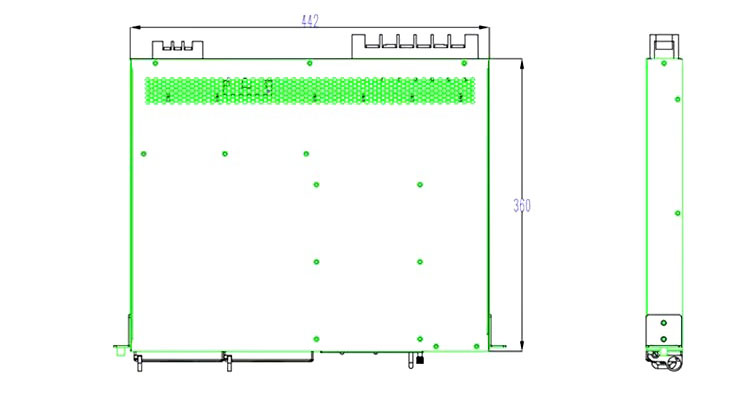

| Dimension | 482X360X44mm (D*W*H) | |
