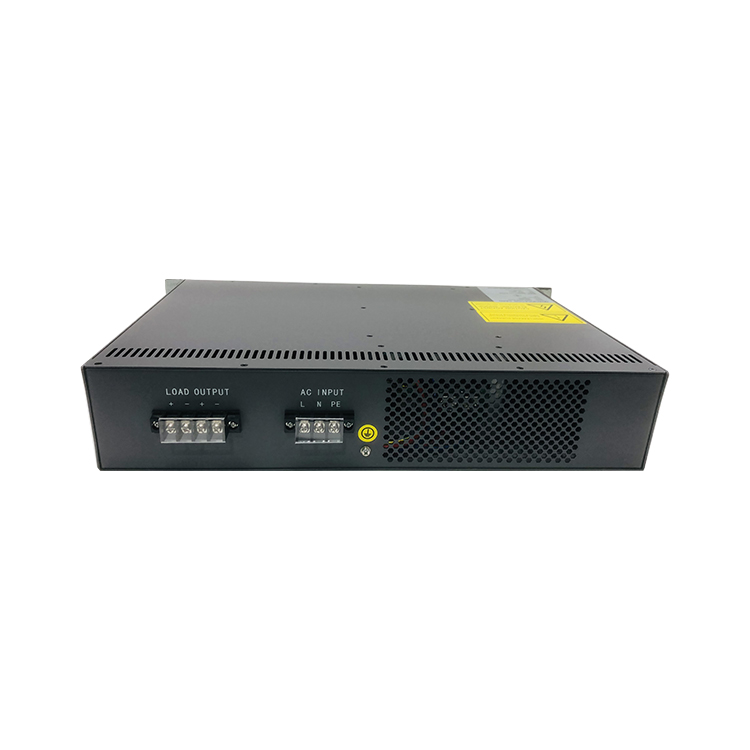

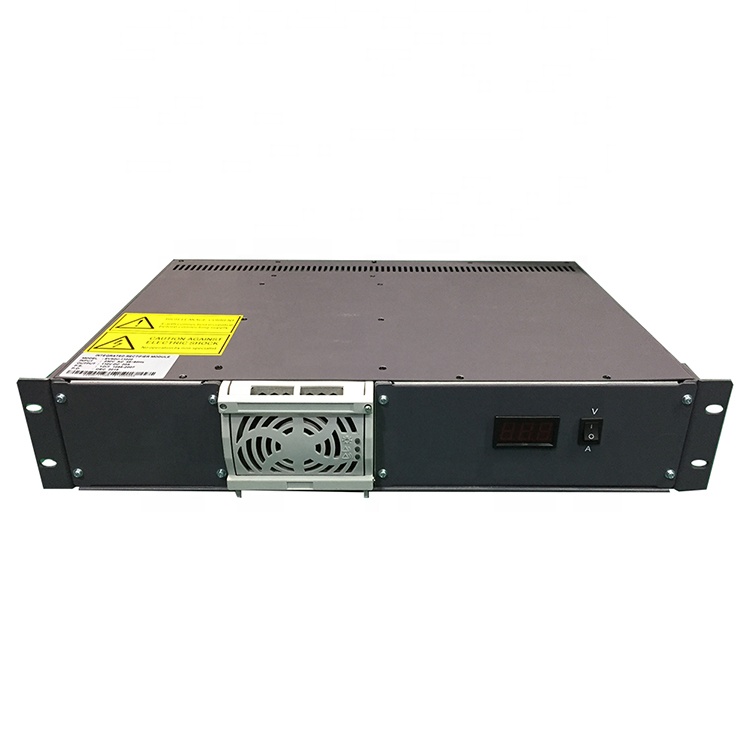

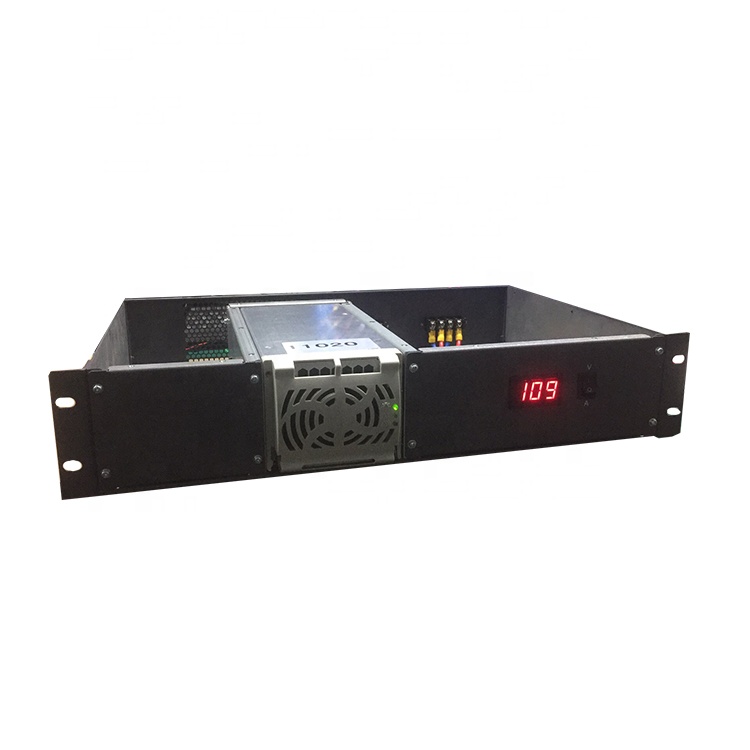

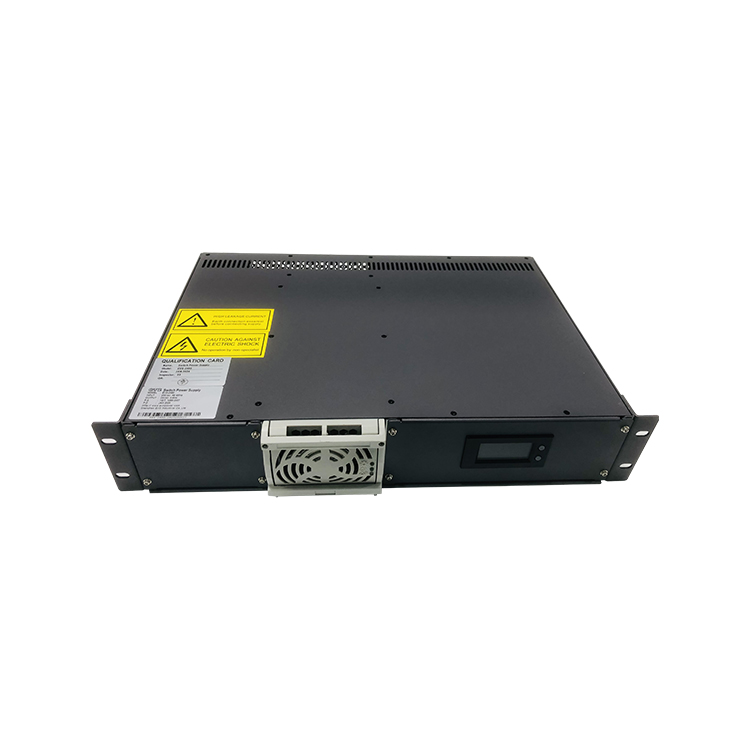

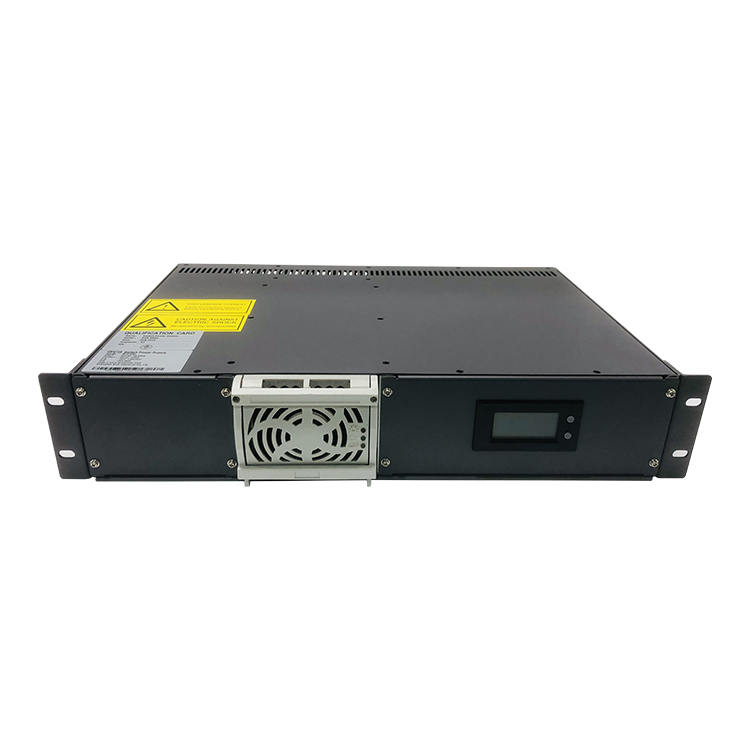

110V DC Power Supply Converter 220V AC Rectifier Module 3000W 20A Single 50/60Hz Telecom Base Stations 100V 230V 380V 50Hz

1 / 5

110V DC Power Supply Converter 220V AC Rectifier Module 3000W 20A Single 50/60Hz Telecom Base Stations 100V 230V 380V 50Hz

Send Inquiry

Product Description

Our Products

110V DC Power Supply features with the following specifications:

✓ Small size, height 2U, 20A rectifier module

✓ Configurable module: 10A, 20A for option

✓ The standard 19-inch installation

✓ Improve monitoring and management and battery management

✓ Provide RS485 communication interface

✓ Battery anti-reverse function

✓ Support module anti-theft function

✓ Support hot-swappable

✓ The energy-saving sleep function

✓ Standard 19-inch rack system

110V DC Power Supply INPUT
Parameter	Min.	Rated	Max.	Unit	Note
Rated voltage range	-	110/220	-	Vac	-
Input voltage range	90	220	300	Vac	Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Output voltage range	90	125	156	Vdc	-

Hot Sale

Company Information

Why Choose Us

Installation Site

Process

Frequently Asked Questions

What are the input and output voltage ranges of this DC power supply?

The input voltage ranges from 90 Vac to 300 Vac (rated at 220 Vac). The output voltage range is between 90 Vdc and 156 Vdc, with a rated output of 125 Vdc.

What rectifier module options are available?

The system features a standard 2U height design and is configurable with either 10A or 20A rectifier modules to suit your specific application requirements.

Does this system support hot-swapping and remote communication?

Yes, it fully supports hot-swappable module replacement for easy maintenance without power interruption. It also provides an RS485 communication interface for seamless integration and monitoring.

What battery protection and management functions are included?

This system features advanced battery monitoring and management tools, including a built-in battery anti-reverse function and security module anti-theft capabilities.

Is this system energy efficient?

Yes, it is designed with an energy-saving sleep function that automatically optimizes power usage to improve overall efficiency during low-load periods.

What is the standard mounting format for this power supply?

It is designed for standard 19-inch rack installations, making it highly compatible with typical telecom base stations and industrial enclosures.
