Product Description

EVS 6000W Electric Rectifier 220V AC/DC Converter 40A 60Hz 380V/220V Input 93% Efficiency Single Output Industrial Use Divider
Product Overview

220 ac to 220v dc converter with 10A Modular Rectifier

This 220 ac to 220v dc converter adopts active power factor compensation technology, bringing the power factor up to 0.99.

It supports a wide normal operating input voltage range of 90 ~ 290Vac & 110-395Vdc. The rectifier modules adopt full bridge soft switching technology, enabling the overall efficiency to reach above 92%.

Ultra-low Radiation
Utilizing advanced electromagnetic compatibility design, the rectifier module meets the standard requirements for conducted and radiated interference of "the communication power equipment electromagnetic compatibility Limits and methods of measurement" (YD/T983).
Safe & Reliable
The entire system design is in full compliance with global safety standards, including EN60950 and GB4943, ensuring stable operation for demanding industrial systems.
Flexible System Design
The 220 ac to 220v dc converter utilizes an advanced modular design, allowing multiple rectifier modules to be integrated together within a single 19'' rack box. This design flexibility offers sufficient power supply capacity for Telecom and Power Industrial equipment.
Power output can be flexibly configured depending on the quantity of rectifier modules equipped. It provides stable DC output to regular load systems, battery float charging, and battery equalized charging. It delivers constant DC charge power and automatically responds according to current load demands.
Key Features
Modular Configuration
  • Modular design, N + 1 redundancy, easy for system expansion
  • Hot-swappable modules for safe, quick, and convenient replacement
  • Standard RS485/SNMP communication interface
  • CE conformity certification
Battery Management
  • Real-time battery voltage monitoring
  • Charge and discharge current tracking
  • Automatic control for boost charge and float charge
  • Charge temperature compensation
Comprehensive Protection
  • Free output voltage regulation
  • Free output current limit settings
  • Input and output over/under voltage protection
  • Over temperature protection
  • Short circuit protection
Technical Specifications
220 ac to 220v dc converter Output Parameters
Parameter Min. Rated Max. Unit Note
Output voltage range 180 220 280 Vdc -
Output current range (max. current) 0 - 40 A -
Regulation accuracy - - ±1 % -
Load regulation - - ±1 % -
Source regulation - - ±1 % -
Current sharing regulation - - ±5 % -
Ripple (peak – peak value) - - 200 mv Network 20MHz testing.
Rectifier module 24Vdc/50A 48Vdc/50A 125Vdc/20A 220Vdc/10A
Input 90 ~ 290Vac & 110-395Vdc & 380Vac
Output 50A 100A 150A 200A 50A 100A 150A 200A 20A 40A 60A 80A 10A 20A 30A 40A
Divider
Product Gallery
Product View 1
Product View 2
Product View 3

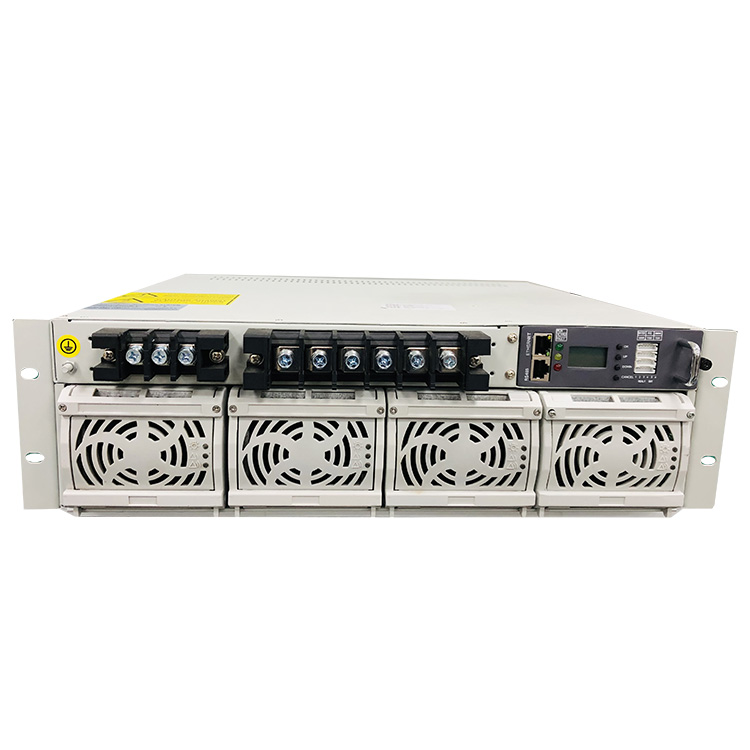

Product View 4
Hot Sale Showcase
Hot Sale Product Banner
Manufacturing & Quality Control
Production details 1
Production details 2
Production details 3
Production details 4
Production details 5
Production details 6
Frequently Asked Questions (FAQ)
Q What is the power conversion efficiency of this AC to DC converter?
The rectifier modules adopt full bridge soft switching technology, which enables the power conversion efficiency to reach above 92% (up to 93% rated efficiency under optimal load).
Q Does the converter support system expansion?
Yes. It features an advanced N + 1 modular design, allowing easy capacity expansion. The modules are also hot-swappable, ensuring safe and convenient replacement without interrupting the system operation.
Q What ranges of input voltage can the system operate on?
The converter features a wide normal operating input voltage range of 90 ~ 290Vac and 110 ~ 395Vdc, making it suitable for varying industrial electrical configurations.
Q What battery management capabilities are integrated into this rectifier system?
The integrated battery management system includes real-time battery voltage monitoring, charge and discharge current tracking, automatic control for boost and float charging modes, as well as charge temperature compensation.
Q What protection features are built into this converter system?
It features robust multi-protection options: input and output over/under voltage protection, over temperature protection, and short circuit protection.
Q What communication standard does the system support for monitoring?
The device is equipped with a standard RS485/SNMP interface, which allows for convenient remote monitoring and data management.
