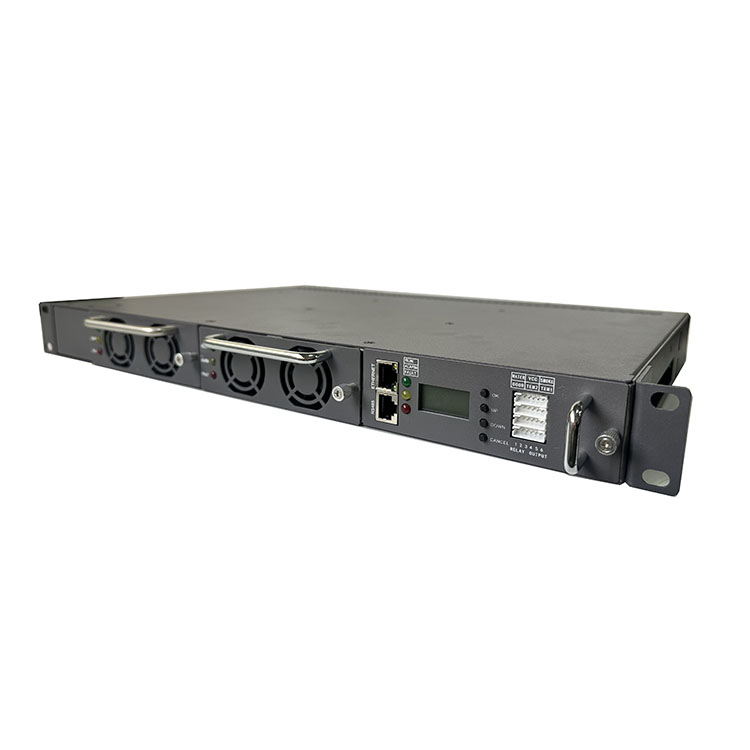

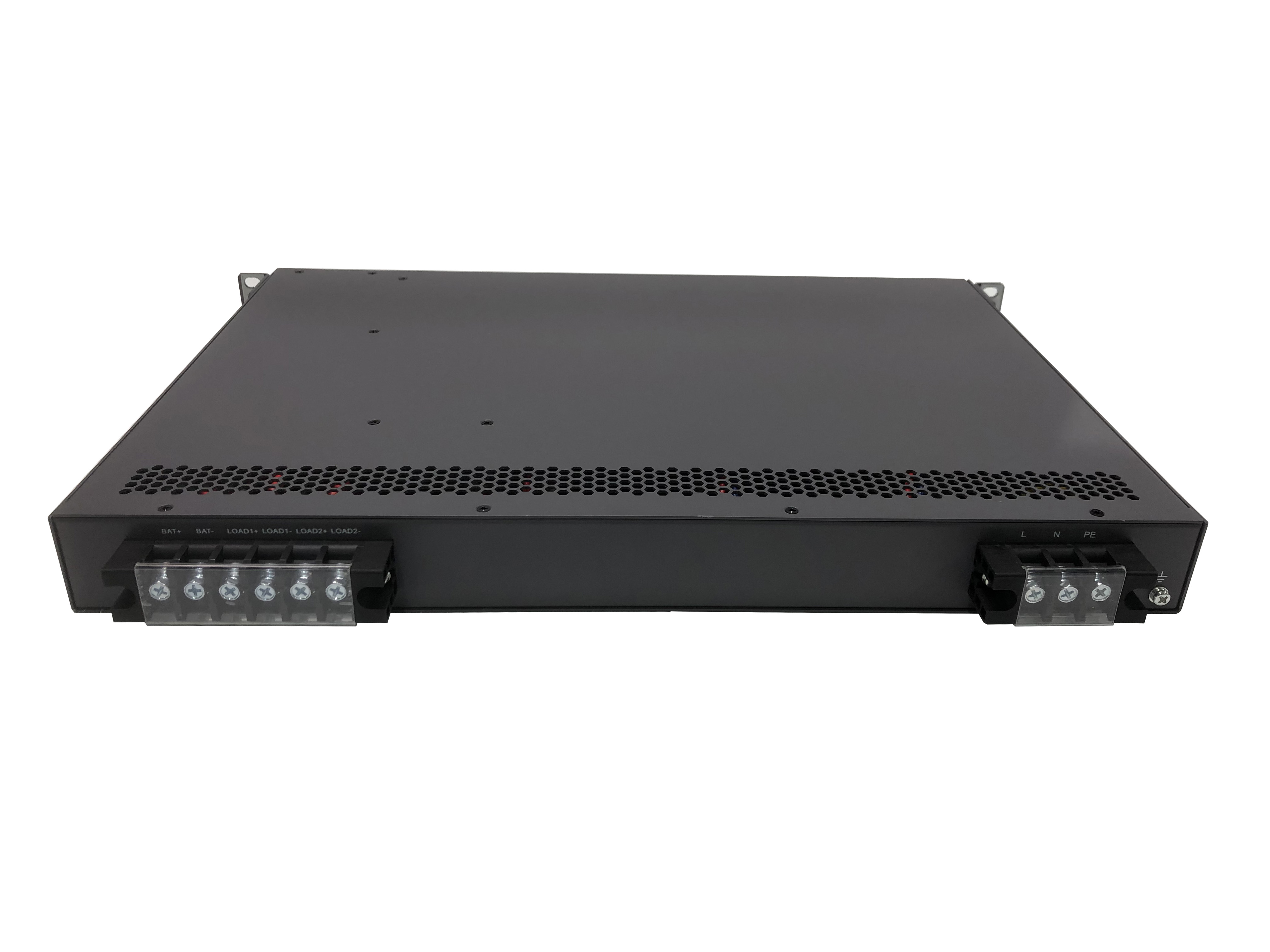

High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
1 / 5
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply

High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply

Send Inquiry

Product Description

High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter
110v ac to 48v dc converter
  • Adoption of active power factor compensation technology with factor >0.98
  • Wide operating range of AC input voltage: 90~280V
  • Operating temperature range: -25℃~+55℃
  • Zero current/voltage switching tech with high efficiency 96%
  • Hot-swappable
  • Input over/under voltage protection
  • Output over voltage protection
  • Output over current protection
  • Output short circuit protection
  • Auto current sharing
  • Embedded mounting
110v ac to 48v dc converter Product Model: EVS4860
Type: Embedded power
Input Voltage: 90-280Vac
Output Voltage: 53.5Vdc
Output Current: 20A
Efficiency: >93.2%
Power: 1000W
size(mm):
(long x wide x high)		 482.6*238*43.6mm
High Efficiency 1000W 48V AC to DC Converter 110V to 48V DC Single Output 20A Industrial Switching Power Supply
High Efficiency 1000W 48V AC to DC Converter Divider

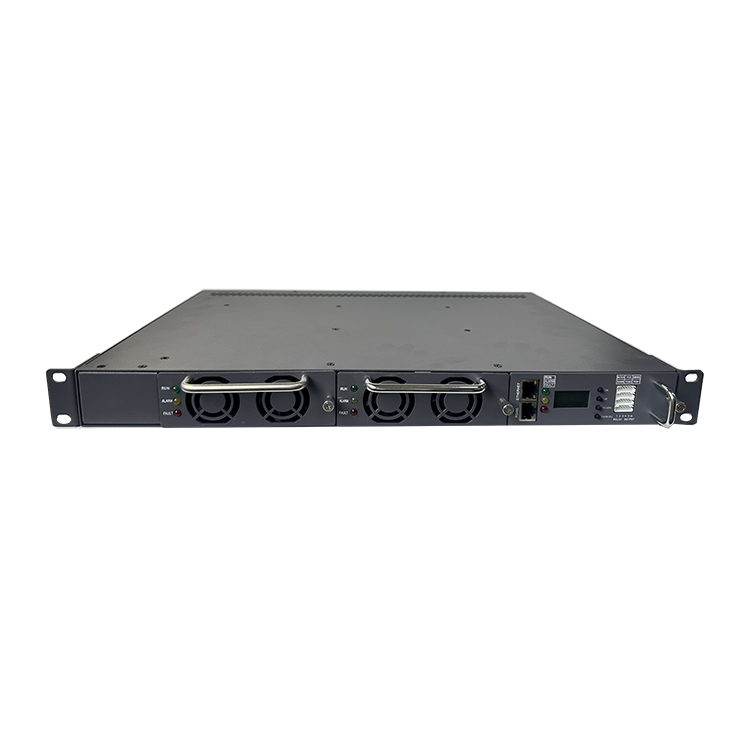

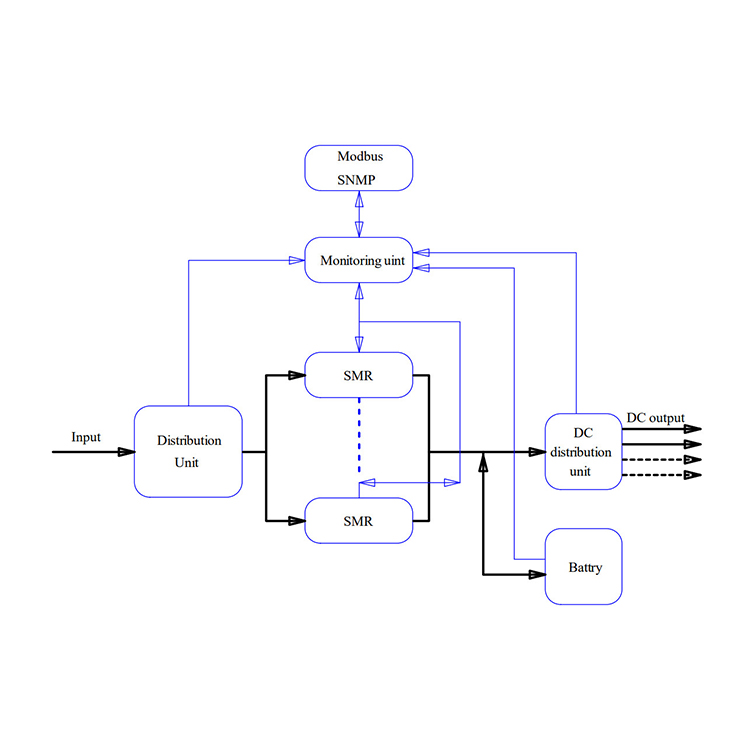

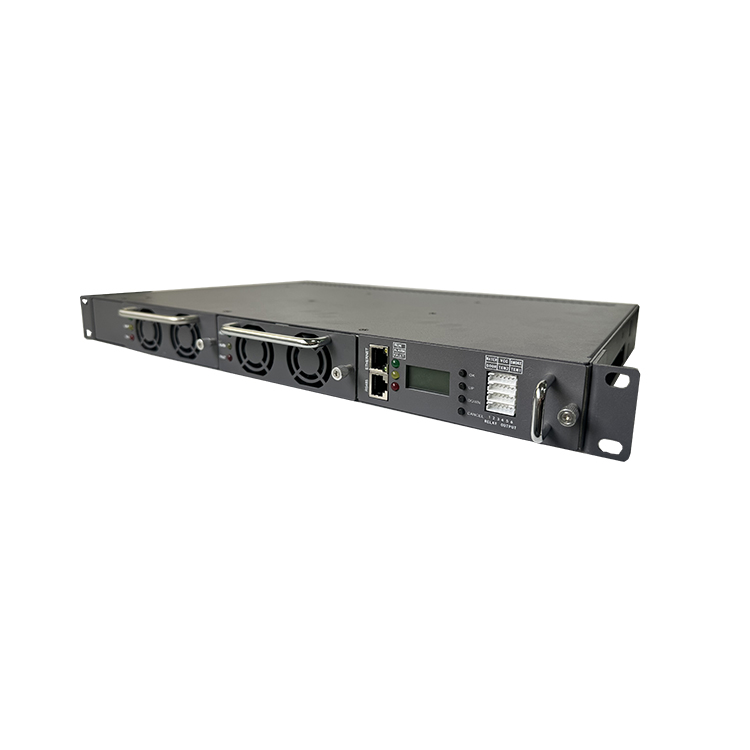

High Efficiency 1000W 48V AC to DC Converter Details 1 High Efficiency 1000W 48V AC to DC Converter Details 2 High Efficiency 1000W 48V AC to DC Converter Details 3
High Efficiency 1000W 48V AC to DC Converter Details 4
Hot Sale
Hot Sale Switching Power Supply
Company Information
Company Information Factory Show 1 Company Information Factory Show 2 Company Information Factory Show 3
High Efficiency 1000W 48V AC to DC Converter Specifications High Efficiency 1000W 48V AC to DC Converter Parameters
High Efficiency 1000W 48V AC to DC Converter Performance High Efficiency 1000W 48V AC to DC Converter Installation
Contact Us
Contact Us Banner
Frequently Asked Questions
What is the input voltage range for this AC to DC converter?
The EVS4860 features a wide operating range of AC input voltage, supporting inputs from 90V to 280V AC, making it suitable for varying power grid conditions.
How efficient is this 48V industrial switching power supply?
By utilizing zero current/voltage switching technology, this 1000W converter achieves a high efficiency of 96% under optimal conditions, with a minimum rated efficiency of >93.2%.
Does this power supply unit support hot-swapping?
Yes, the converter is hot-swappable, allowing for convenient system maintenance and replacement without shutting down your equipment.
What protective features are built into this converter?
The unit is equipped with multiple protection mechanisms, including input over/under voltage protection, output over voltage protection, output over current protection, and output short circuit protection.
Does this system support automatic current sharing?
Yes, it features auto current sharing technology, which facilitates easy parallel connections and current balancing when multiple power modules are integrated.
What are the physical dimensions and mounting specifications of the EVS4860?
The dimensions of the unit are 482.6mm in length, 238mm in width, and 43.6mm in height. It is specifically designed for embedded mounting configurations.
