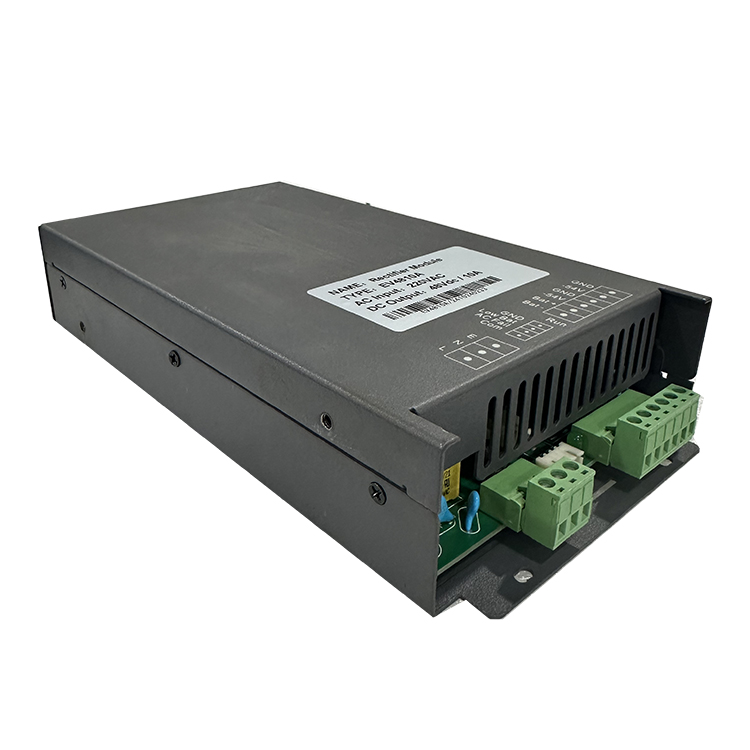

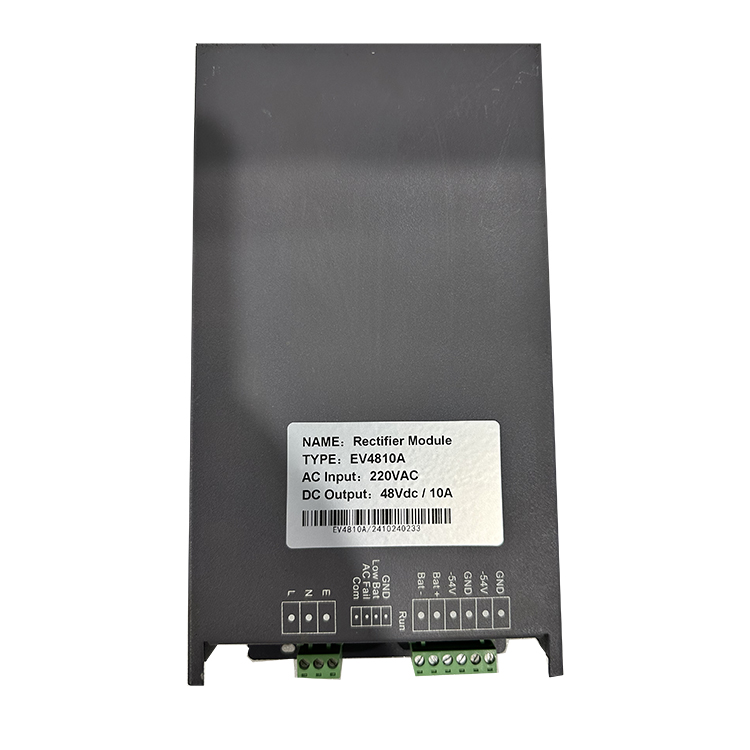

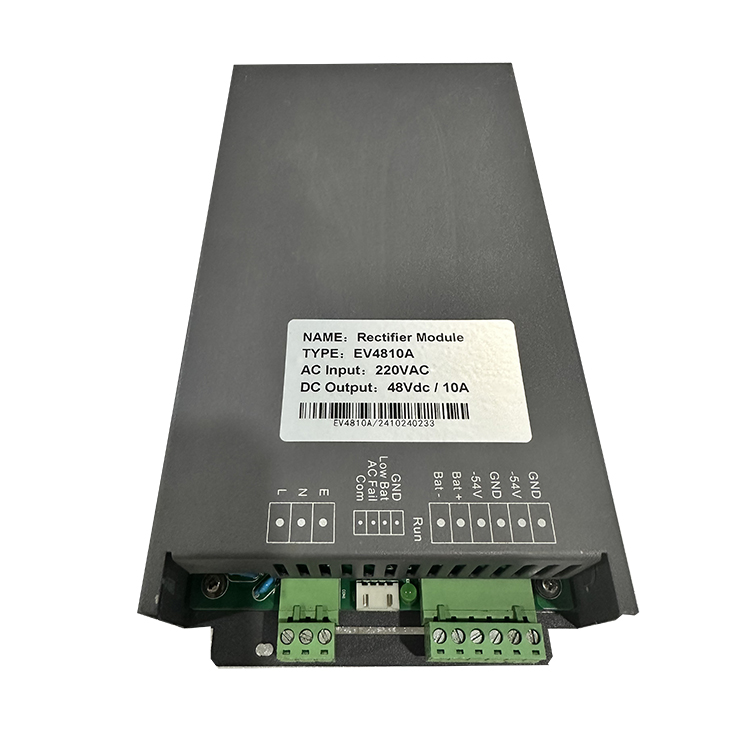

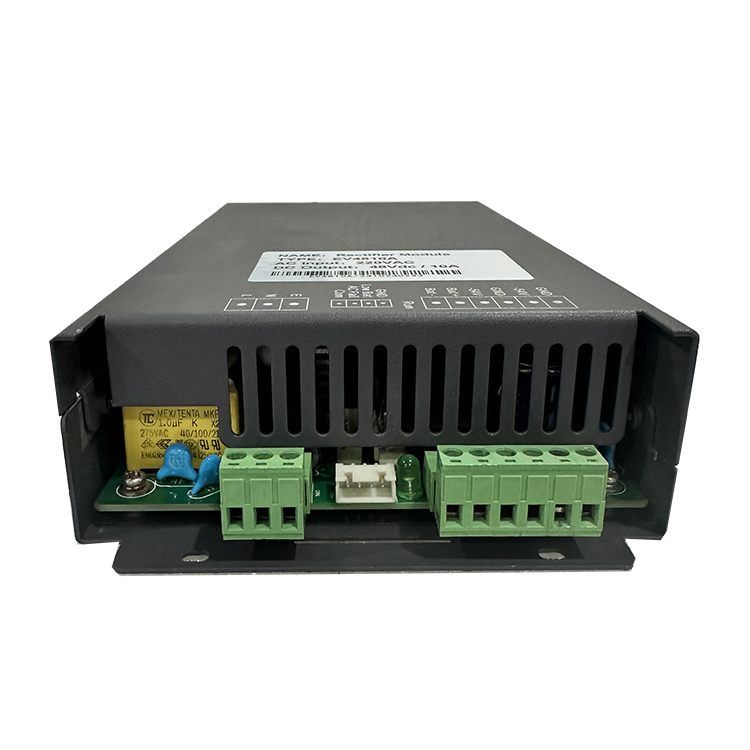

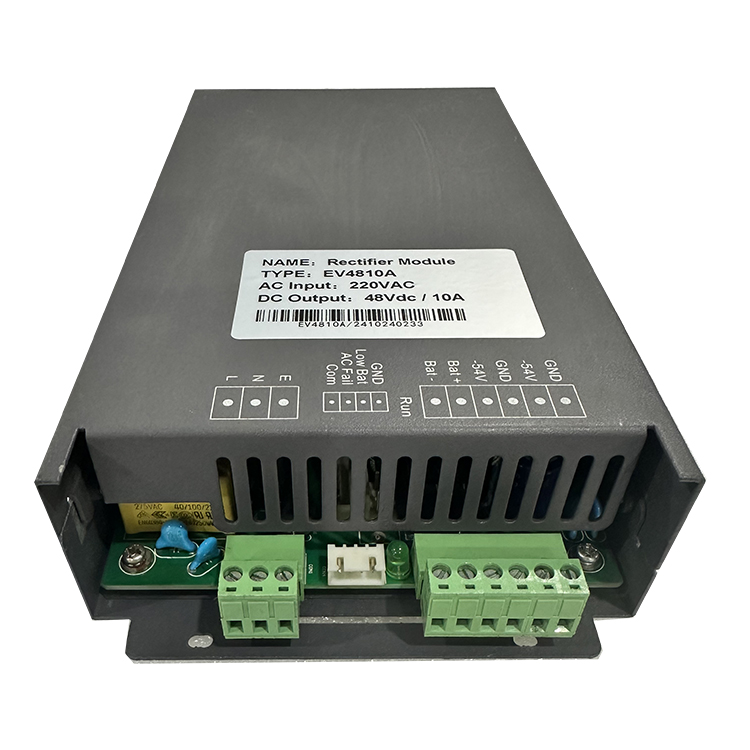

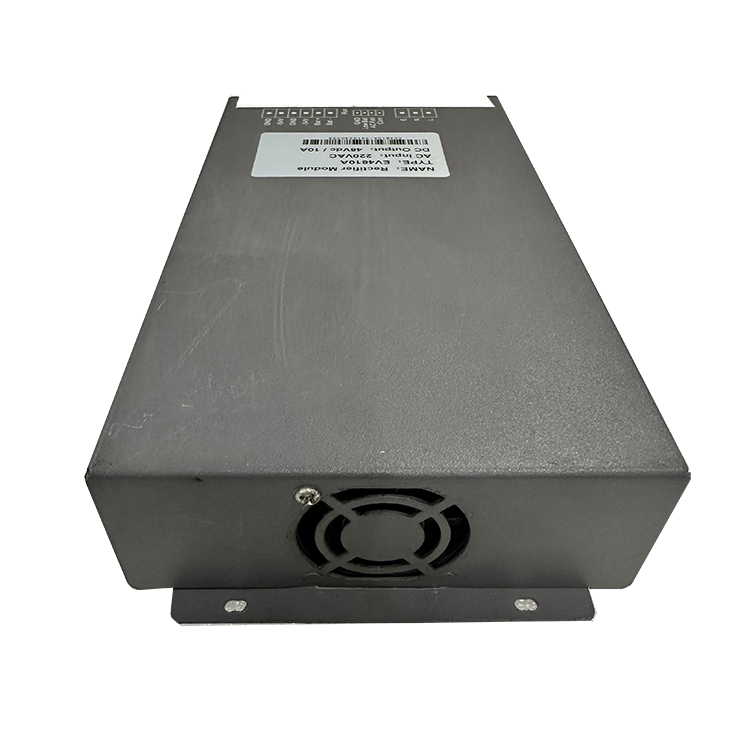

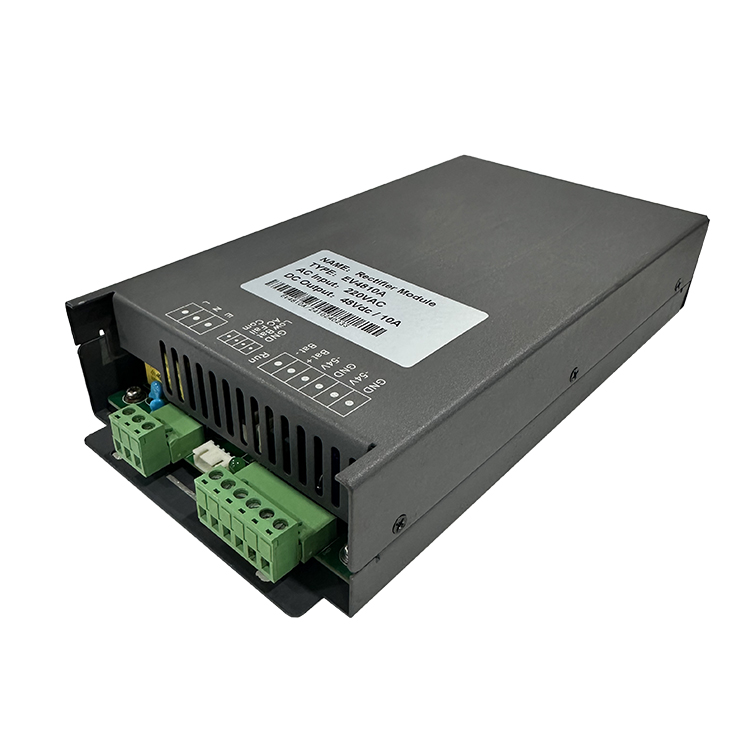

1. What is the efficiency rating of the 48V 10A Rectifier Module?
The module utilizes advanced soft-switching technology to deliver highly efficient power conversion, exceeding 93.2% efficiency under rated working conditions.
2. What happens if the input voltage drops below the rated 170VAC limit?
If the input voltage drops below 170VAC (within the 90~290VAC working range), the rectifier module will continue to operate safely but will output current in a derating manner.
3. What communication protocol is used for remote operations?
This battery charger rectifier module supports remote management and switching adjustments through a standard RS485 control interface.
4. Can multiple modules be operated in parallel?
Yes. Multiple rectifier units can be connected in parallel configurations via a built-in current sharing bus, facilitating scalable power setups for larger distribution demands.
5. What safety protections are built into the module?
The system is equipped with multiple layers of safety compliance, including built-in input over/under-voltage protection, output over-current protection, and output over-voltage protection.
6. What is the operational temperature threshold for this product?
It has a wide normal operating temperature range of -33ºC to +55ºC. However, it can operate in extended temperature settings up to +65ºC with appropriate thermal management and output considerations.
