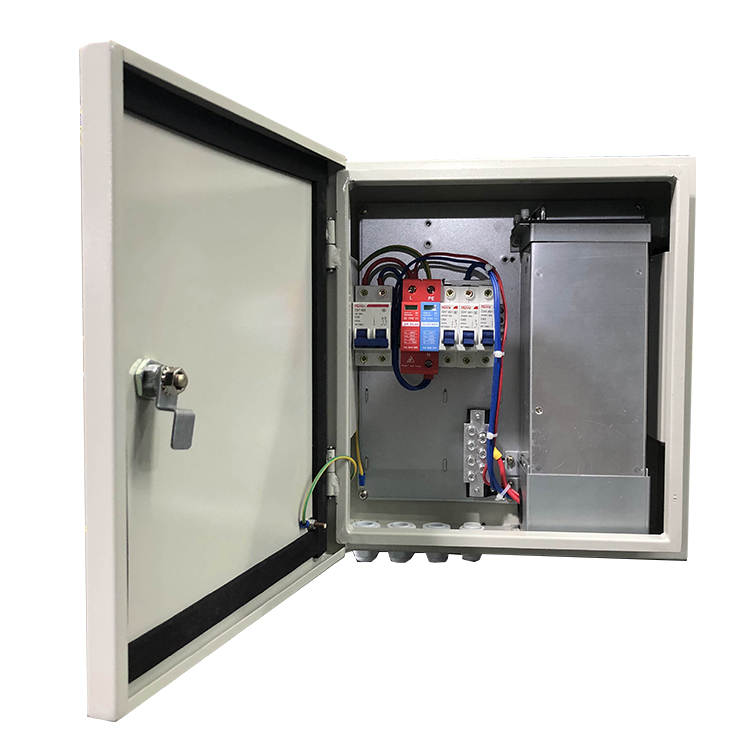

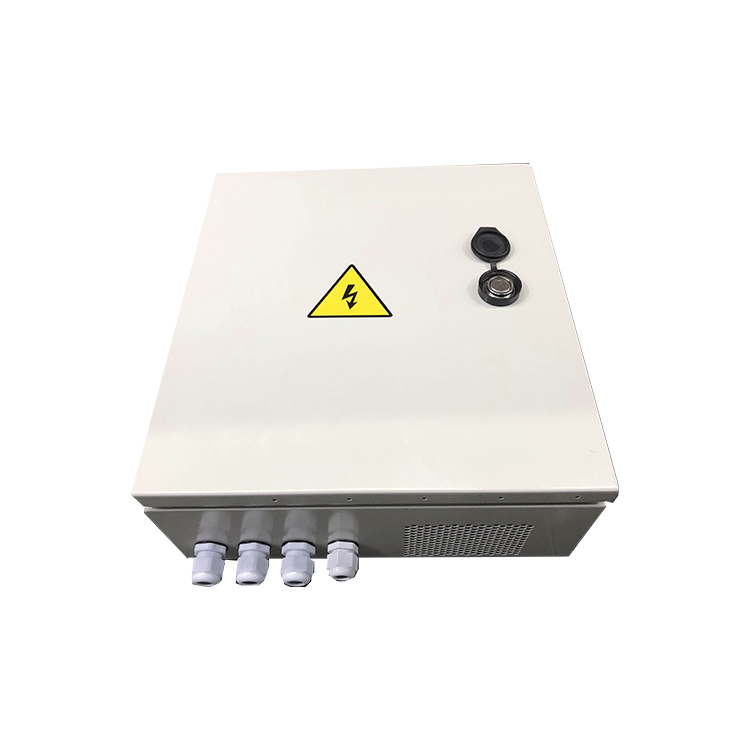

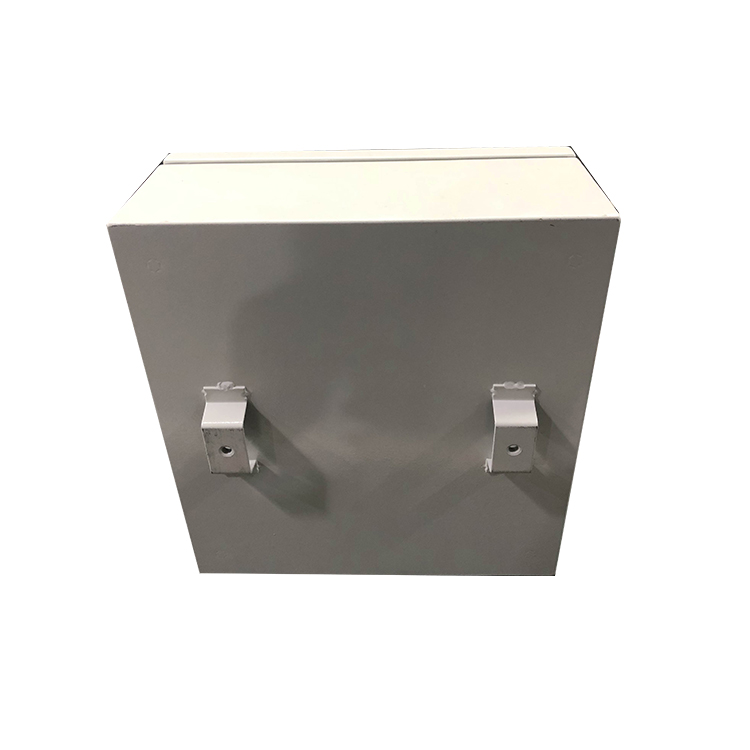

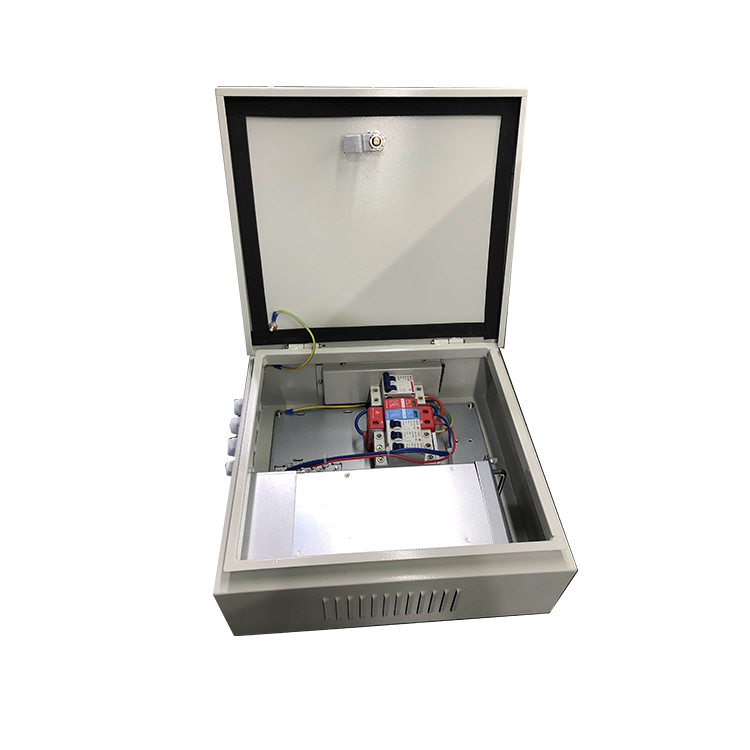

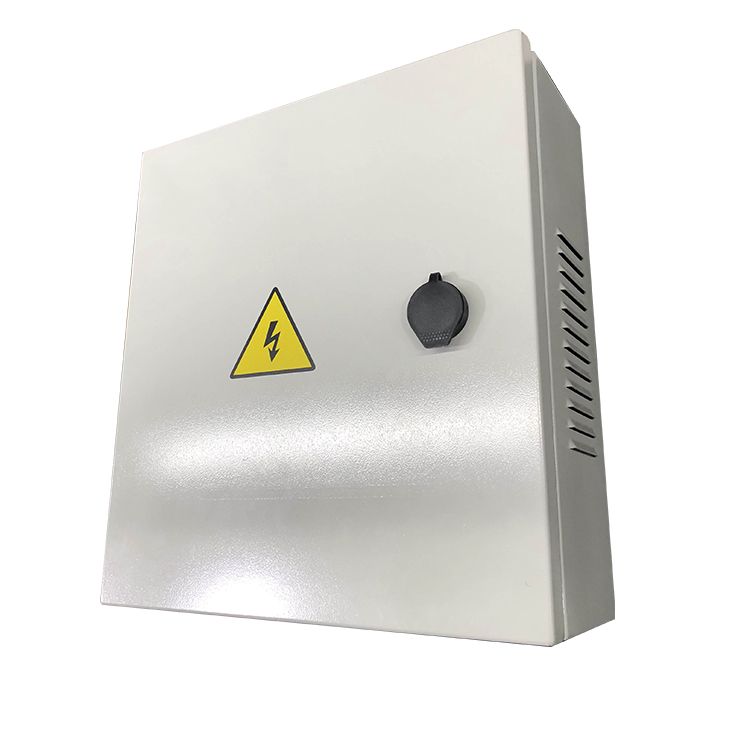

Outdoor 48V AC-DC Transmission Power Supply Cabinet 220V Input 30A Single Output Industrial Use 60Hz Switching Power Supply

1 / 5

Outdoor 48V AC-DC Transmission Power Supply Cabinet 220V Input 30A Single Output Industrial Use 60Hz Switching Power Supply

Send Inquiry

Product Description

Our Products

Features with the following specifications:

Wall mount power supply system power supply, with the following features and functions:

Wide Voltage Input Range: 80 ~ 300Vac / 100-400Vac, suitable for all countries in the world of AC power grid input.

High Efficiency: The system has a high power factor greater than 0.94.

Robust Protections: Includes input under voltage, input voltage, output voltage, output current limiting, output short circuit, and over temperature protection.

Ultra-Low Radiation: Adopted advanced electromagnetic compatibility design, the rectifier module meets requirements for conducted and radiated emissions.

Outdoor Power Supply Performance Index Input
Parameter	Min.	Rated	Max.	Unit	Note
Rated working voltage range	-	110/220	-	Vac	-
Input voltage range	90	220	290	Vac	Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Output voltage range	42	48	58	Vdc	-

Hong Kong Electronics Fair on 2015-11-14 October

CES, 7-10 Jan, 2014, Enthusiasm for customer to answer questions

On IFA, 6-13 September, 2013

13 - 16 April, 2012, on Hong Kong

Overview

Certification

Process

Hot Sale

Frequently Asked Questions

What is the input voltage range for this power supply system?

This system supports a wide input voltage range of 80 ~ 300Vac or 100-400Vac, making it fully compatible with various AC power grids worldwide.

What safety protection features are integrated into the system?

The system features comprehensive built-in protections, including input under-voltage, input over-voltage, output over-voltage, output current limiting, output short-circuit, and over-temperature protection.

What is the output voltage range of this outdoor power supply?

The rated output voltage is 48Vdc, with an adjustable output range spanning from 42Vdc to 58Vdc to meet different industrial equipment needs.

Does this system comply with radiation and electromagnetic compatibility standards?

Yes. The rectifier module utilizes advanced electromagnetic compatibility design, guaranteeing ultra-low radiation that satisfies conducted emission standards.

Is this power supply suitable for industrial outdoor environments?

Absolutely. It is specifically designed as a wall-mounted/cabinet outdoor power supply system, engineered to withstand rugged external operating environments with high efficiency and power factor exceeding 0.94.
