Outdoor telecom box features with the following specifications:

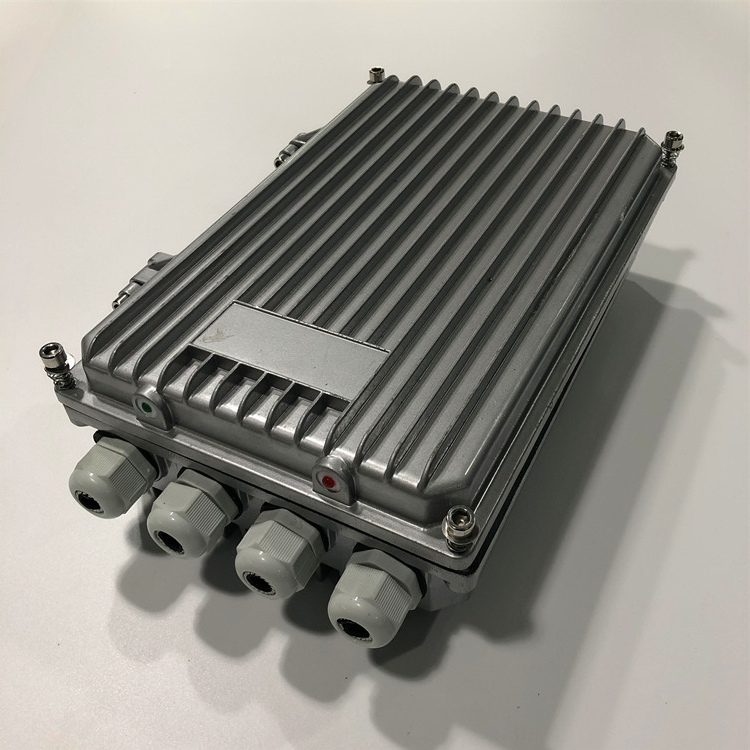

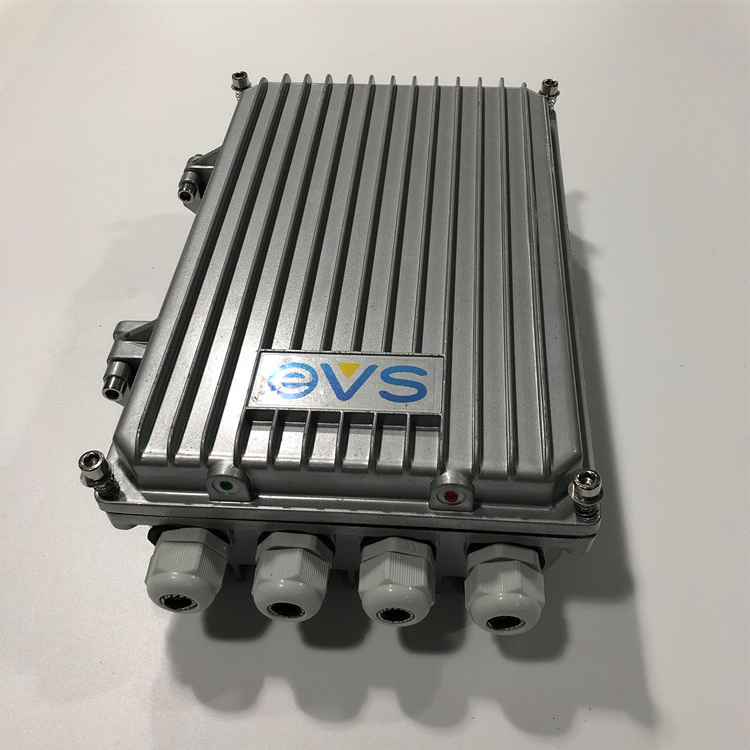

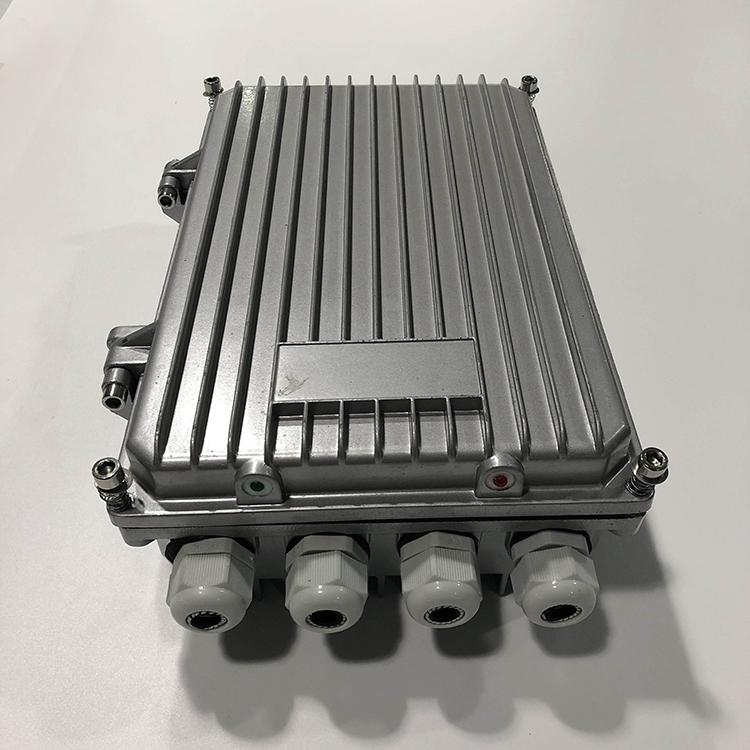

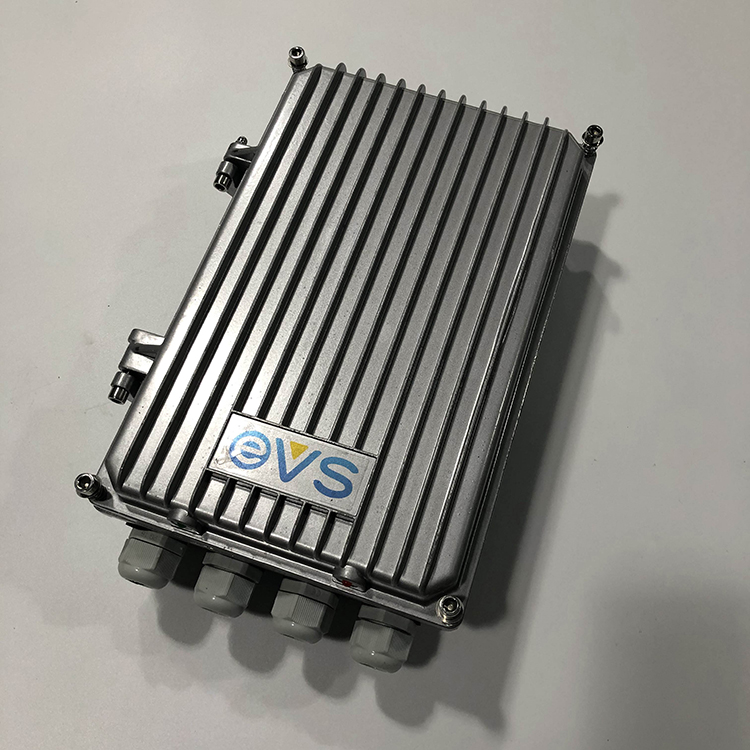

Evs-1500w is a kind of AC / DC (or DC / DC) outdoor telecom box with single output. The outdoor telecom box adopts the latest circuit design, with compact structure and reliable performance.
The whole machine has high stability precision and high output efficiency. Wide range of input voltage, input with over-voltage protection, output with short-circuit protection, over-current protection and over temperature protection, cooling system adopts natural heat dissipation. The whole power supply is designed in strict accordance with the requirements of safety regulations, and meets the requirements of information technology equipment safety standards.
Evs-1500w outdoor telecom box features:
- D-level lightning protection capability
- Outdoor high dust-proof and waterproof design
- Protection grade IP65
- Direct contact heat dissipation at the bottom
- Metal shell construction
- Power shell and cable connector equipped with anti-off screws
- Supports four installation methods: wall hanging, holding pole, steel belt holding pole, and landing
| Outdoor Telecom Box Performance Index Input |
| Parameter |
Min. |
Rated |
Max. |
Unit |
Note |
| Rated working voltage range |
- |
110/220 |
- |
Vac |
- |
| Input voltage range |
90 |
220 |
290 |
Vac |
- |
| Output voltage range |
42 |
53.5 |
58 |
Vdc |
- |
Hong Kong Electronics Fair on 2015-11-14 October
CES,7-10 jan,2014,Enthusiasm for customer to answer questions
On IFA,6-13 September,2013
13 - 16 April,2012,on Hong Kong
Frequently Asked Questions
What type of system is the Evs-1500w outdoor telecom box?
The Evs-1500w is an AC/DC (or DC/DC) outdoor telecom box featuring a single output configuration with the latest circuit design, a compact structure, and highly reliable performance.
What protection features does the outdoor telecom box have?
It features input over-voltage protection, output short-circuit protection, over-current protection, over-temperature protection, and D-level lightning protection capability.
What is the IP protection rating of this box?
The outdoor telecom box has an IP65 protection grade, making it highly dust-proof and waterproof for outdoor installations.
How does the Evs-1500w cool itself?
The cooling system uses natural heat dissipation, designed specifically with direct contact heat dissipation at the bottom of the unit.
What installation methods are supported?
The system supports four flexible installation options: wall hanging, holding pole, steel belt holding pole, and landing mounting.
What is the working input and output voltage range?
The rated input working voltage range is 110/220 Vac (input range of 90-290 Vac), and the output voltage range is 42-58 Vdc (with a rated output of 53.5 Vdc).
