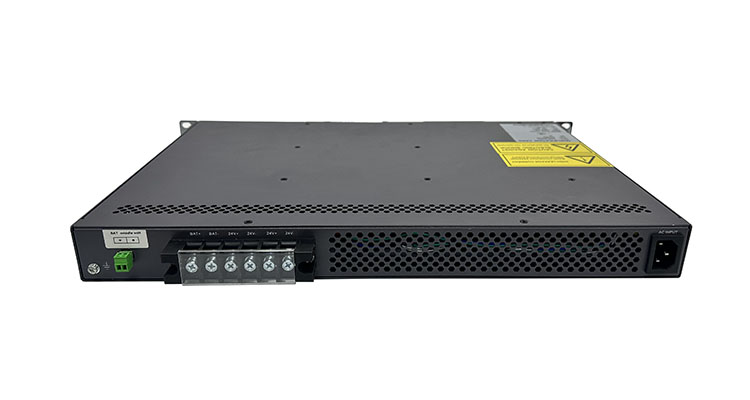

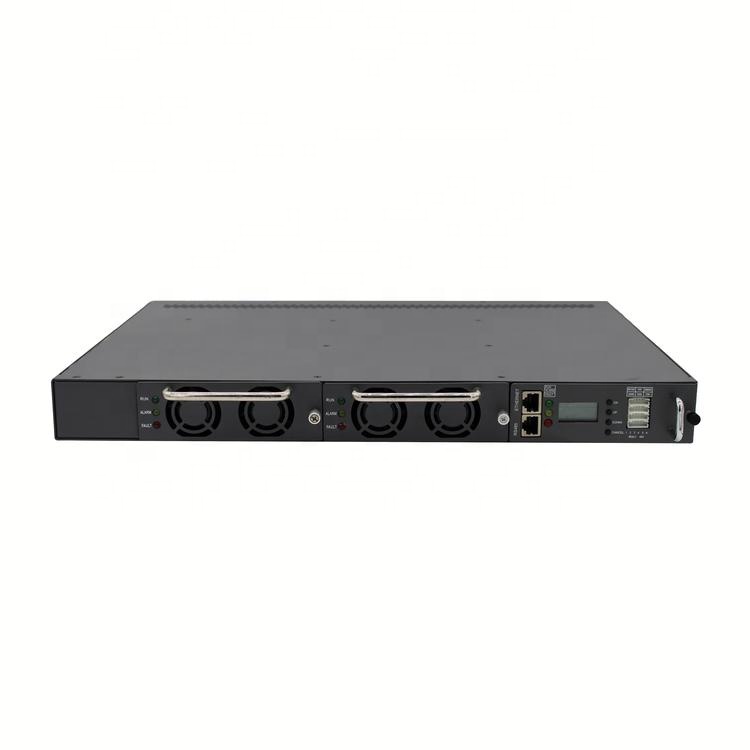

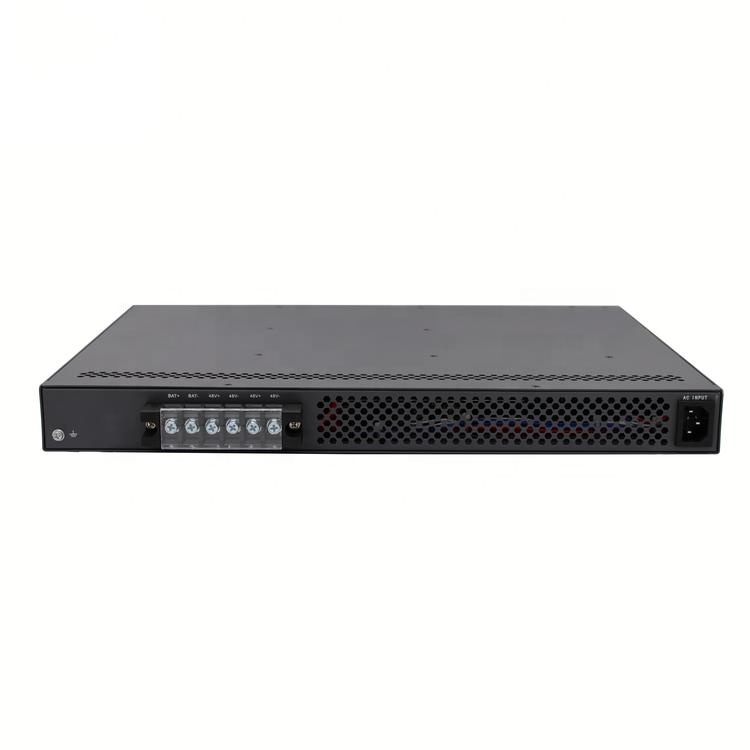

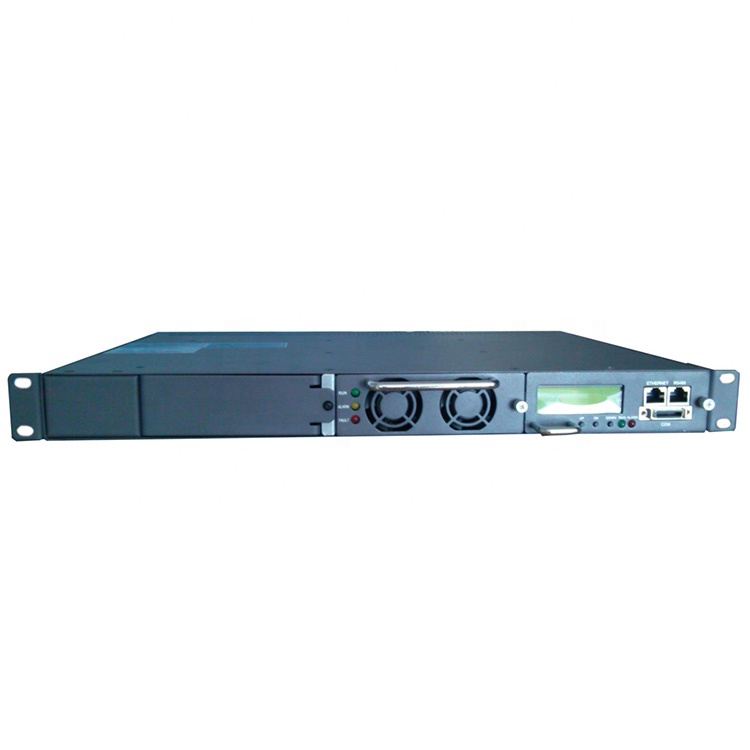

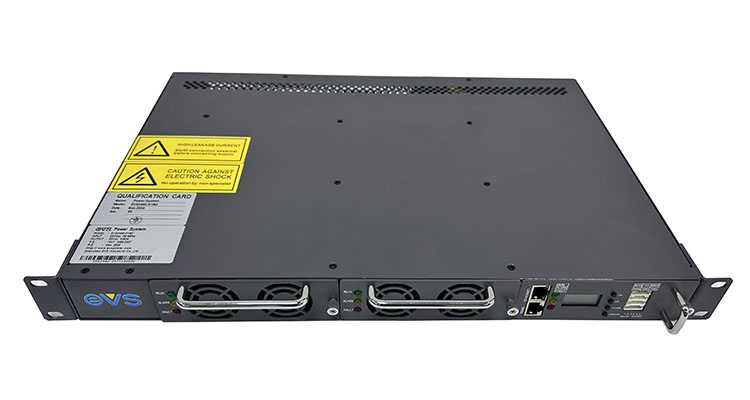

36v power supply, Nickel chromium battery charger
36v charger is designed for communication systems, featuring an output voltage of 36V and output current ranging from 0-30A. Built-in protection includes input over/under-voltage protection, output over-current protection, and output over-voltage protection.
Nickel chromium battery charger performance index:
EVS Series™ 1U Rack Mount AC to DC 36v battery charger Switching Power Supplies is designed to satisfy highly demanding power needs with optimal efficiency and stable output.

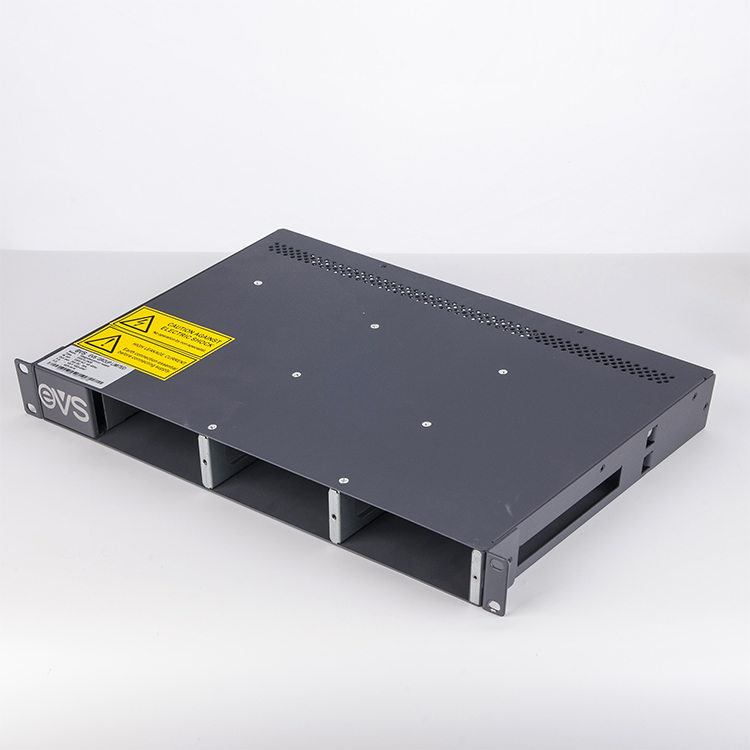

The EVS Power Series™ is a unique and highly reliable power supply series. It can be configured as a single unit or a fully redundant power supply system. Optimized for Universal AC to DC power supply applications, these units are suitable for operation globally.
An efficient, reliable, and cost-effective power configuration for various industrial AC to DC requirements.
| Input Voltage | Universal 80VAC to 300VAC |
| Input Frequency | 45Hz to 65Hz |
| Operational Temperature | -25°C to 55°C |
| Storage Temperature | -20°C to 85°C |
| Cooling | Free Air Convection |
| Overload Protection | Auto-Recovery |
| Efficiency | 80-90% Typical |
| DC OK | TTL Logic / RS485 / SNMP Interface / Status LEDs |
| Output Power | 3600W |
| Output Type | Single |
| Input Voltage | 220v, 90~280VAC |
| Output Voltage | 36v |
| Output Frequency | 50Hz/60Hz |
| Output Current | 60A |
| Type | 3600W Industrial switching power supply |
| Efficiency | 92% |
| Application | Telecom Equipment / Battery Charging |
| Use in | Exchange room, server room, base station, data communication |
| Size | 550*415*153MM |

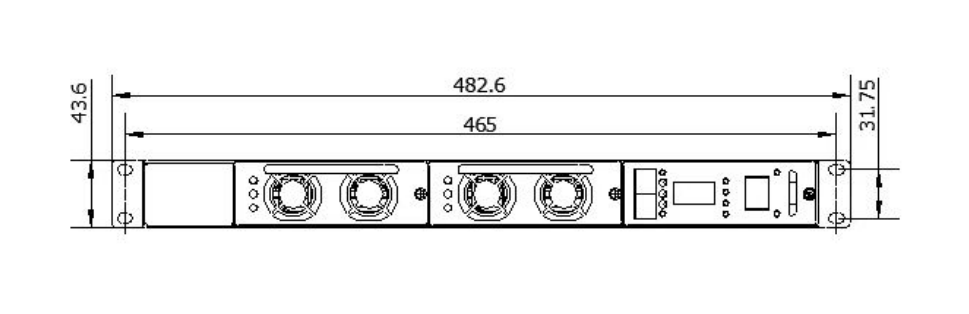

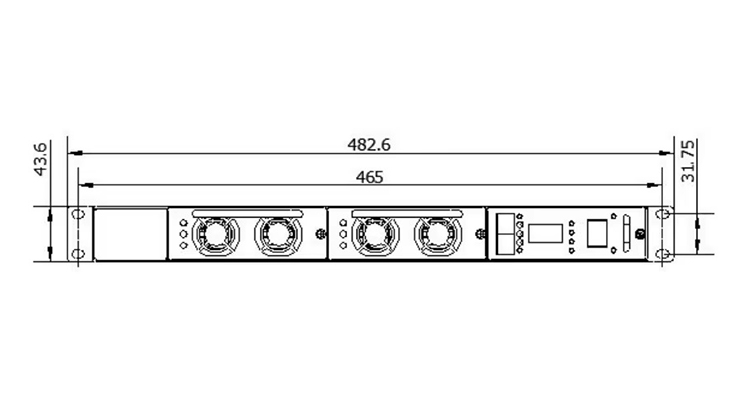

Machine size: W (482.6MM) * L (280mm) * H (43.6mm)
This power supply is highly suited for telecommunications, computer peripherals, networking, voice/analog communications, industrial instrumentation, utility power networks, and data acquisition systems.
Yes, it functions efficiently as a 36V Nickel Chromium battery charger, providing highly stable output parameters optimized for critical charging requirements.
The device features comprehensive protection mechanisms, including input over/under-voltage protection, output over-current protection, output over-voltage protection, and overload protection with auto-recovery functionality.
Yes, it features integrated RS485 and SNMP remote management interfaces, allowing users to remotely monitor system states, alarms, and performance indexes.
The power supply design is highly efficient, delivering typical efficiency values between 80% to 90%, and reaching up to 92% under optimal operations.
The compact unit measures exactly 482.6mm in width, 280mm in length, and 43.6mm in height (standard 1U low-profile form factor).
