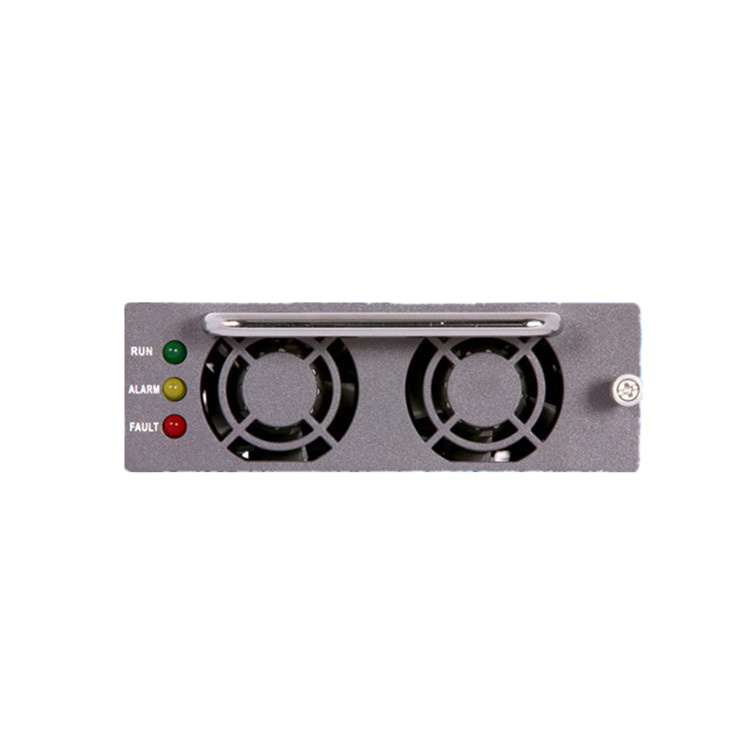

1U Rack Mounted 19 Inch DC-DC Converter 12V DC to 48V DC 20A Output Current Single Output for Industrial Use

1 / 5

1U Rack Mounted 19 Inch DC-DC Converter 12V DC to 48V DC 20A Output Current Single Output for Industrial Use

Send Inquiry

Product Description

1U Rack Mounted 19 Inch DC-DC Converter Specs

1. 12v dc to 48v dc converter features

DC Input Specifications

Rated DC input voltage: 12V
Voltage variation range: 11V~15Vdc

DC Output Specifications

Rated output voltage: 48V
Factory set voltage: 53.5V (adjustable)
Average charging voltage: DC56.4V
Floating charging voltage: 53.5VDC
Rated output current: 20A

Stabilization & Accuracy

Voltage regulation rate: ≤± 0.5%
Load adjustment rate: ≤± 0.5%
Voltage stabilization accuracy: ≤± 0.5%

Work Efficiency

Efficiency: Above 89%

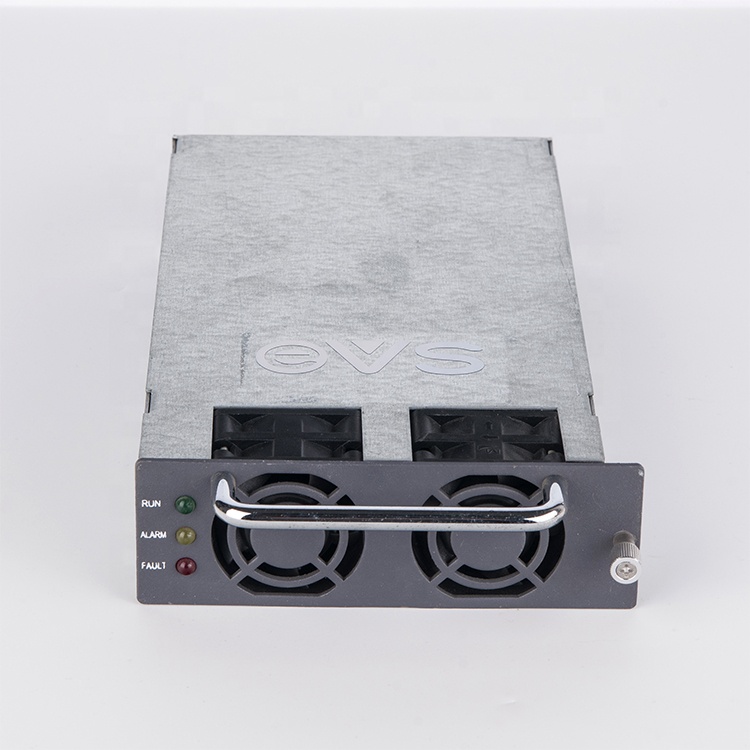

1U Rack Mounted 19 Inch DC-DC Converter 12V DC to 48V DC Detail View 1

1U Rack Mounted 19 Inch DC-DC Converter 12V DC to 48V DC Detail View 2

1U Rack Mounted 19 Inch DC-DC Converter 12V DC to 48V DC Detail View 3

2. 12v dc to 48v dc converter Configuration

Optional	Rectifier	Module number	Distribution	Monitor	Remark
Configuration	20A	1pcs	DC distribution: 12V input, Load output: 20A	Monitor	Specific index refer to module specification

Optional

Rectifier

Module number

Distribution

Monitor

Remark

Configuration

20A

1pcs

DC distribution: 12V input,

Load output: 20A

Monitor

Specific index refer to module specification

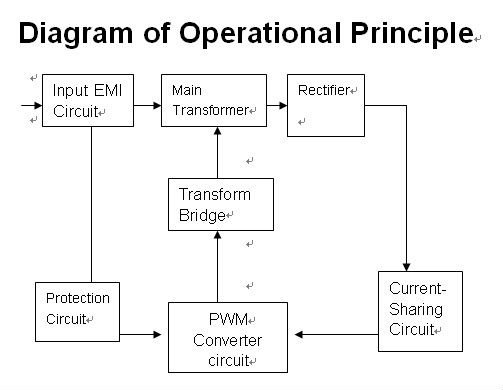

3. dc dc step up converter work principle

dc dc step up converter work principle diagram

4. dc dc step up converter performance index

Parameter	Min.	Rated	Max.	Unit
Input
Rated working voltage range		12		Vdc
Input voltage range	11	13.8	15	Vac

Parameter	Min.	Rated	Max.	Unit	Note
Output
Output voltage range	42	53.5	58	Vdc
Output current range (max.current)	0		22	A
Regulation accuracy			±1	%
Load regulation			±1	%
Source regulation			±1	%
Current sharing regulation			±5	%
Ripple (peak – peak value)			200	mv	Network 20MHz testing.
Output efficiency	89	90		%	53.5Vdc Input

1U Rack Mounted 19 Inch DC-DC Converter separator image

1U Rack Mounted 19 Inch DC-DC Converter Industrial Use View

hot sale

Why choose us

Why choose us certification and production 2

Frequently Asked Questions (FAQ)

QWhat is the input voltage variation range for this 12V to 48V converter?

The converter operates on a rated 12V DC input, with an input voltage variation range of 11V to 15Vdc.

QCan the output voltage be adjusted, and what is its default setting?

Yes, the output voltage is adjustable. The factory set voltage is 53.5V DC, and it operates within an output voltage range of 42V to 58V DC.

QWhat is the rated working efficiency of this step-up converter?

This industrial-grade DC-DC converter offers high efficiency, typically reaching 90% (minimum 89%) when operating at a 53.5Vdc input.

QWhat standard mount configuration does this converter support?

This converter features a standard 1U Rack Mounted 19 Inch design, making it suitable for industrial rack cabinet installations.

QWhat are the voltage stabilization and regulation accuracy specifications?

The system provides highly stable outputs, featuring a voltage regulation rate of ≤± 0.5%, a load regulation rate of ≤± 0.5%, and an overall voltage stabilization accuracy of ≤± 0.5%.

QWhat is the rated and maximum output current capacity of this module?

The converter features a rated output current of 20A, with a maximum current capability of up to 22A under peak operating conditions.
