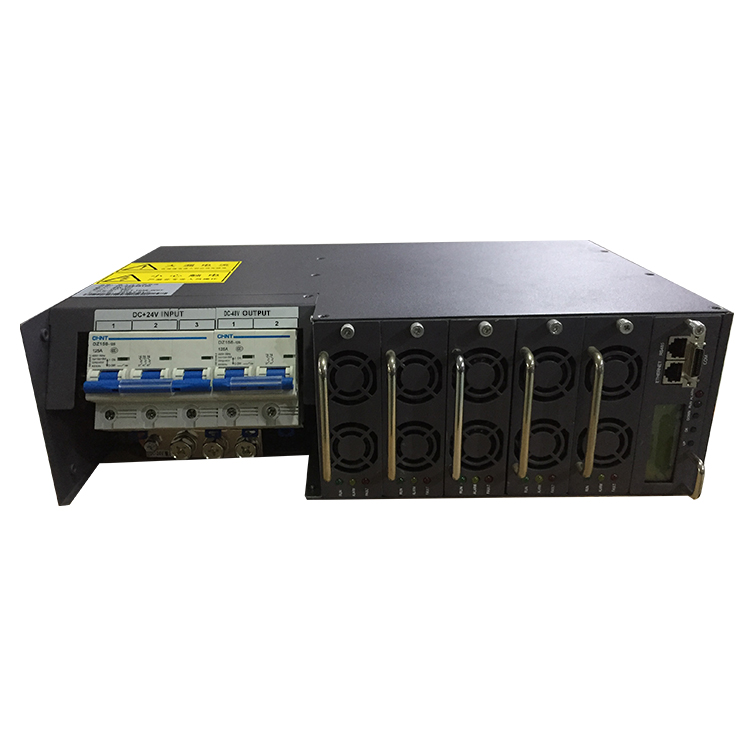

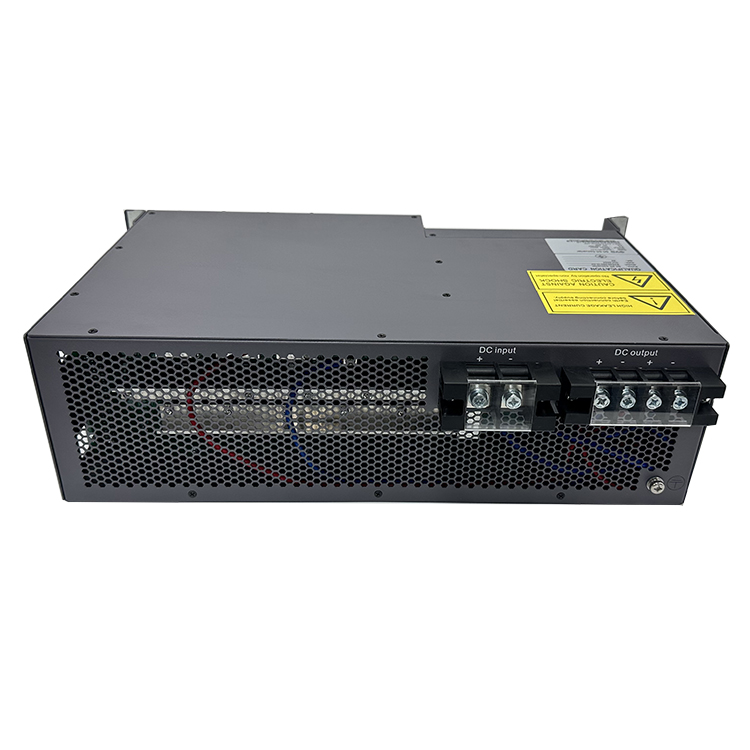

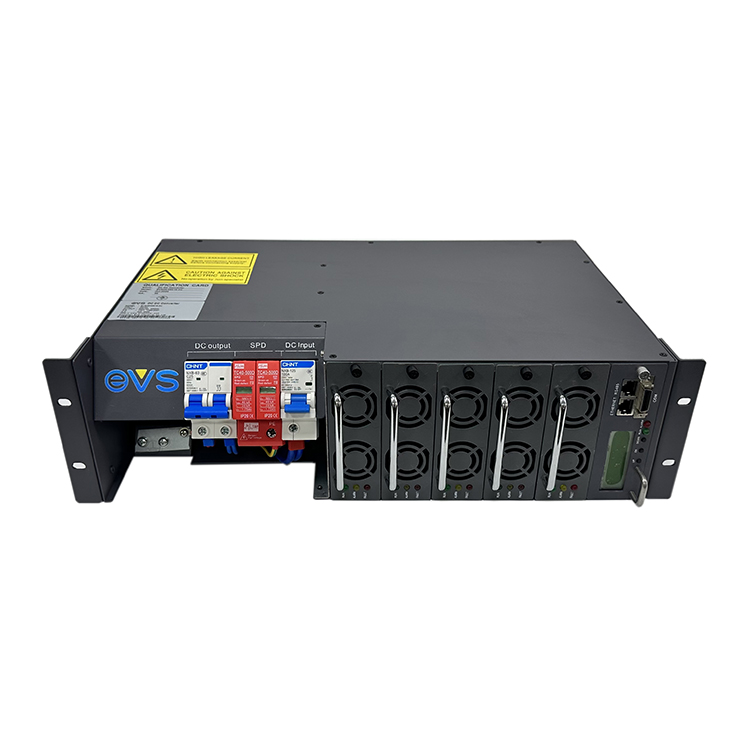

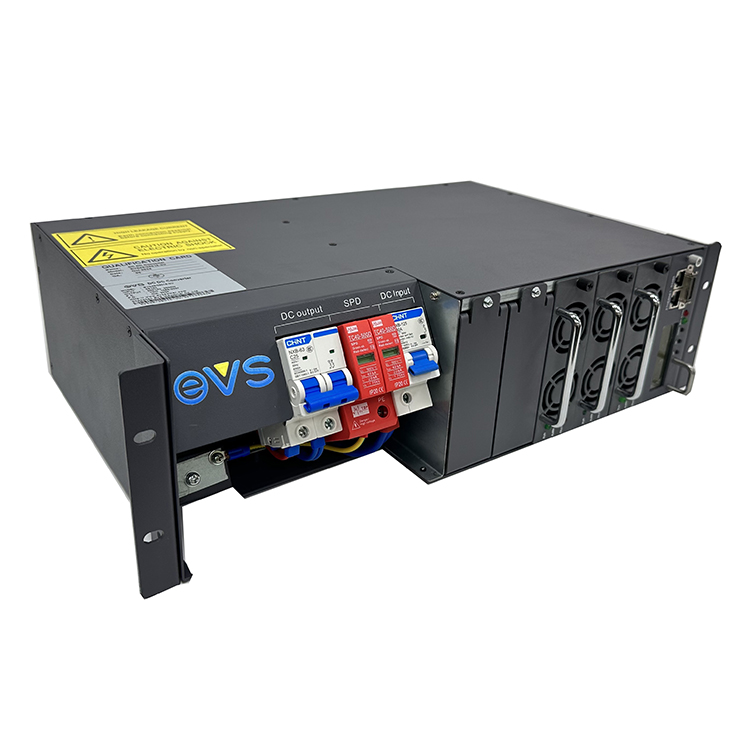

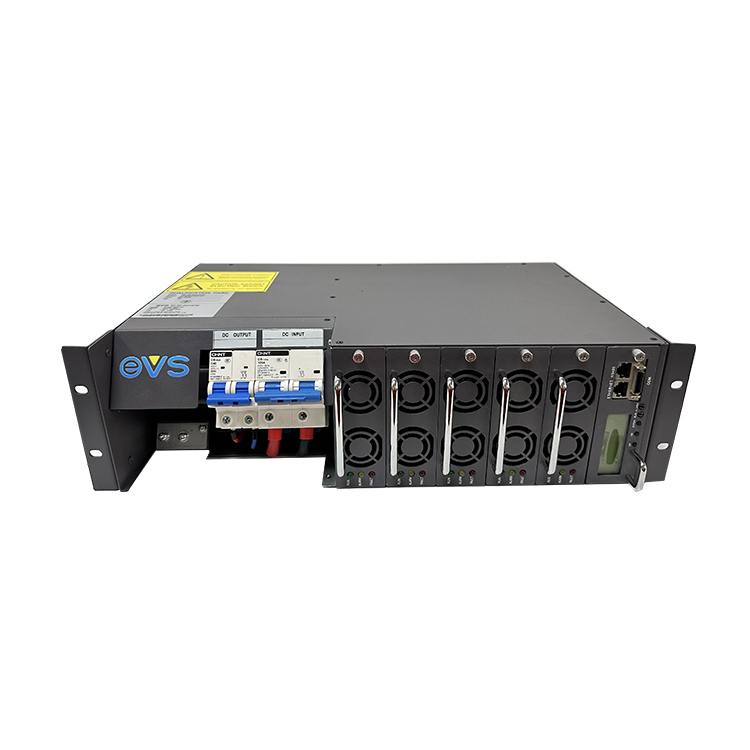

The module is designed with a high-frequency pulse width modulation technology. This 48V to 48V DC-DC power module is mainly used for voltage stabilization or isolation, with both input and output at 48V, suitable for communications, electricity, solar energy, and other fields.
| 100A 48V to 48V DC-DC Input | |||||||
| Parameter | Min | Typical | Max | Unit | Notes | ||
| Input vol range | 40 | 53.5 | 60 | Vdc | |||
| Input current | 0 | 90 | 120 | A | |||
| Output Specifications | |||||||
| Parameter | Min | Typical | Max | Unit | Notes | ||
| Output voltage range | 42 | 48 | 58 | Vdc | adjustable by monitoring | ||
| Output current range | 0 | 125 | A | ||||
| Output Power | 6000 | W | Output constant power and constant current protection; output current protection point (linear change with output voltage) | ||||
| Output efficiency | 89.5 | % | 53.5Vdc input | ||||
| Regulation accuracy | ±1 | % | |||||
| Load regulation rate | ±1 | % | |||||
| Source adjustment rate | ±1 | % | |||||
| Ripple (peak-to-peak) | ±1% | within rated input voltage and load, add 0.1uF ceramic capacitor and 10uF electrolytic capacitor each at the output end, oscilloscope bandwidth 20MH | |||||
| 48V to 48V DC Converter Protection Specifications | |||||
| Parameter | Min | Typical | Max | Unit | Notes |
| DC input overvoltage protection | 58 | 60 | 62 | Vdc | Self-healing |
| DC input overvoltage protection recovery | Vdc | Return difference is not less than 2V | |||
| DC input undervoltage protection | 38 | 40 | 42 | Vdc | Self-healing |
| DC input undervoltage protection is restored | Vdc | Return difference is not less than 2V | |||
| Input anti-reverse protection | Power does not turn on | ||||
| Output short-circuit protection | Long short circuit | Can be short-circuited for a long time and automatically recover | |||
Export standard packing: Carton or wooden package. Customized Package Acceptable.
3-15 days after confirming order. Detail delivery date should be decided according to production season and order quantity.
We offer you the best quality products and service. Win-win business is our first principle.
We are a professional manufacturer combining production and trade. Our product series cover high, middle, and low-level range products, highly used for all brands of switching power supplies, laptops, and other electronic products.
Yes, we are a professional manufacturer supplying OEM/ODM service.
1. Guarantee time: one year.
2. Spare parts: 0.3% spare parts will be shipped with your order.
3. Return policy: we can exchange goods if there is a quality problem.
1. Payment terms: L/C, T/T, Western Union, MoneyGram, PayPal.
2. Shipping terms: Ship, DHL, UPS, FEDEX, TNT, EMS.
3. Sample order delivered within 24 hours, order lead time within 3 days.
1. Excellent products (unique design, strict quality control).
2. Great service (OEM, ODM, after-sales services, fast delivery).
3. Professional business consultation.
