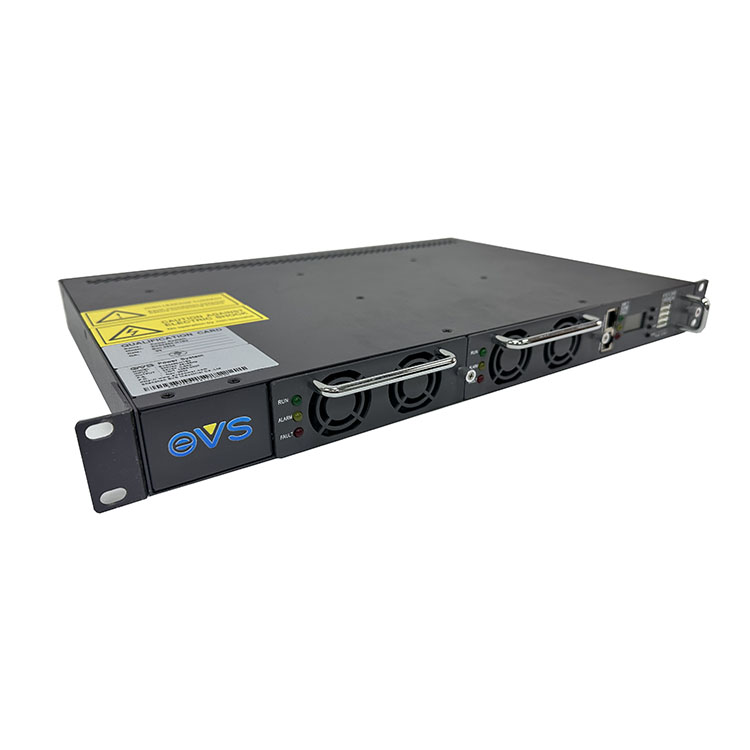

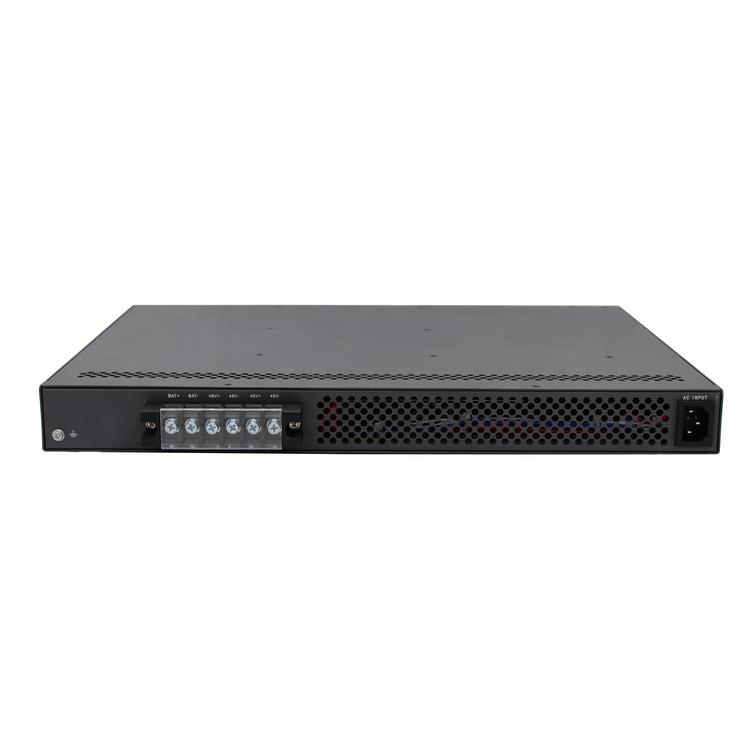

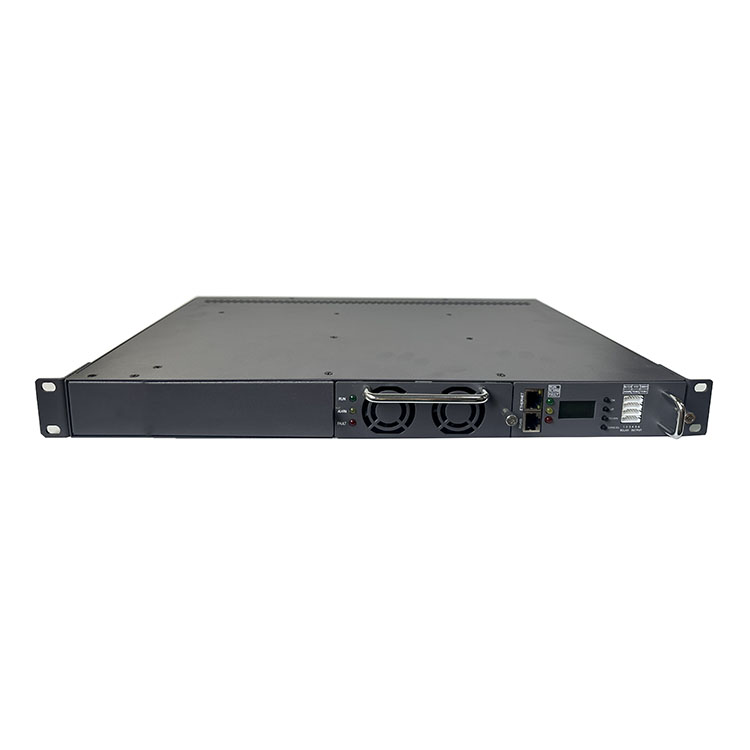

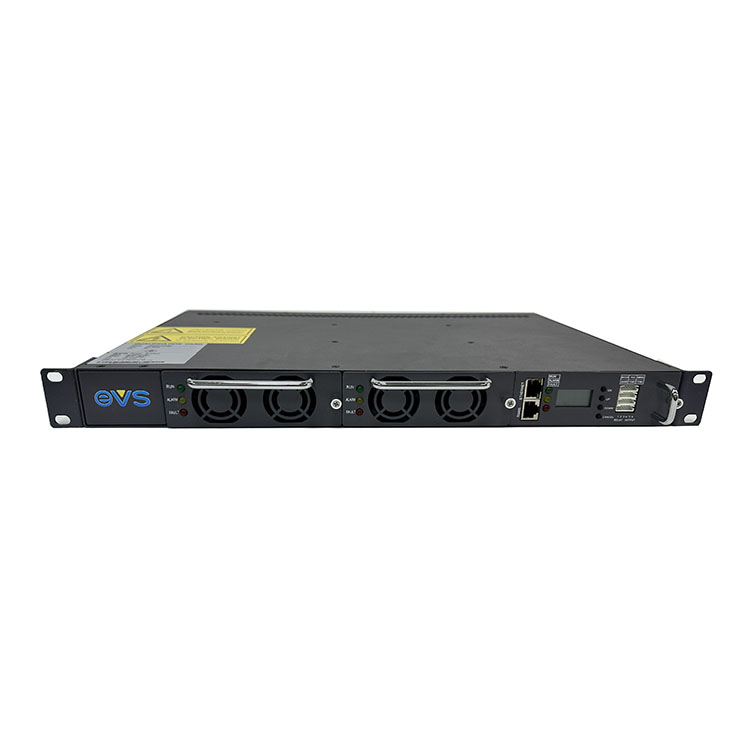

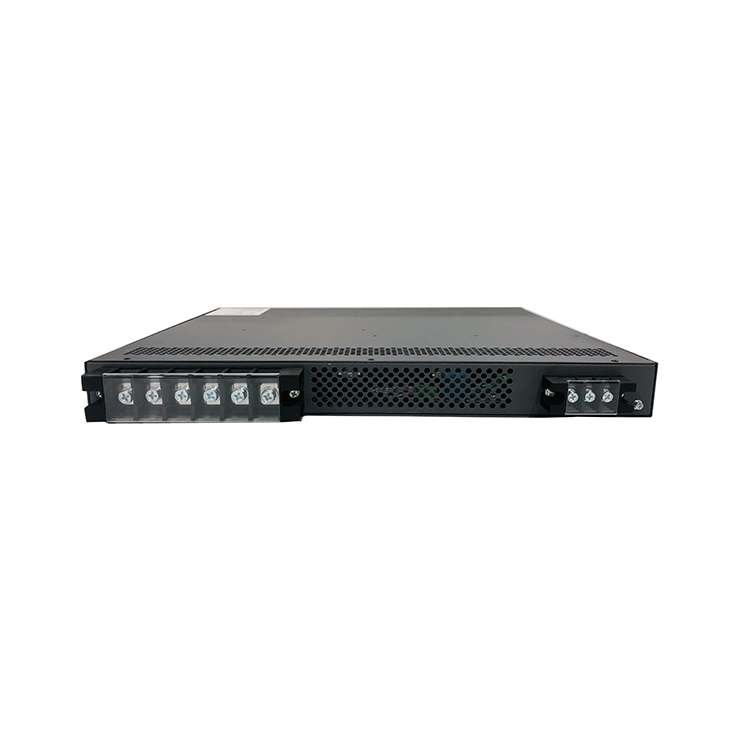

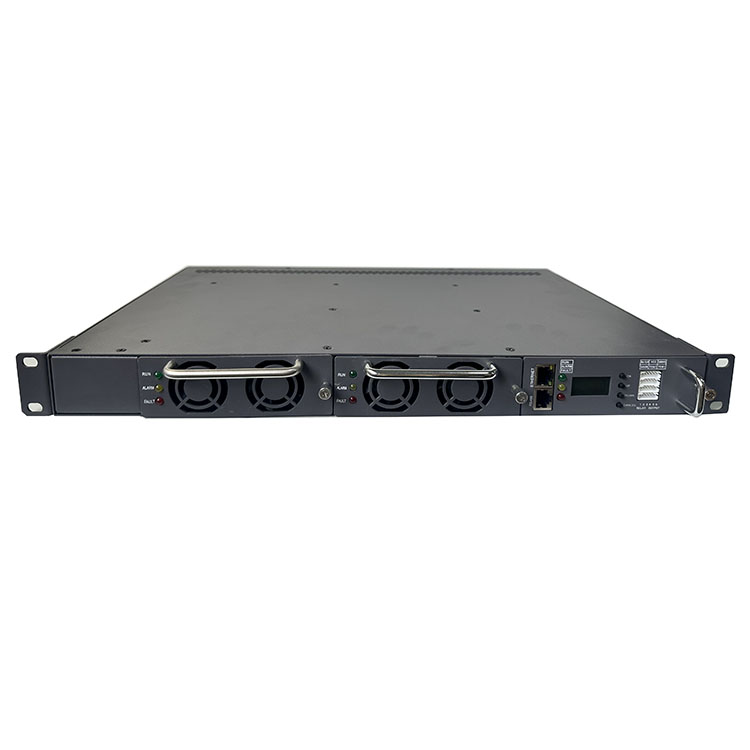

Designed to provide 48V to 12V power conversion for heavy-duty applications, the DC/DC converter offers reliable system performance and flexibility. The converter uses two buck power stages in parallel. The multiphase buck converter architecture uses interleaved timing to multiply power stage ripple frequency and reduce input and output ripple currents. It provides a fixed output to power 12V loads directly from a 56V or 48V source.
| Optional Configuration | Rectifier | Module max | Distribution | Monitoring | Remark |
|---|---|---|---|---|---|
| Configuration | 50A | 1-2pcs | DC/DC distribution: 48V input, Load output: 12V 100A |
Monitor | Specific index refer to manufacturer datasheet |
| Input | |||||
| Parameter | Min. | Rated | Max. | Unit | Note |
| Rated working voltage range | - | 48 | - | Vdc | - |
| Input voltage range | 42 | 48 | 58 | Vdc | - |
| Output | |||||
| Parameter | Min. | Rated | Max. | Unit | Note |
| Output voltage range | 11 | 13.8 | 15 | Vdc | - |
| Output current range | 0 | - | 100 | A | - |
| Regulation accuracy | - | - | ±1 | % | - |
| Load regulation | - | - | ±1 | % | - |
| Source regulation | - | - | ±1 | % | - |
| Current sharing regulation | - | - | ±5 | % | - |
| Ripple ( peak – peak value) | - | - | 200 | mv | Network 20MHz testing. |
A: The rectifier modules adopt full bridge soft switching technology, allowing the overall efficiency to reach above 90%.
A: The converter supports a wide normal operating input voltage range of 40Vdc to 60Vdc, with a rated input of 48Vdc.
A: Yes. The rectifier module features a damage-free hot insert and pull technology, allowing replacements to be completed in less than 1 minute.
A: Yes, the system supports mounting against the wall for space-saving operation and maintenance.
A: The system design fully complies with international safety standards EN60950 and GB4943.
A: The peak-to-peak ripple is limited to a maximum of 200 mV under standard 20MHz network testing conditions.
