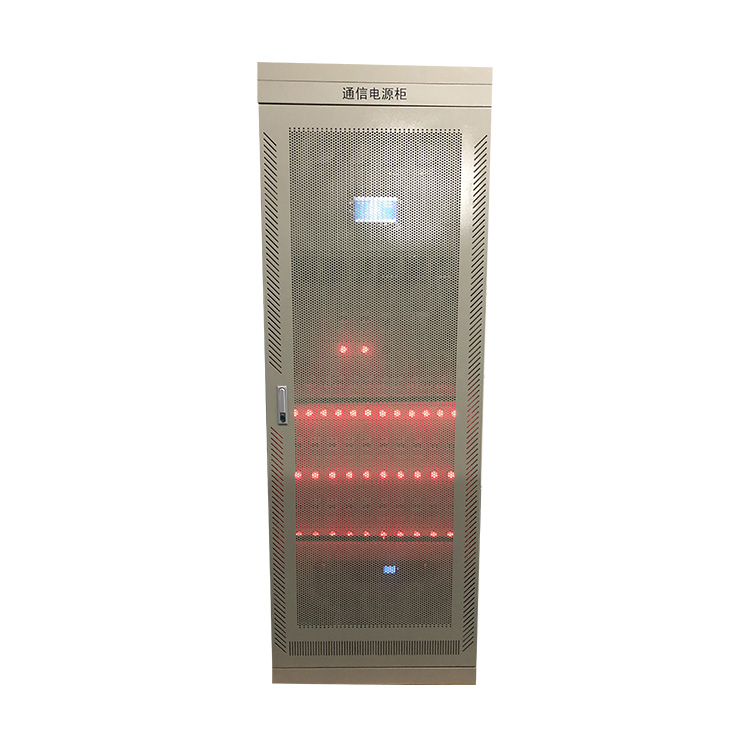

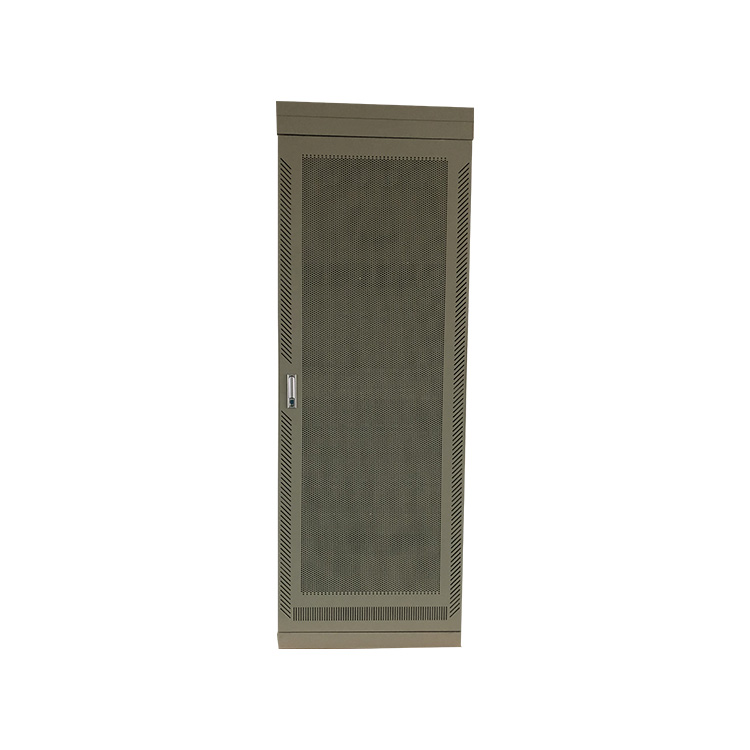

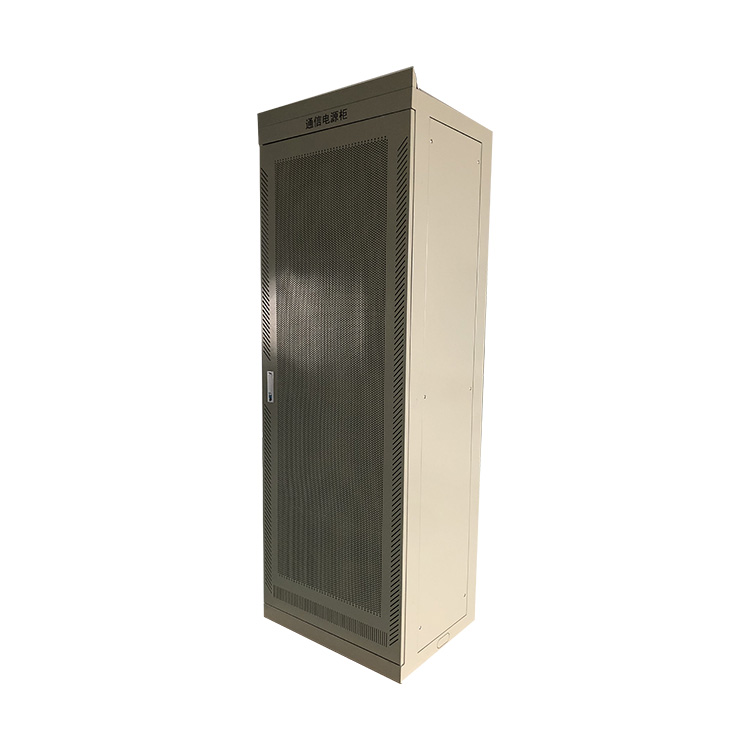

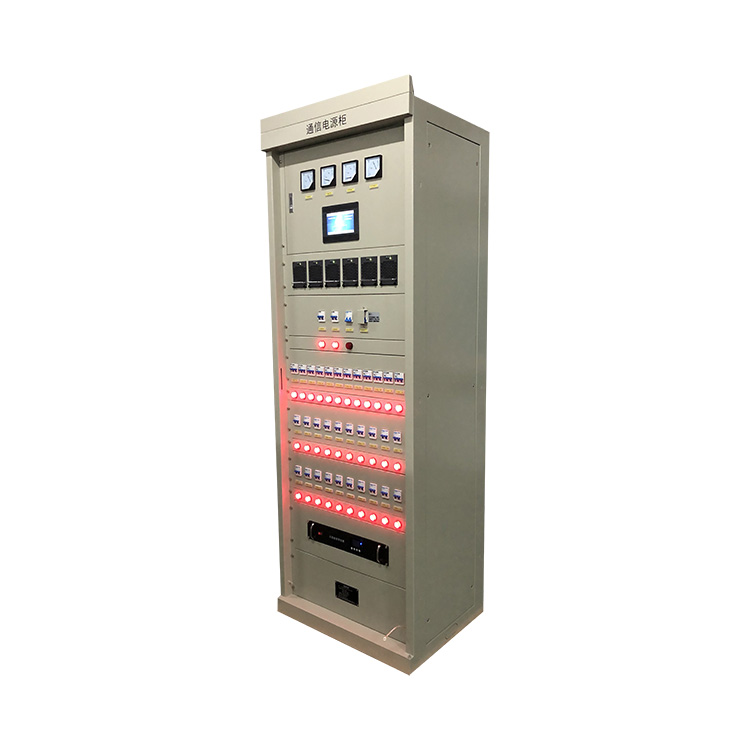

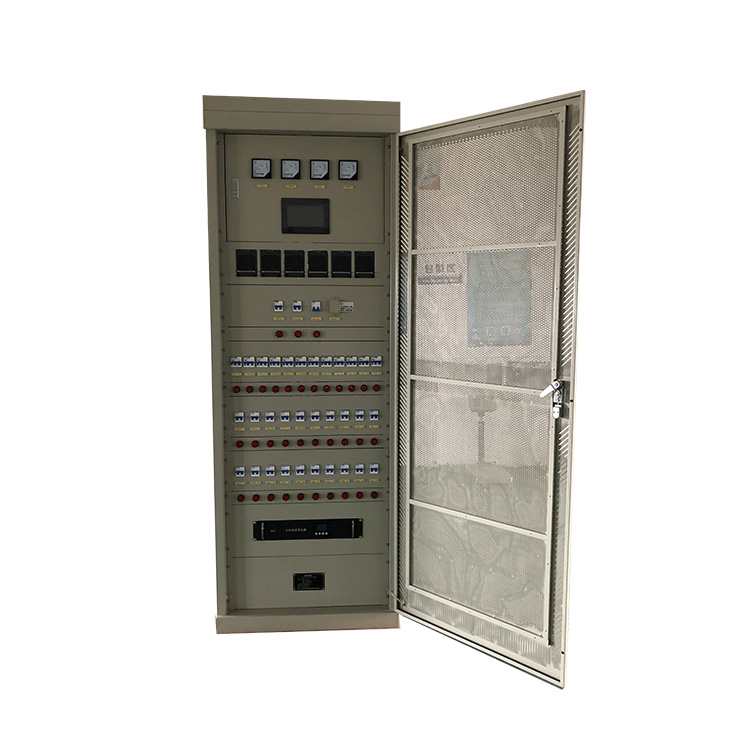

Network Cabinet Strong rack inside to be equipped with telecom equipments, power source, battery, and other attachments.
Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
Network Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
Protection level IP45.
Support custom-made.
| No. | Specification Item | Technical Parameters |
|---|---|---|
| 1 | cabinet inner size | H*W*D 2000*800*600mm ,internal capacity:19"*42U |
| 2 | Internal capacity | 42U, 19/21 inch adjustable rack |
| 3 | Material | left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness 45mm,insulation cotton material is PEF |
| 4 | Material | Galvanized iron (Optional: Aluminum, stainless steel, SPCC cold-rolled steel) |
| 5 | cabinet base | 150mm H,thickness 2.0mm |
| 6 | cable entry | under bottom in and out Φ50*5 |
| 7 | security design | Embedded door, embedded hinges, 3-point security lock |
| 8 | protection level | IP45 |
The cabinet is fabricated using high-quality galvanized iron (with options for aluminum, stainless steel, or SPCC cold-rolled steel). The left, right, and back panels are color steel plates, integrated with 45mm thick PEF insulation cotton for superior thermal insulation.
Yes. The network cabinet supports custom-made sizes and layouts. The standard model features an adjustable 19/21-inch rack with a large 42U capacity, allowing you to configure the spacing according to your specific hardware needs.
Security is guaranteed by an embedded door design with embedded hinges and a robust 3-point security lock system. This construction prevents external tampering and protects sensitive network equipment.
This telecom network cabinet features an IP45 protection level, which prevents the entry of solid objects greater than 1mm and protects internal components from water splashes, ensuring safe operation indoors.
It includes an improved thermal design that supports real-time digital display of temperature settings, temperature alarms, and parameters from both inside and outside the cabinet. This high-efficiency energy-saving setup extends battery and electronics lifespan.
The cabinet is equipped with a dedicated bottom cable entry system (featuring Φ50*5 openings) to allow neat, organized, and secure cable management from underneath.
