| Product name | 5000w power |
| Voltage Precision(V) | 230±1.5% |
| Frequency Precision(Hz) | 50±0.1% |
| Power Factor(PF) | 0.8/0.75 |
| Overload | 120%, 30 sec |
| Transfer Time(ms) | ≤5ms |
| Isolation(IN/OUT) | 1500Vac, 1 minute |
| Noise | ≤40dB |
| Temperature | -25°C ~ +50°C |
| Humidity | 0~90% |

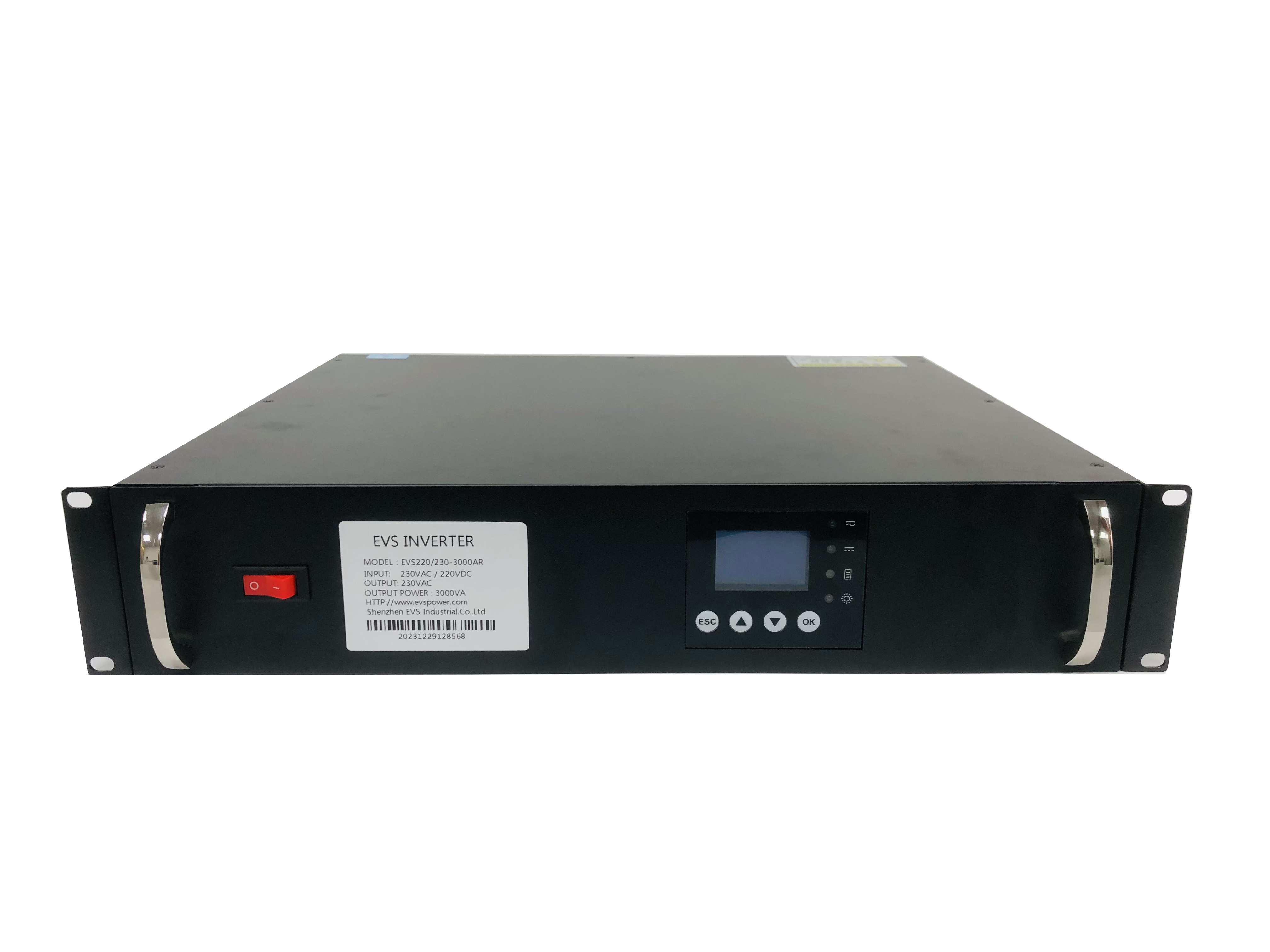

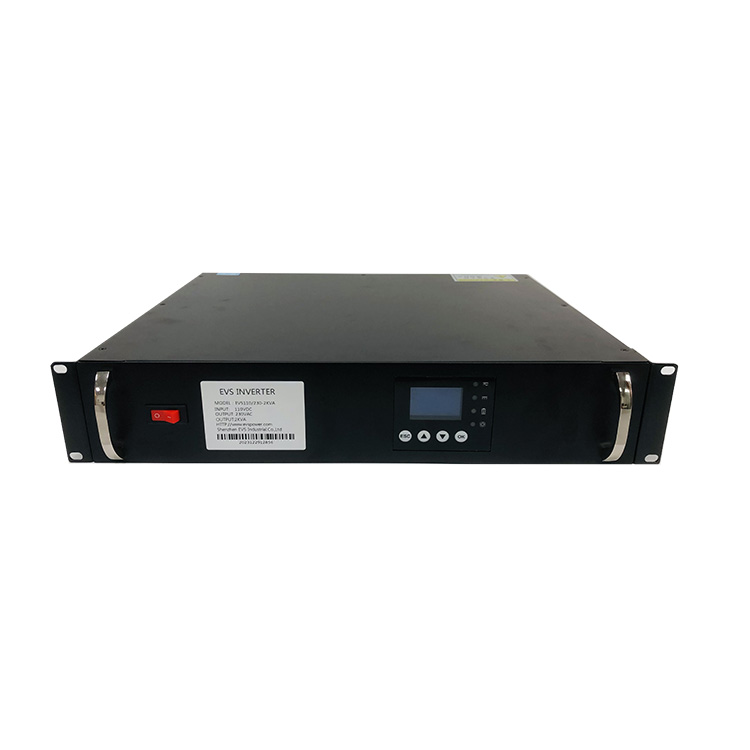

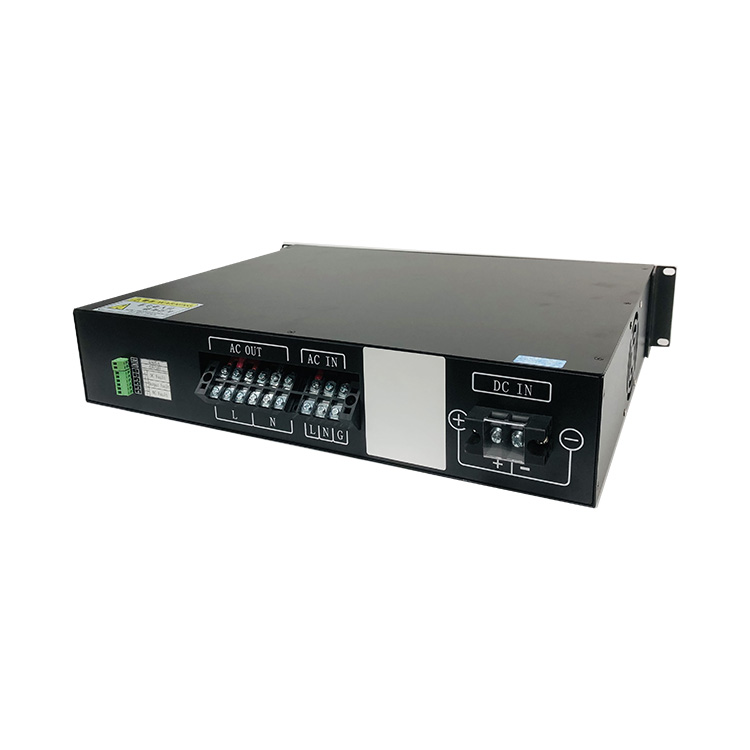

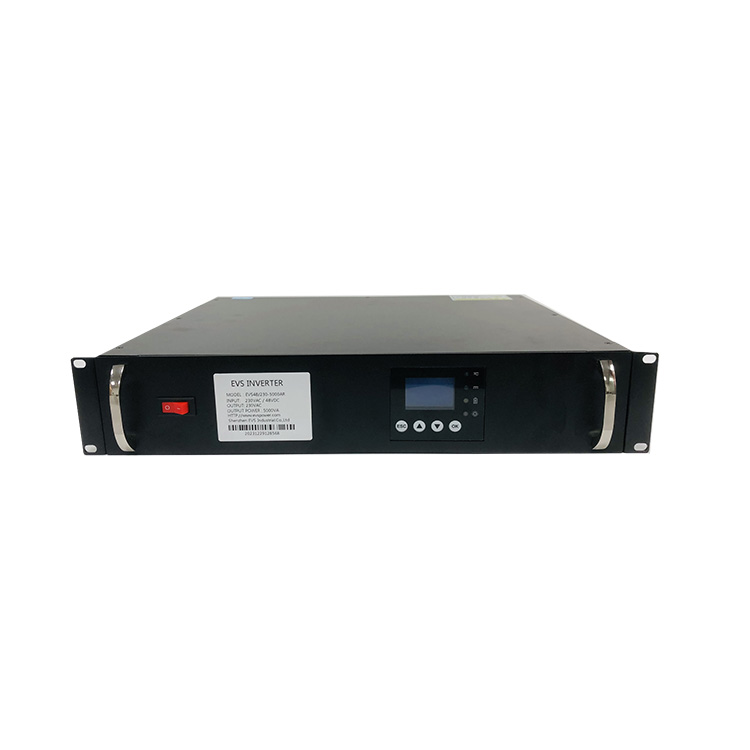

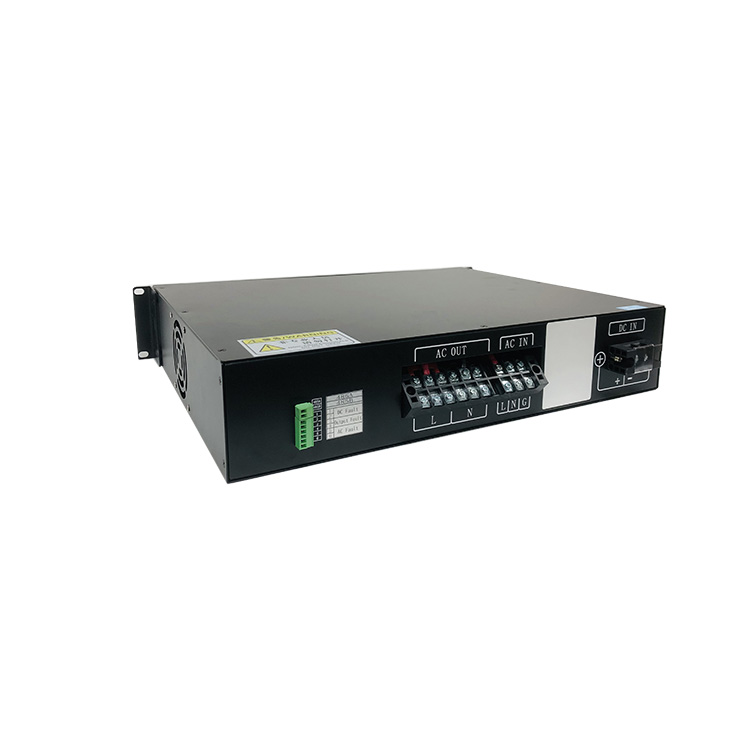

This inverter has a rated output capacity of 5000W (5kW), specifically designed to convert generated hydro power and feed it directly into the grid structure.
The system features excellent grid-matching precision, with a voltage precision of 230V ±1.5% and a frequency precision of 50Hz ±0.1% to ensure optimal synchronization.
Yes, the inverter has a swift transfer time of ≤5ms. It is built to handle temporary load spikes, supporting an overload capacity of 120% for up to 30 seconds.
The inverter operates efficiently in ambient temperatures ranging from -25°C to +50°C and relative humidity levels between 0% and 90%.
No, the unit features an optimized quiet design. The operating noise level is kept extremely low at ≤40dB, making it suitable for installations near residential spaces.
It implements high-level input-to-output physical isolation tested at 1500Vac for 1 minute to protect both the generating equipment and the connected grid.
