Our Products
Single-phase AC input, high power density, high reliability design, and cost-effective, RS485 communication protocol and built-in Modbus standard protocol.

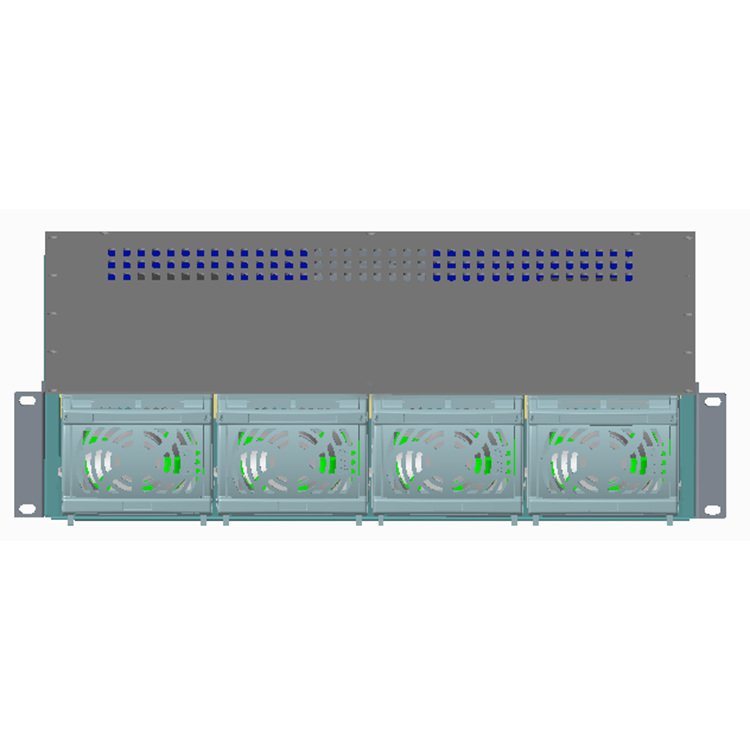

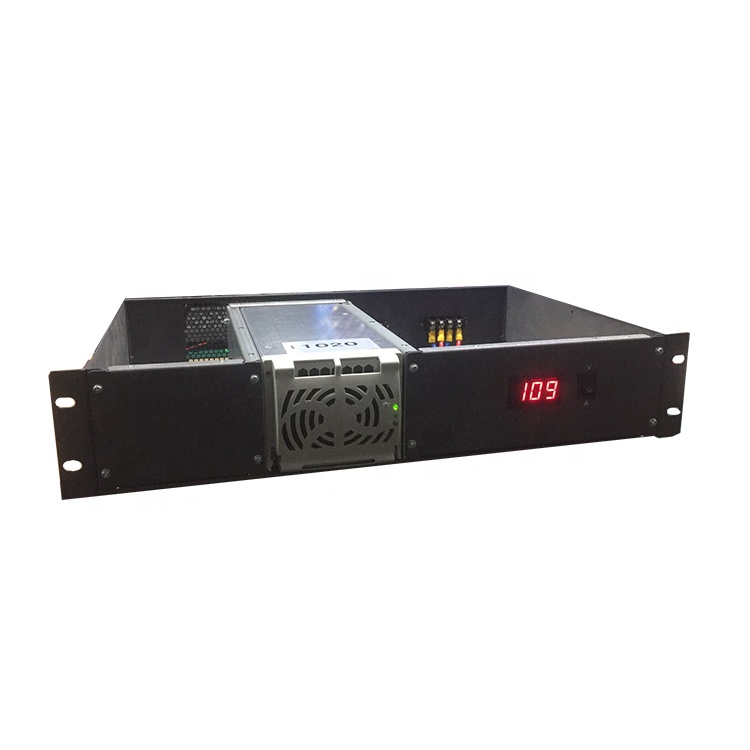

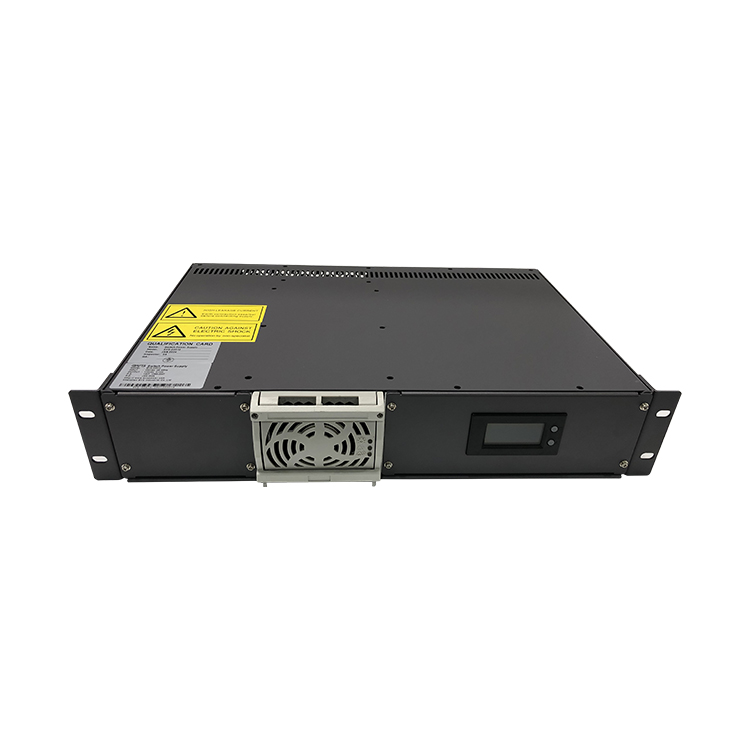

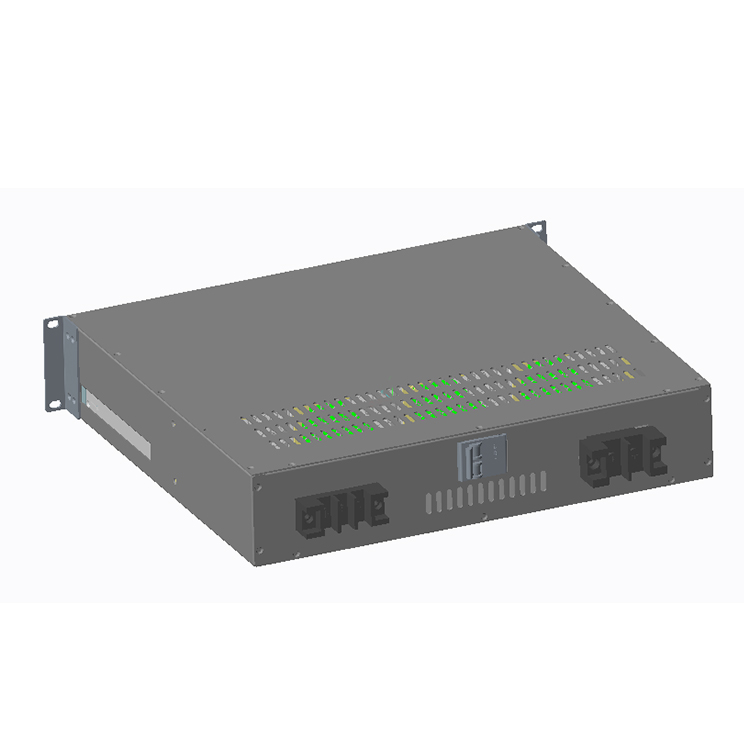

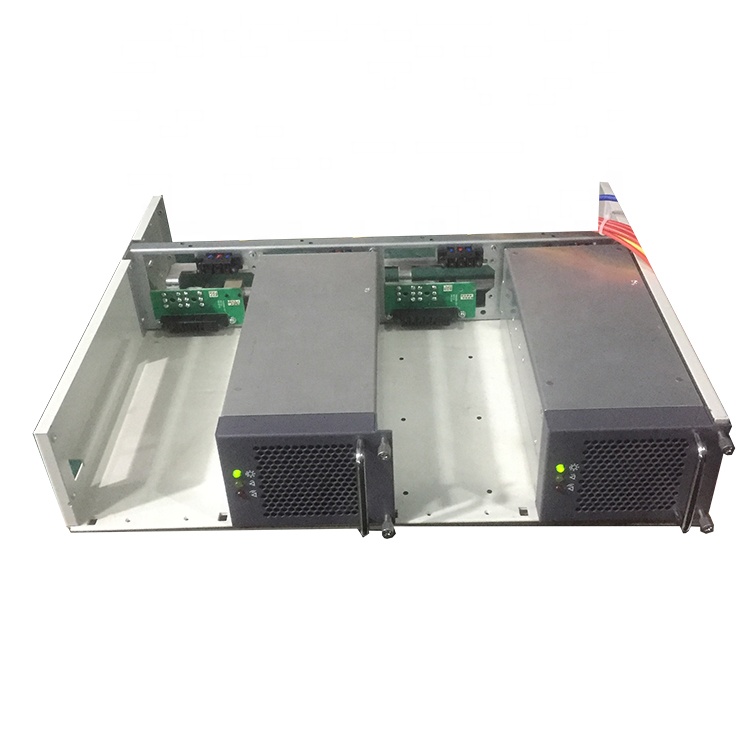

230V AC to 110V DC Power Supply Specifications:
Input Voltage: 220VAC
Output Voltage: 110Vdc 20A
Output Power: 2900W (176VAC ~ 264VAC Input) / 1200W (90VAC ~ 175VAC Input)
-
✔
Rectifier module adopts active power factor compensation technology, power factor up to 0.98.
-
✔
AC input voltage of normal operating range as wide as 90 ~ 280VAC.
-
✔
Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.
-
✔
Hot swappable type operation.
-
✔
Each individual rectifier module can operate independently; N+1 redundancy backup supported.
-
✔
AC/DC distribution system for AC input/DC output distribution and protection; Pluggable way.
-
✔
Protections: short circuit, overload, battery over/under voltage protection.
-
✔
Lowers internal component temperatures via forced air cooling, improving reliability and module efficiency.
-
✔
Charging module intelligent control, provides data communication interface.
Frequently Asked Questions
Why choose our products?
We offer high-quality power solutions and dedicated services. Building win-win businesses is our main core principle.
Are you a factory or trading company?
Yes, we are a professional manufacturer supplying OEM/ODM custom services based on requirements.
Can you design and open new molds based on customer requests?
Yes, we have custom capabilities to develop molds and modify system specifications in accordance with custom requirements.
What is your after-sales service policy?
We provide a one-year guarantee period. 0.3% spare parts will be shipped alongside your order, and we support exchange solutions in case of quality issues.
What payment and logistics methods are supported?
We accept L/C, T/T, Western Union, MoneyGram, and PayPal. Shipping options include sea freight and air express services such as DHL, UPS, FEDEX, TNT, and EMS.
Are samples available for testing?
Yes, sample orders are available and can be shipped out promptly to support evaluation.
