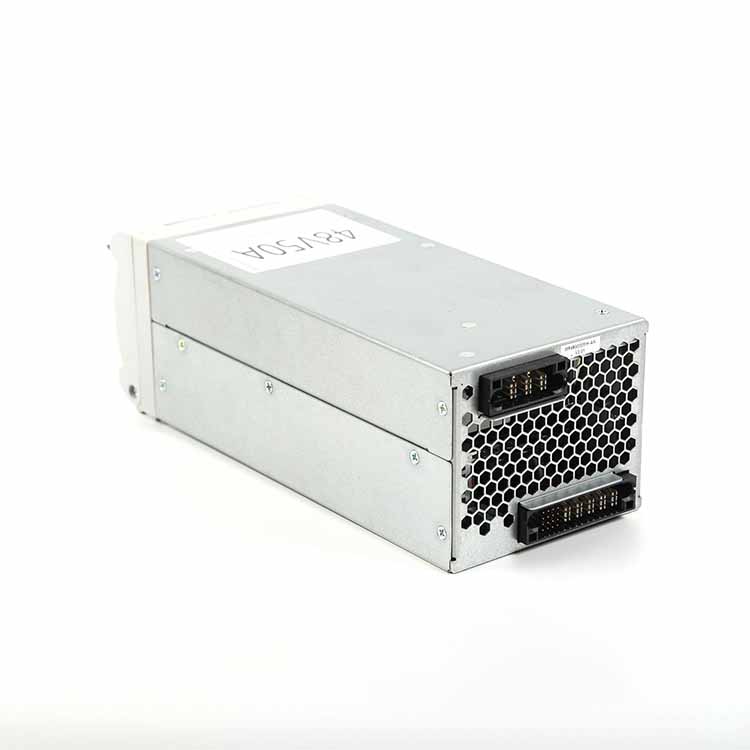

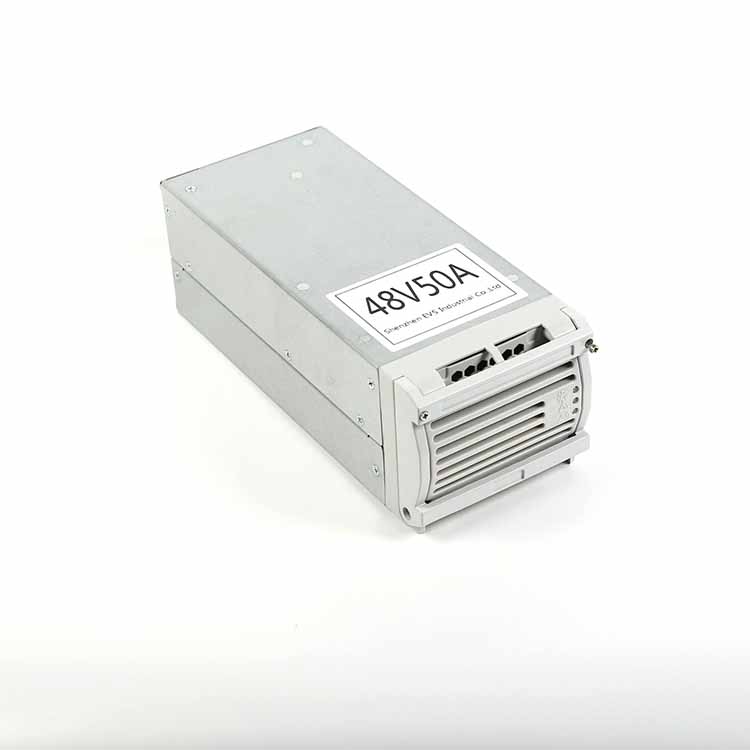

EVS2U-4850A 48V 50A AC-DC Rectifier Module 3000W Single Output Industrial DC Power Supply 50/60Hz 110V Input

Product Description

Our products
Single-phase AC input, high power density, high reliability design, and costeffective, RS485 communication protocol and built-in Modubus standard protocol.
Features with the following specifications:
  • Rectifier module adopts active power factor compensation technology, power factor up to 0.98
  • AC input voltage of normal operating range as wide as 80 ~ 300VAC
  • Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 95%
  • Hot swappable type operation
  • Each individual rectifier module can be capable of operating independently; N+1 (Can be backed up)
  • AC /DC distribution system for AC input/ DC output distribution and protection; Pluggable way
  • Protections: short road, over load, battery over/under voltage protection
  • Can low the temperature of the inner components through the inforced air cooling design by improving the reliability and the efficiency of the module
  • Charging module intelligent control, provides data communication interface

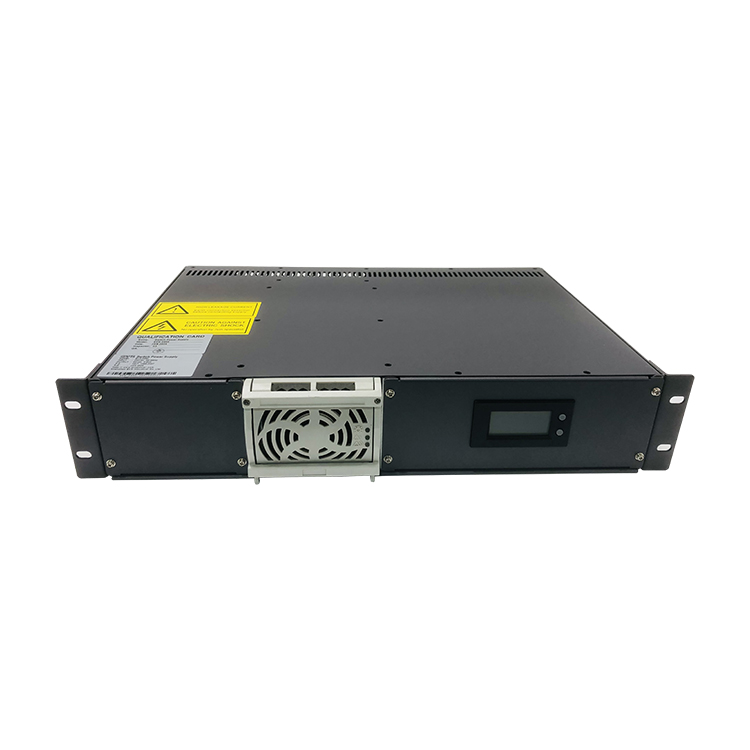

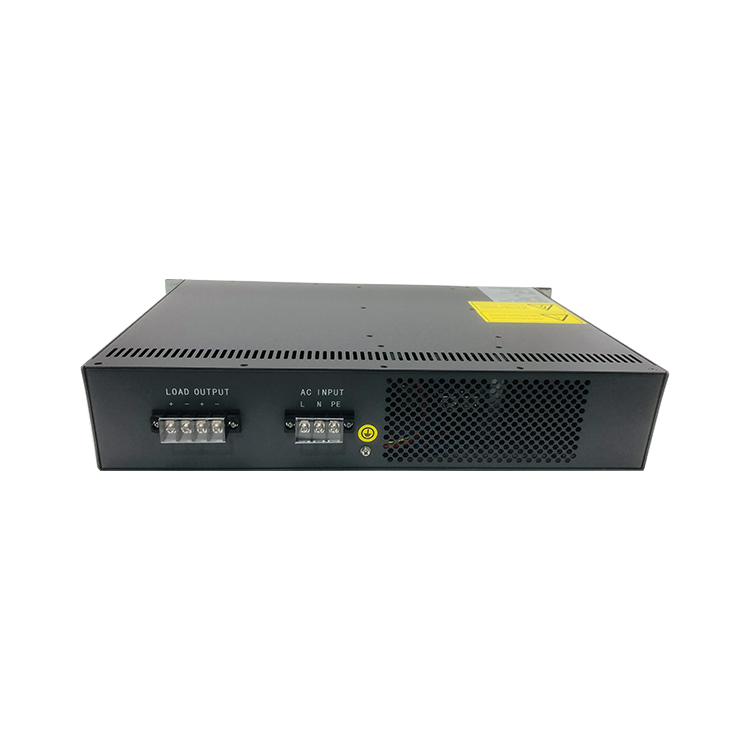

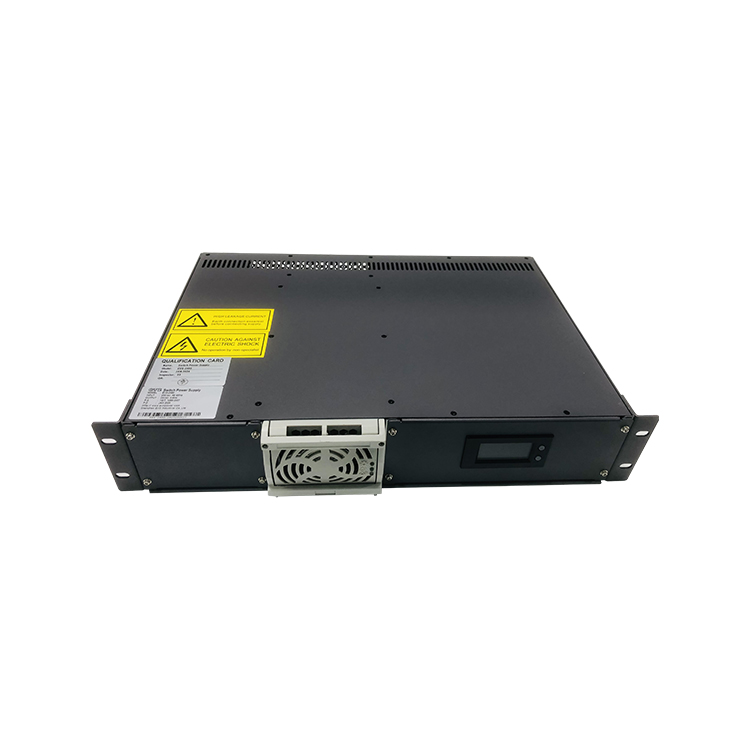

Modular rack rectifier system
Input voltage: 220VAC
Output voltage: 48V50A / 110Vdc20A / 220V10A
Output power: 2900W (176VAC~264VAC Input) / 1200W (90VAC~175VAC Input)
AC-DC Rectifier Module Single Output Industrial DC Power Supply
DC Power system performance index input
Parameter Min. Rated Max. Unit Note
Rated voltage range - 110/220 - Vac -
Input voltage range 90 220 264 Vac Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency 45 50 65 Hz -
Power Factor - - - - ≥0.98 @ 220VAC @ 117V / 20A
DC Power system performance index output
Parameter Min. Rated Max. Unit Note
Output voltage range - 48 - Vdc 53.5VDC, 42~58V adjustable
Output current range (max. current) 0 - 50 A Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.
Current Sharing - ±5% - - -
Output Protection - - - - Over voltage protection, Under voltage protection, Over temperature protection, Hot-swappable Internal failure isolated diode, Short circuit protection
